HDMI cables

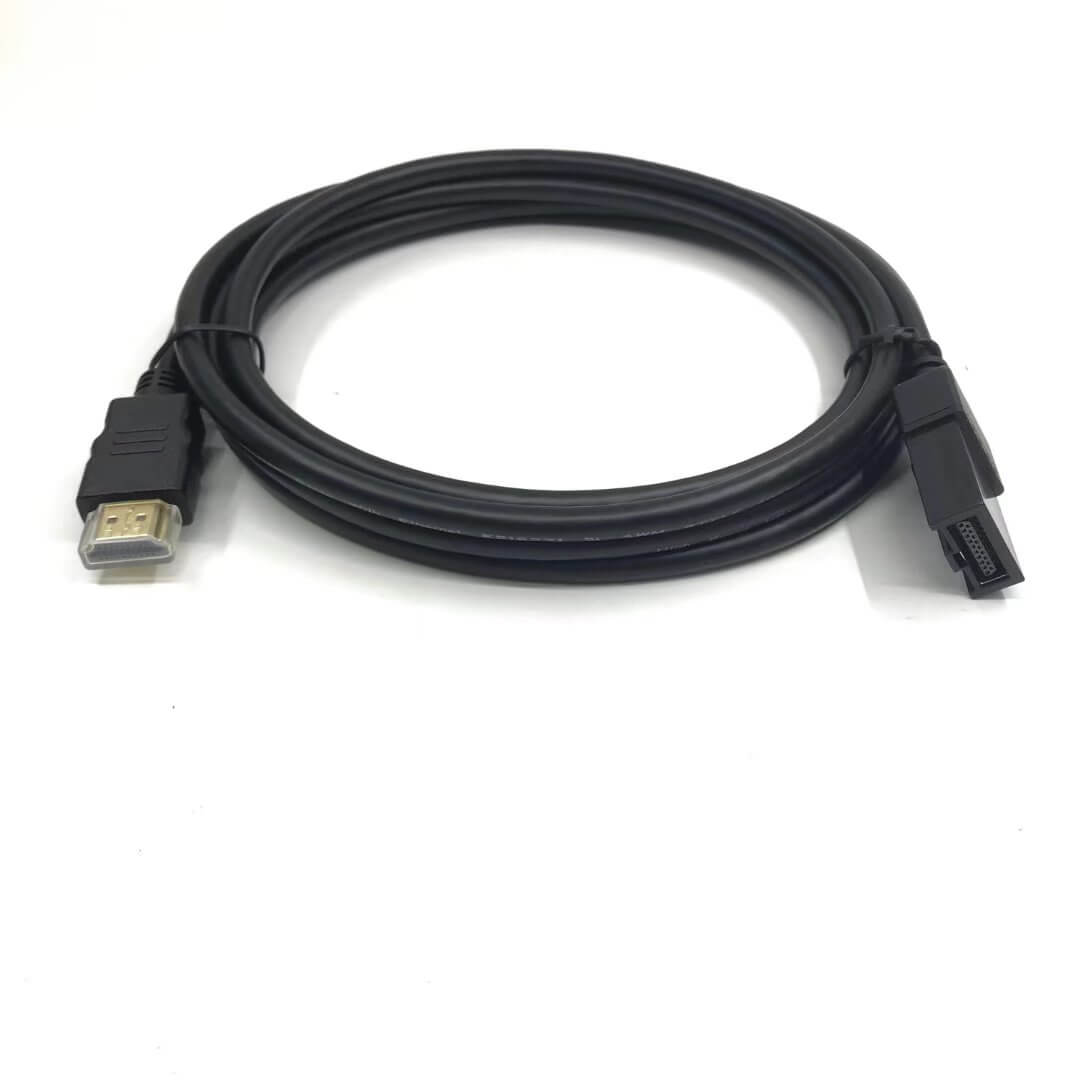

Car HDMI E Type Cable HDMI Type-A To Type-E Extension Cable
- Product ID：HDMI cables
- Skype：+86 137 5185 9234
- Phone: +86 137 5185 9234
- Tel: +86 137 5185 9234
- Email: sales2@gh-electronics.com
- Time: 2021-09-24
-
INQUIRY
|
Place of Origin: Guangdong, China |
Brand Name: GuangHui Electronics / OEM |
|
Outer mold: 45P PVC Black |
Application: TV, Computer,Set-top boxes, laptops, projectors, monitors |
|
Inner mold: LD PE NATURE |

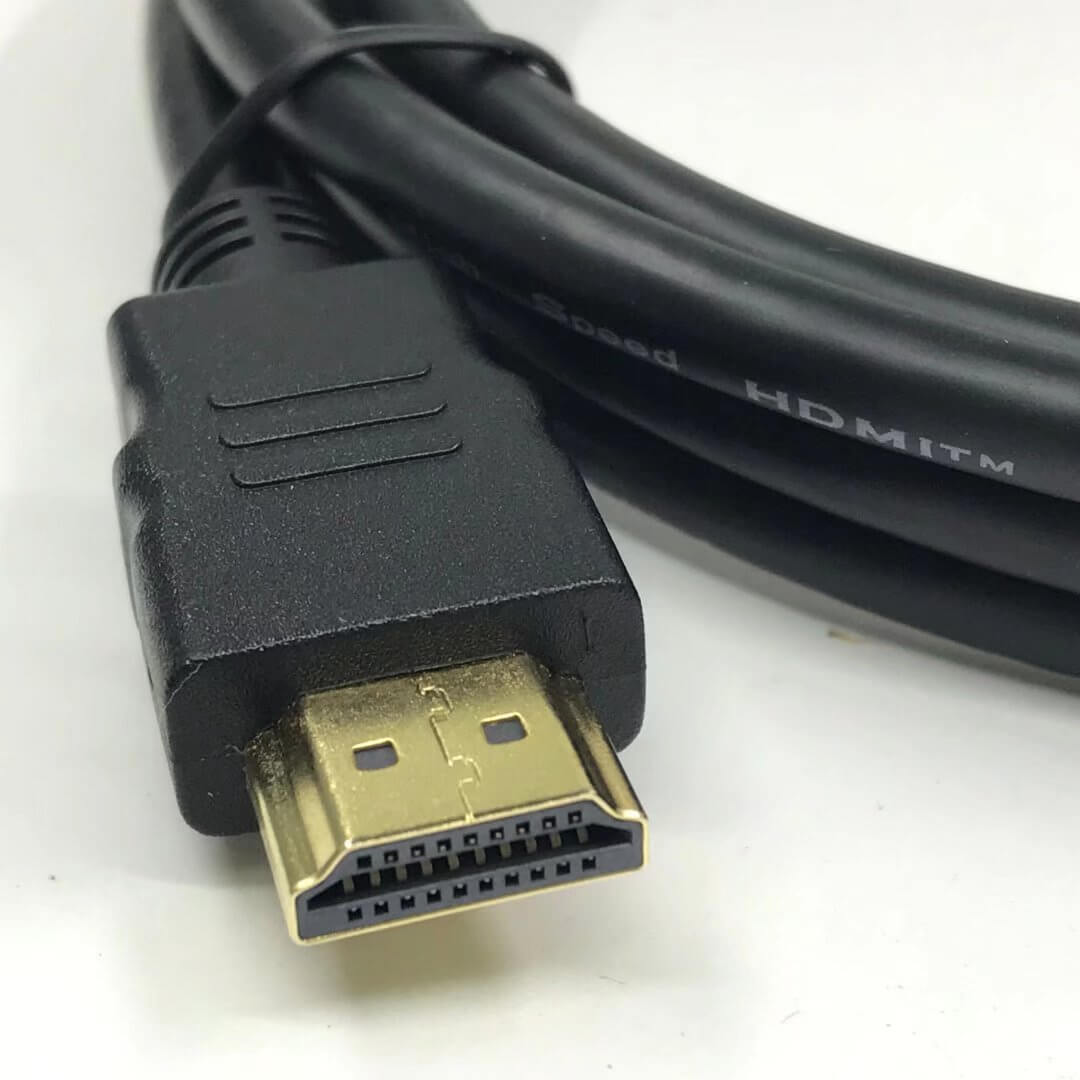

Connector A: HDMI Type-A Male Contacts G/F Shell G-F With Ring Welds |
|
Copper Foil: 18U`` Copper Foil |

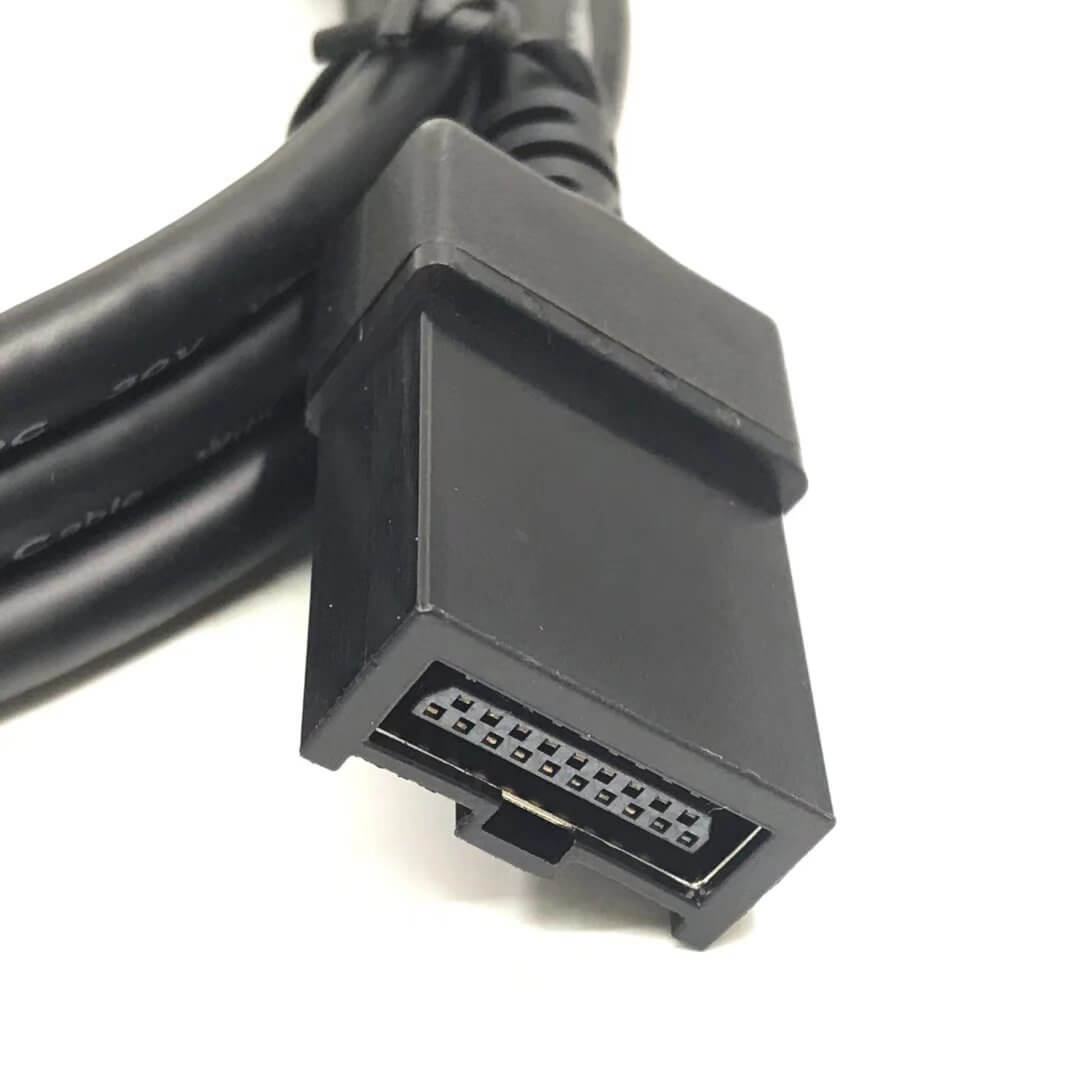

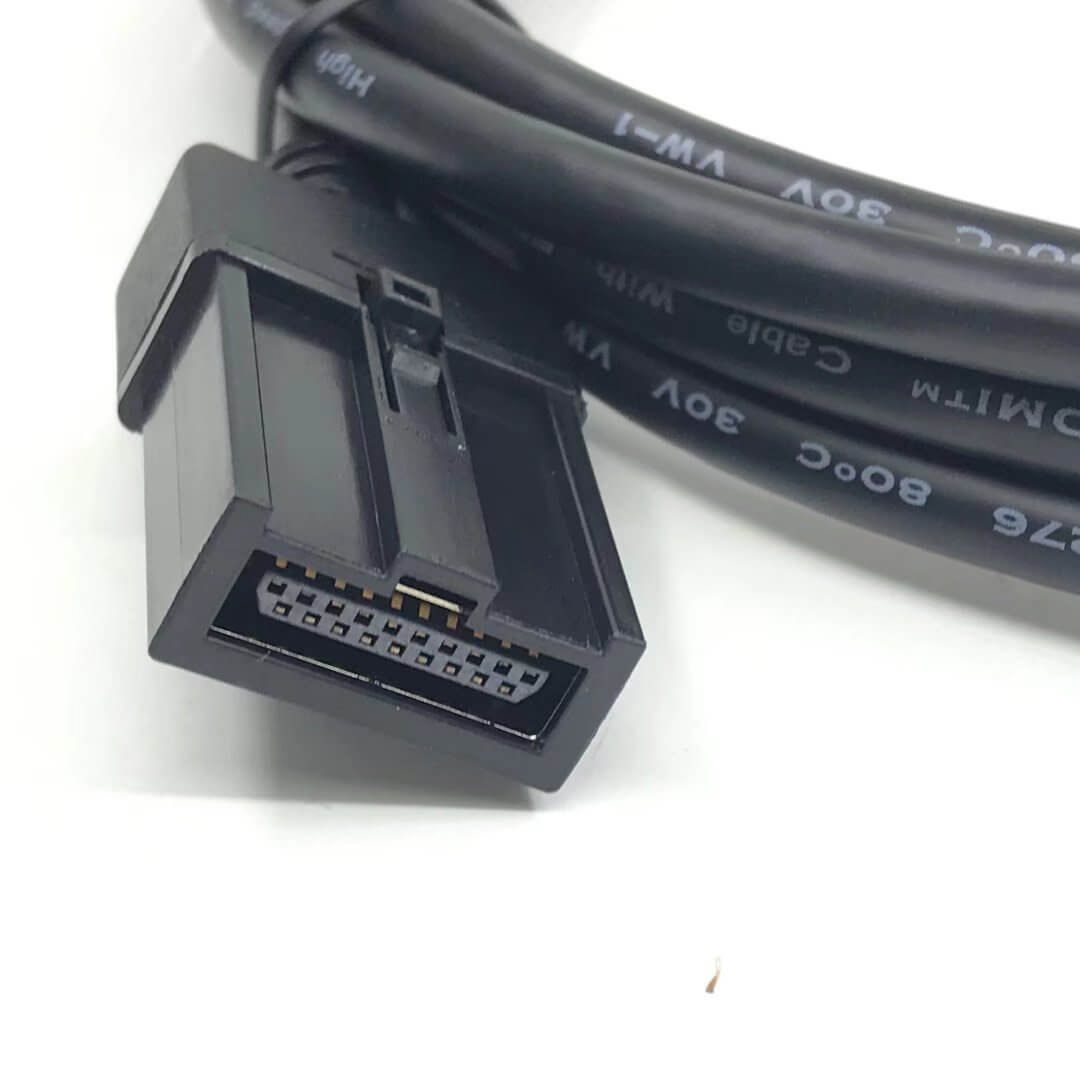

Connector B: HDMI Type-E Male With Metal Shell And Black Cover |
|
Cable length: 1.8Meter / Optional |
Cable spec: HDMI Cable UL20276( 30AWG*1P+D+AL+MYLAR )*5PCS+30AWG*4C+AL Foil+Drain+Braid( 16/6/0.10ALMG ), Black, PVC, OD:6.0+-0.2MM OD:6.0+-0.2MM |
|
Certification: UL, RoHS, CE, |
Conductor Material: Copper |
|
Samples: available |
MOQ: 100PCS |
The car hdmi interface is mainly used for external devices. The previous car external connection was mainly U disk and AUX interface to play audio such as mobile phones. Now equipped with HDMI interface, HDMI can transmit video and audio at the same time, which is convenient for external audio and video signal sources.
The car hdmi interface can be connected to a mobile phone
You can use the wired and wireless same-screen devices to synchronize the content of the mobile phone to the car's audio-visual system, which is generally the LCD screen of the center console. What is displayed on the mobile phone can also be displayed on the center console of the car. What kind of content, such as mobile phone navigation, video on the phone, etc.
The car hdmi interface can also be connected to other devices
In the same way as above, if only the HDMI port on the vehicle is the input port, then you can connect a computer with HDMI high-definition port, video camera, etc.
