Place of Origin: Guangdong, China |
Brand Name: GuangHui Electornics / OEM |
|
Outer mold: 45P PVC Black |
Application: audio cables |
|
Inner mold: PE Natural |

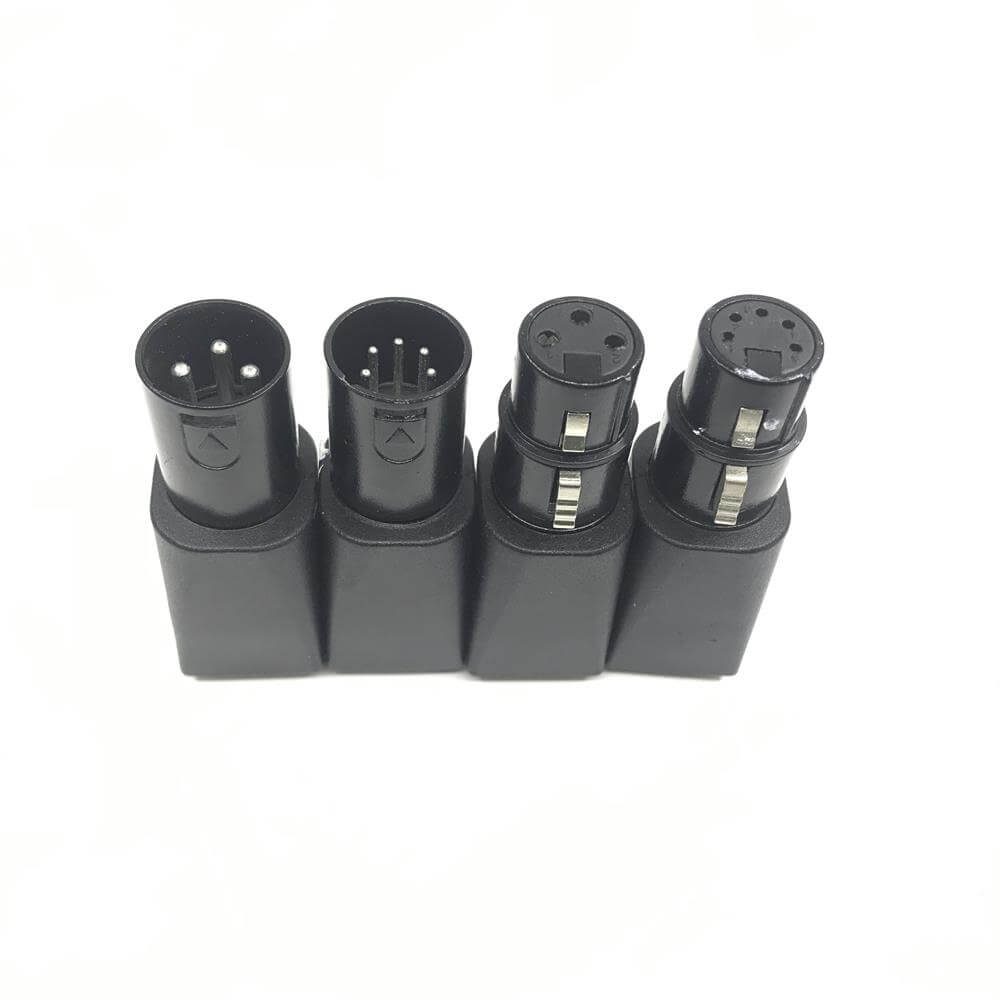

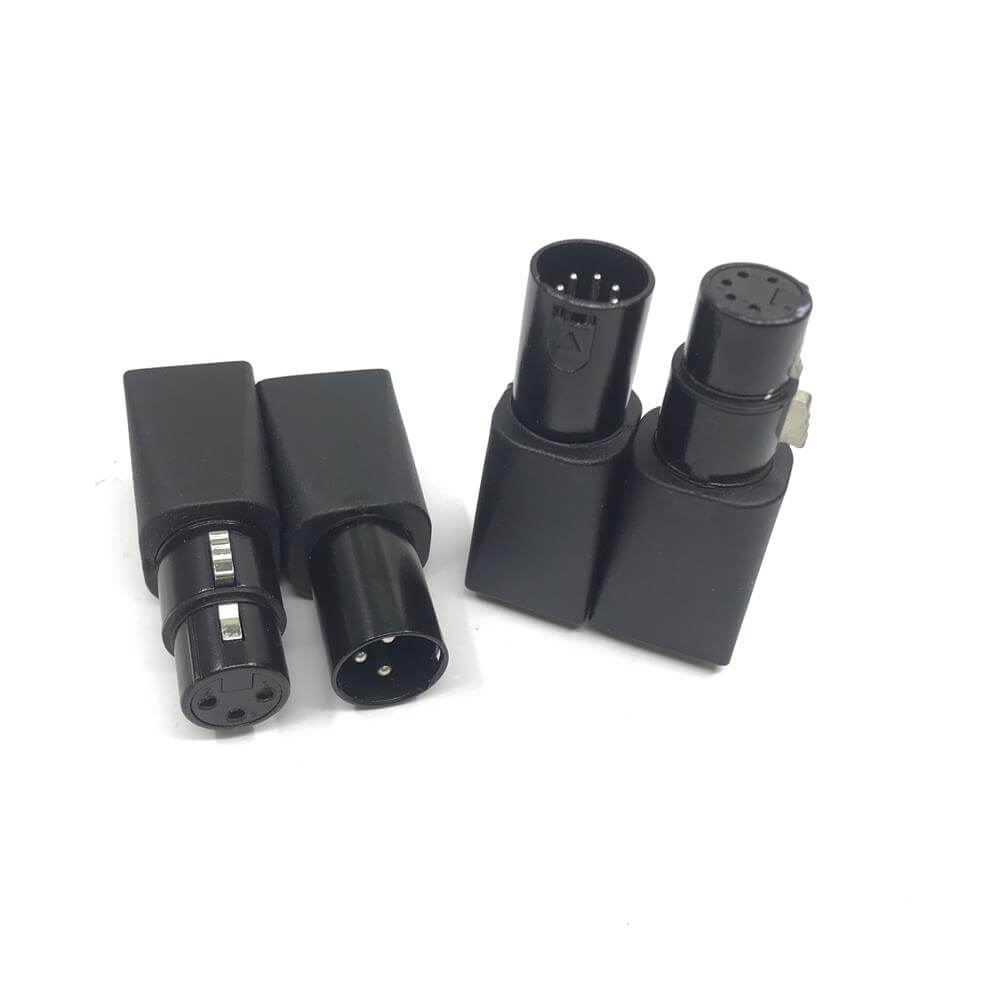

Connector A: 3pin/5pin xlr connector male/female |
|
Color: Black |

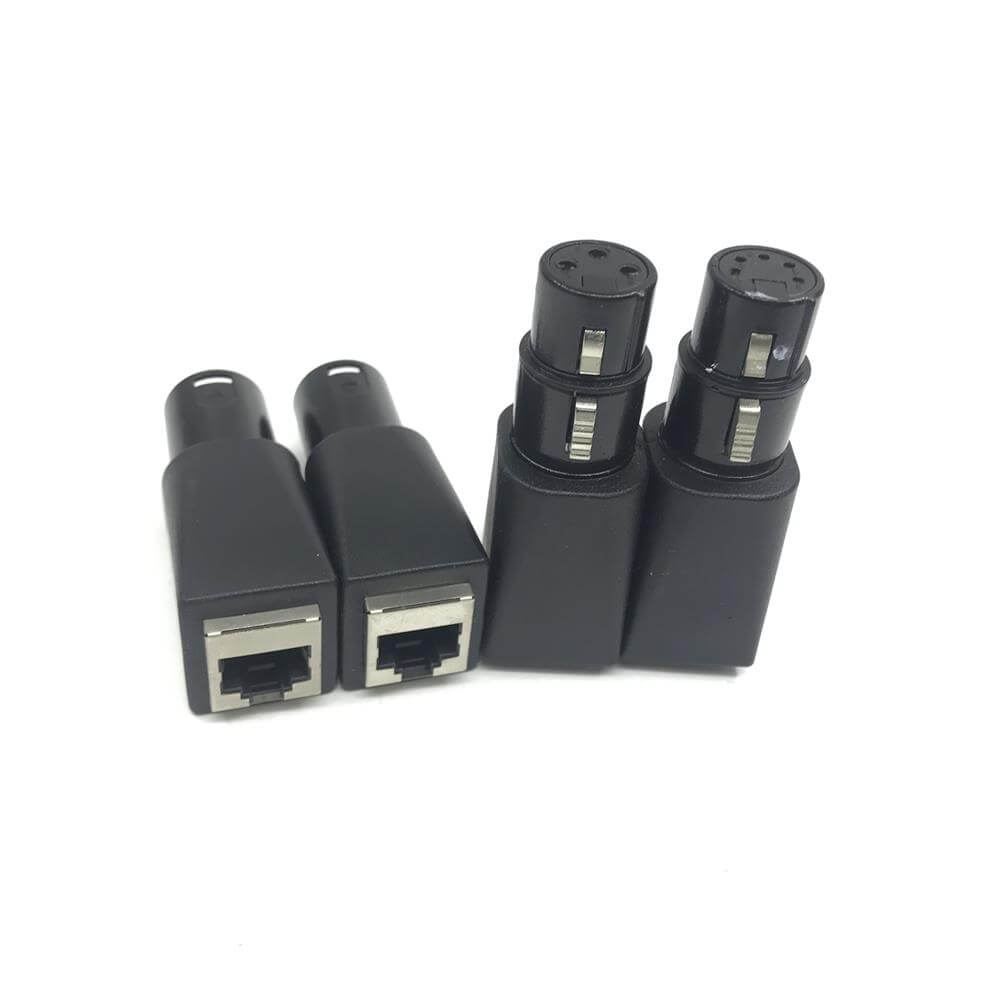

Connector B: RJ45 8P8C G/F |
|
Wire1: UL1007 24AWG Any color 25mm |
Wire2: UL1007 24AWG Any color 30mm |
|
Certification: RoHS, CE, |
Conductor Material: Copper |
|
Samples: available |
MOQ: 500pcs |
Product Introduction
Our custom-designed RJ45 connectors, paired with 5Pin/3Pin XLR plugs to RJ45 interfaces, are engineered to deliver reliable signal transmission for professional audio, data, and industrial control systems. Meticulously crafted to meet rigorous performance standards, this adapter cable bridges XLR-equipped devices (microphones, mixers, stage lighting) with RJ45-based networks, ensuring seamless connectivity without signal degradation. Whether for live performances, studio setups, or industrial automation, it serves as a tailored solution to integrate diverse equipment into a unified system.
Core Specifications & Performance Advantages
|
Specification
|
Details
|
|
Connector Type
|
5Pin/3Pin XLR Plug (male/female optional) to RJ45 Connector (CAT5e/CAT6 compatible)
|
|
Conductor Material
|
Oxygen-Free Copper (OFC) for low resistance and anti-interference
|
|
Shielding
|
Braided/foil shielding (customizable) to reduce EMI/RFI interference
|
|
Jacket Material
|
PVC/TPE/silicone (weatherproof option available for outdoor use)
|
|
Operating Temperature
|
-20℃ to 70℃, suitable for harsh environments
|
Beyond standard specs, the cable features reinforced strain relief at connectors to withstand repeated insertion/extraction and mechanical stress. It supports high-speed data and balanced audio transmission, making it compatible with both audio equipment and industrial control devices.
Custom Wiring Harness Capabilities
As a leading manufacturer of custom wiring solutions, we excel in tailoring RJ45-XLR adapter cables and harnesses to meet your unique project requirements. Our engineering team works closely with clients to refine every detail, turning conceptual needs into high-performance products. Our customization scope includes:
>> Connector Customization: Adjust XLR pin counts (3Pin/5Pin/7Pin), RJ45 grades (CAT5e/CAT6/CAT7), and gender configurations (male/female) to match device interfaces. We also support specialized connectors (locking RJ45, waterproof XLR) for niche scenarios.
>> Cable & Material Tuning: Customize cable length (0.5m to 50m+), shielding type (single/double shielding), jacket color, and material (flame-retardant, low-smoke zero-halogen for industrial use).
>> Function & Performance Optimization: Design for specific use cases—such as balanced audio transmission, PoE (Power over Ethernet) integration, or industrial control signal delivery—with compliance to international standards (UL, RoHS, CE).
>> Branding & Packaging: Add custom logos, laser marking on connectors, and branded packaging to align with your corporate identity.
Our streamlined process covers rapid prototyping, rigorous performance testing (continuity, insulation, signal integrity), and scalable mass production, ensuring on-time delivery of consistent, reliable products.
Application Fields
This custom adapter cable is widely applicable across professional and industrial scenarios, including:
>> Audio & Entertainment: Connect microphones, mixers, and stage lighting (DMX systems) to RJ45-based control networks in concerts, theaters, and broadcast studios.
>> Industrial Automation: Integrate XLR-equipped sensors, controllers, and actuators into RJ45 industrial Ethernet systems for factory automation.
>> Security & Surveillance: Link XLR audio devices (microphones) with RJ45 IP camera systems for synchronized audio-video monitoring.
>> Commercial Installations: Custom lengths and configurations for hotels, conference centers, and auditoriums to build integrated AV networks.
Why Partner With Us?
With years of expertise in custom wiring harness design and manufacturing, we stand out as a trusted partner for businesses worldwide:
>> Technical Proficiency: Engineers specializing in audio/data transmission and industrial connectivity, capable of solving complex integration challenges.
>> Strict Quality Control: Full-process QA testing to ensure each cable meets performance and durability requirements.
>> Flexible Production: Support for small-batch prototypes (10-100 units) and large-scale orders (100,000+ units) with competitive pricing.
>> Global Compliance: Products adhere to international standards, facilitating market access in Europe, North America, and Asia.
