DIN cable assemblies are mainstream circular connection wires widely used in precision signal control and low‑power equipment connection. Unlike generic off‑the‑shelf cables, these circular connections deliver steady transmission performance, good environmental tolerance and flexible structural options. They are widely adopted for musical instruments, smart home hardware, industrial testers and onboard systems. When standard stock parts cannot fit unique mechanical layouts, custom‑built DIN solutions fill this gap perfectly.
Classified by connector dimension, pin layout and application purpose, four major variants cover most commercial and industrial project requirements.
1. Compact Mini DIN Signal Cable
Boasting compact connector footprint, this variant uses 4P / 6P pin layouts. It handles precise signal transfer within confined device enclosures, frequently seen on smart home control modules, industrial panel serial interfaces and compact test instruments where space saving is critical.

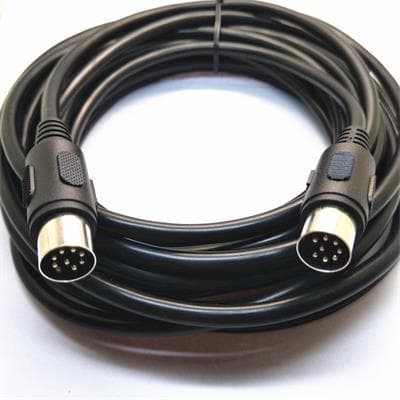

2. Large DIN MIDI Instrument Harness
Available in 6‑pin and 8‑pin configurations, this variant is tuned for clean MIDI communication. It acts as dedicated interconnect for digital pianos, electronic keyboards and external foot pedals, minimising signal lag and cross‑interference during device interaction.

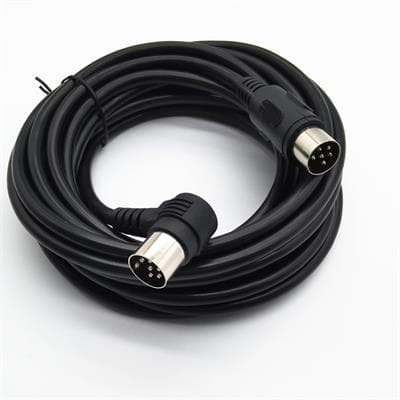

3. Angle‑Changed DIN Extension Wire
Unlike straight cable versions, 90‑degree angled connectors resolve wiring dead‑spots for flush‑mount installation. The elbow design relieves cable stress from squeezing and repeated bending, ideal for cabinet‑embedded routing and hidden internal wiring inside instruments.

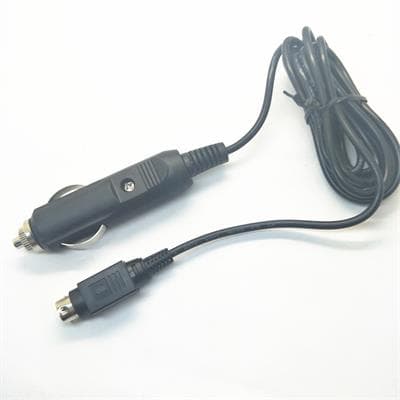

4. Vehicle‑Grade Power DIN Harness
Purpose‑built for 12‑volt onboard power networks, this power‑oriented variant pairs with standard car cigarette lighter sockets. Built to resist ageing and vibration plus built‑in overcurrent protection, it supplies reliable power for RV accessories, onboard monitors and field portable equipment.
Core Functional Advantages
✅Each variant serves distinct use‑cases, yet they all address real‑world hardware connection pain‑points:
✅Precision Anti‑Interference Transmission: Integrated shielding blocks electromagnetic noise, preserving clean control and MIDI signal quality.
✅Enhanced Structural Durability: One‑piece overmolding and strain‑relief absorb stress from constant vibration, plug‑unplug cycles and bending to lower hardware failure risk.
✅Wide Application Adaptability: By adjusting conductor cross‑section and mechanical build, these circular interconnects cover use‑cases ranging from tiny signal transfer all the way to vehicle power delivery.
Main Industry Application Scenarios
Use‑cases vary sharply across product lines: large‑format DIN dominates musical gear, compact Mini DIN fits industrial & smart‑device controls, and power‑focused variants serve automotive auxiliary hardware. End applications include stage audio setups, home automation systems, factory test benches and outdoor portable power equipment.
Our Custom DIN Cable Assembly Manufacturing Strength
Pre‑manufactured stock cables carry fixed specs, often unable to satisfy special mechanical layouts, custom pin‑out or limited installation clearance. As an experienced wiring‑harness manufacturer, we deliver full‑tailored development across the full DIN product family.
Customisable items include non‑standard pin mapping, special cable length, angled connector conversion, upgraded wire gauge and bespoke overmold geometry based on customer drawings or physical samples. We support small‑batch prototype validation alongside mass production, delivering end‑to‑end interconnect solutions for global industrial and smart‑equipment clients.
Explore our full range of
DIN wiring harness products to view in‑stock options or develop custom interconnects matching your project requirements.
