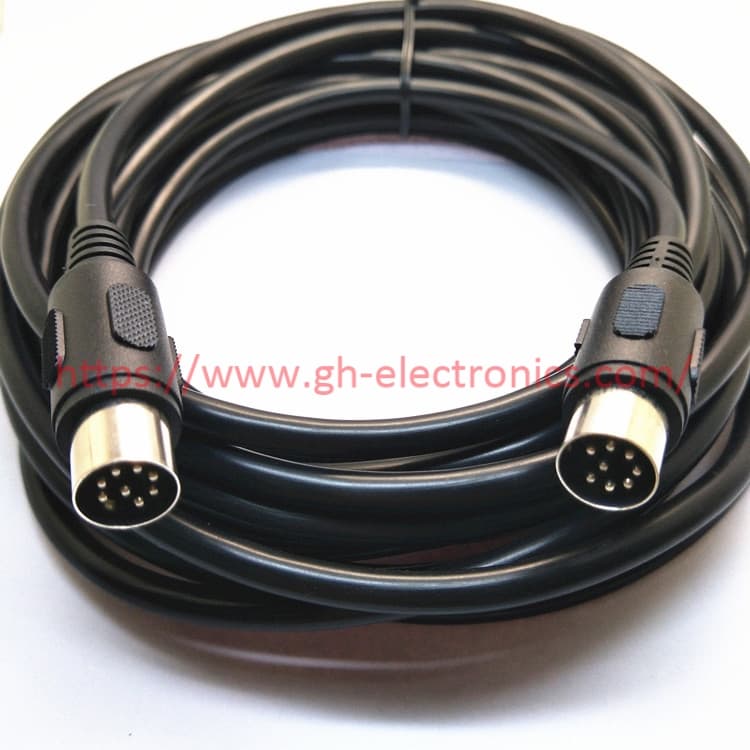

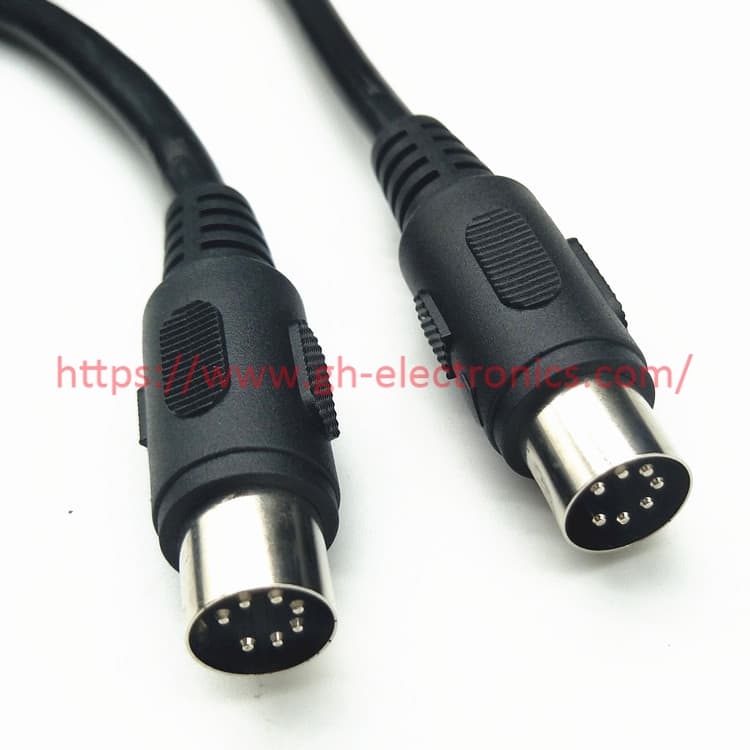

This 8‑core large DIN male‑to‑male signal cable is built for musical instrument MIDI signal transmission. As a professional musical equipment wiring harness, it delivers loss‑free signal transfer between keyboards, digital pianos and foot pedals.
Unlike generic low‑grade audio cords, this DIN8 cable adopts multi‑strand conductive core with reinforced overmolded strain relief to withstand frequent plugging and bending. Beyond standard off‑the‑shelf specifications, our factory provides full customization for special musical equipment wiring projects.
Core Product Parameters
|
Item |
Specification |
|
Connector |
Large DIN 8‑pin Male to Male |
|
Conductor |
8‑core signal wire |
|
Standard Length |
1m / 2m / 3m, custom length available |
|
Jacket Material |
Flexible PVC |
|
Application |
MIDI signal transmission for musical instrument |
|
Custom Options |
Wire gauge, pin assignment, cable length, overmolding, connector modification |
Key Features
Flexible cable jacket ensures easy routing for stage and studio setup. Integrated strain‑relief molding protects cable joints from fracture caused by frequent movement. Well‑shielded internal structure minimizes signal interference, prevents signal distortion when pedal sends control commands to main instrument unit. Plug‑and‑play design eliminates extra adapters for quick installation.
Usage & Application Scenarios
Designed for devices adopting large DIN 8‑pin interface for MIDI communication:
✅Digital piano, electronic organ, synthesizer pedal signal connection
✅Studio musical equipment signal interconnection
✅Stage performance MIDI device wiring
✅Retro musical instrument repair & replacement harness
As a 21 years professional
custom wiring harness manufacturer in China, if your project requires non‑standard pin‑out, special length or upgraded shielding for large DIN 8‑pin cables, our wiring‑harness workshop supports custom development based on your samples or technical drawings. We complete cutting, crimping, molding and full function testing in‑house for musical instrument and industrial DIN cable assembly orders.
