Din Cable Assembly

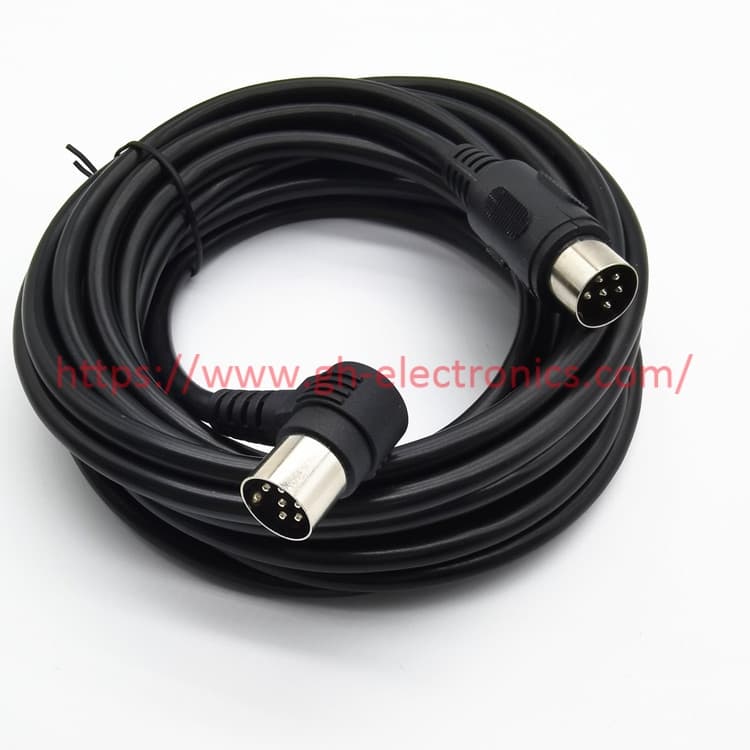

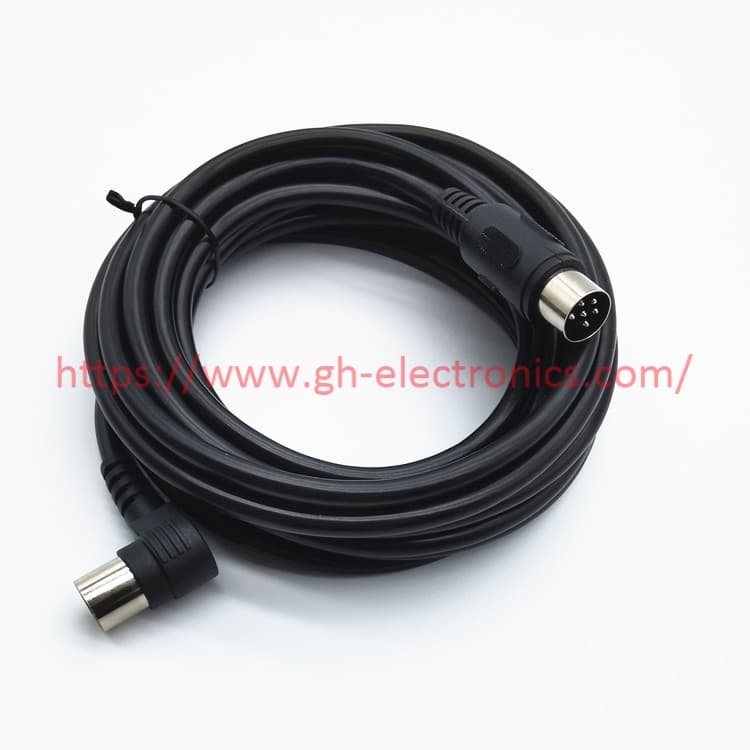

6‑Pin Large DIN Right Angle to Straight Extension Cable, MIDI DIN 6P Cord for Digital Piano Pedal & Smart Home Signal
This 6‑pin large DIN right‑angle to straight extension cable solves installation constraints in tight‑space equipment layouts. The 90‑degree angled connector avoids cable bending stress in narrow gaps, making it ideal for digital piano external pedal extension and smart home device signal interconnection.
This MIDI‑compatible DIN cable adopts high‑conductivity inner conductors and durable outer jacket, delivering stable signal transmission without signal attenuation over extended distance. Beyond standard finished cords, our factory supports full custom DIN wiring harness tailored to unique hardware layout requirements.
Core Product Parameters
|
Item |
Specification |
|
Connector |
Large DIN 6‑pin Right‑angle Male to Straight Male |
|
Conductor |
6‑core signal wire |
|
Standard Length |
2m / 3m / 5m, custom length available |
|
Jacket |
Flexible wear‑resistant PVC |
|
Application |
MIDI signal, smart home device signal transmission |
|
Custom Options |
Pin assignment, wire gauge, cable length, connector gender, overmolded strain‑relief |
Product Highlights
Right‑angle connector design saves installation space, prevents sharp cable kinks in confined cabinet or instrument interior. Integrated molded strain relief greatly improves anti‑fatigue performance during repeated movement. Well‑shielded construction reduces external interference, maintaining clean signal for pedal control commands and smart‑home data communication. Soft and pliable cable material supports neat wiring for studio, household and equipment cabinet deployment.
Application Scenarios
Optimized for space‑limited installations with large DIN 6‑pin interface:
✅Digital piano, electronic organ external foot pedal extension connection
✅Smart home control module signal interconnection
✅Vintage MIDI musical instrument repair and replacement wiring
✅Cabinet‑mount automation accessories signal transmission
Standard off‑the‑shelf cables may not match special cabinet layout or non‑standard pin‑mapping needs. Our in‑house harness workshop can build custom large DIN cable assembly according to your samples, sketches or pin‑out requirements. We handle crimping, overmolding, electrical testing for musical instrument and smart‑home wiring projects.
