Wiring Harness Quality Inspection: Full Process QC for Custom Harness Manufacturing

Introduction


Consistent product reliability starts with standardized wiring harness quality inspection. As a dedicated custom wiring harness factory, we provide one-stop OEM and ODM cable assembly services for global industrial, automotive and new energy clients. Our extensive product range covers automotive wiring harness, new energy cable assembly, industrial wiring harness, M12 sensor wiring harness, Deutsch connector harness, and PV solar branch cable assemblies. We support wiring harness prototype development, small-batch trial orders and large-scale mass production, with systematic quality inspection embedded in every manufacturing stage.



Full-Standard Wiring Harness Quality Inspection Process

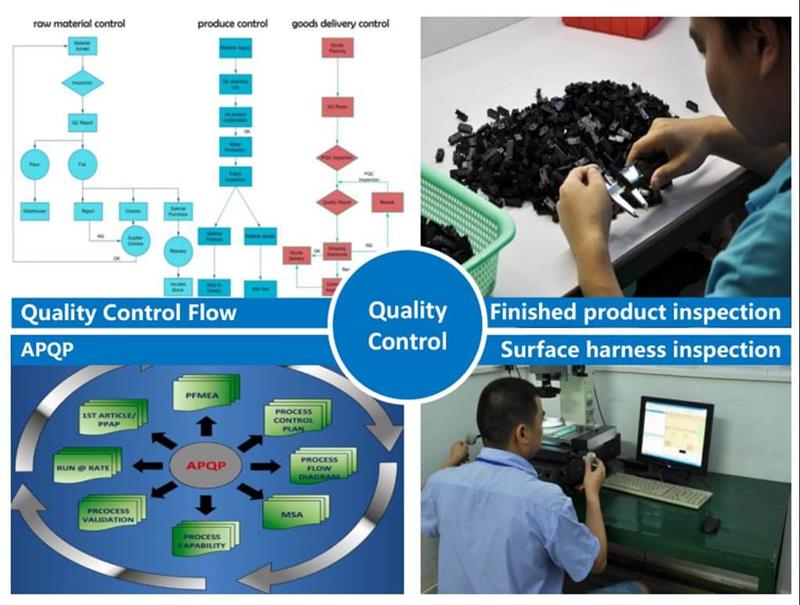

Poor contact, signal distortion and short-circuit faults are mostly caused by incomplete quality control. To eliminate these hidden risks, we implement a complete, industry-compliant wiring harness quality inspection system. Our full-process QC mechanism includes IQC incoming inspection, IPQC in-process monitoring, FQC finished product testing and OQC pre-shipment verification, ensuring every custom cable assembly meets international safety and performance standards.

1. IQC Incoming Material Inspection



IQC is the first barrier of professional wiring harness quality inspection. All core raw materials, including tinned copper wires, flame-retardant insulation tubes, plastic connectors and metal terminals, undergo strict sampling verification. Our QC team checks wire gauge accuracy, insulation fire resistance, terminal conductivity and connector tightness. Unqualified materials are strictly rejected upfront, effectively preventing batch defective products at the source.

2. IPQC In-Process Quality Inspection



IPQC in-process inspection ensures stable manufacturing quality during production. Our inspectors conduct real-time spot checks on key procedures including wire cutting, insulation stripping, terminal crimping and cable overmolding. We strictly control wire length tolerance, crimping tension standard, branch wiring layout and loom wrapping uniformity. Timely correction of operational errors greatly improves the consistency of custom wiring harness batches.


3. FQC Finished Product Comprehensive Testing

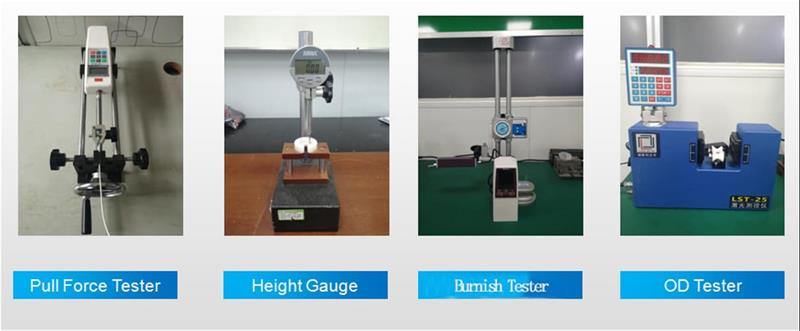

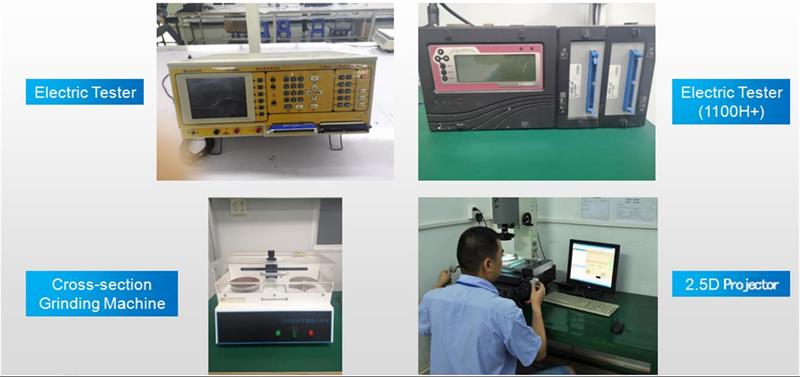

FQC finished product testing is the core step of wiring harness quality inspection. All completed harnesses undergo 100% full inspection, including circuit continuity testing, high voltage withstand testing, contact resistance detection and crimp pull force testing to eliminate open circuits, short circuits and poor conduction. For IP68 waterproof, high-temperature resistant and outdoor-used harnesses, we add customized aging and waterproof tests to adapt to harsh industrial and new energy working scenarios.



4. OQC Pre-Delivery Inspection



OQC pre-delivery inspection is the final guarantee before shipment. Our team conducts comprehensive appearance inspection, parameter verification and packaging confirmation. We check connector integrity, cable surface condition and label accuracy, strictly matching finished products with customer design drawings and customization requirements. Standardized anti-collision packaging avoids product damage during long-distance transportation.



Why Our Strict Wiring Harness Quality Inspection Matters



Professional wiring harness quality inspection directly determines product stability and service life. Strict multi-layer QC procedures effectively reduce failure rates such as signal attenuation, unstable power transmission and terminal loosening. Whether for automotive modification systems, new energy charging equipment or industrial automation devices, our fully tested custom wiring harnesses deliver durable, safe and high-precision circuit connection solutions for global business partners.
