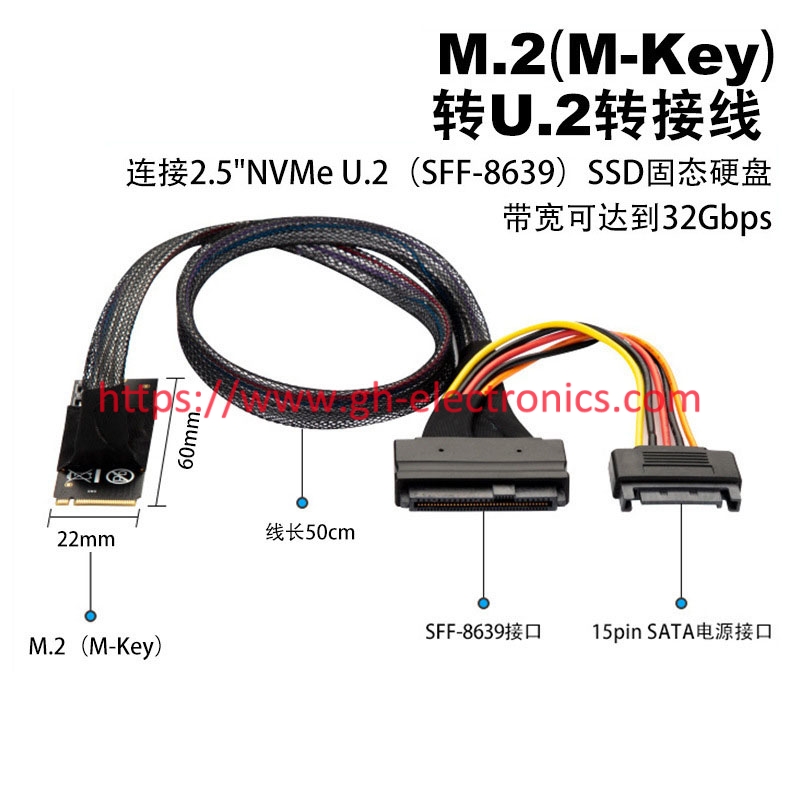

M.2 (M-Key) to U.2 SFF-8639 Adapter – Unlock 32Gbps NVMe SSD Performance
|
Place of Origin: Guangdong, China |
Brand Name: GuangHui Electronics / OEM |
|
Cable type: sata cables |
Application: Computer, PC... |
|
Connectors: M.2 |
Connectors: U.2 SFF-8639 |
|
Color: Black / Optional |
Cable spec: 30AWG BLUE/WHITE/RED/WHITE / Optional |
|
Cable length: 50CM / 100CM / Optional |
Cable spec: 30AWG*2C+2D+AL+MYLAR 100+-5 ohm / Optional |
|
Certification: RoHS, CE |
Conductor Material: Copper |
|
Samples: available |
MOQ: 100PCS |

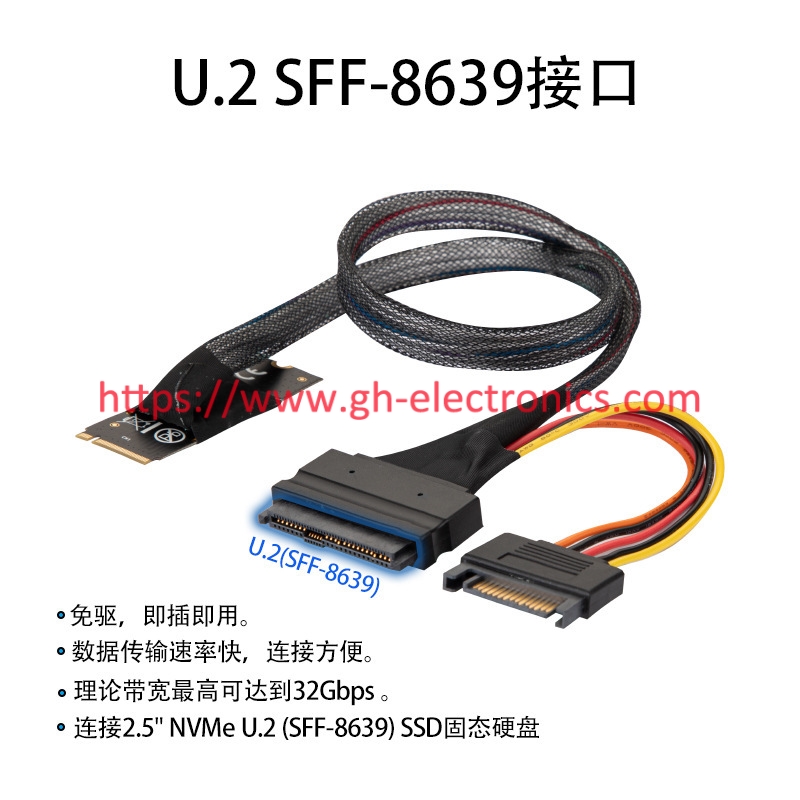

This M.2 to U.2 adapter card can convert the M.2 interface on the motherboard to a standard U.2 (SFF-8639) interface, powered by a 15 pin SATA power interface, ensuring fast and stable data transmission. Users can connect high-performance 2.5 "NVMe U.2 (SFF-8639) SSD solid-state drives and various devices with U.2 (SFF-8639) interfaces without the need for an external U.2 (SFF-8639) data cable. Drive free, plug and play.
2. Provide one U.2 (SFF-8639) interface that can connect high-performance 2.5 "NVMe U.2 (SFF-8639) SSD solid-state drives, with a theoretical bandwidth of up to 32Gbps.

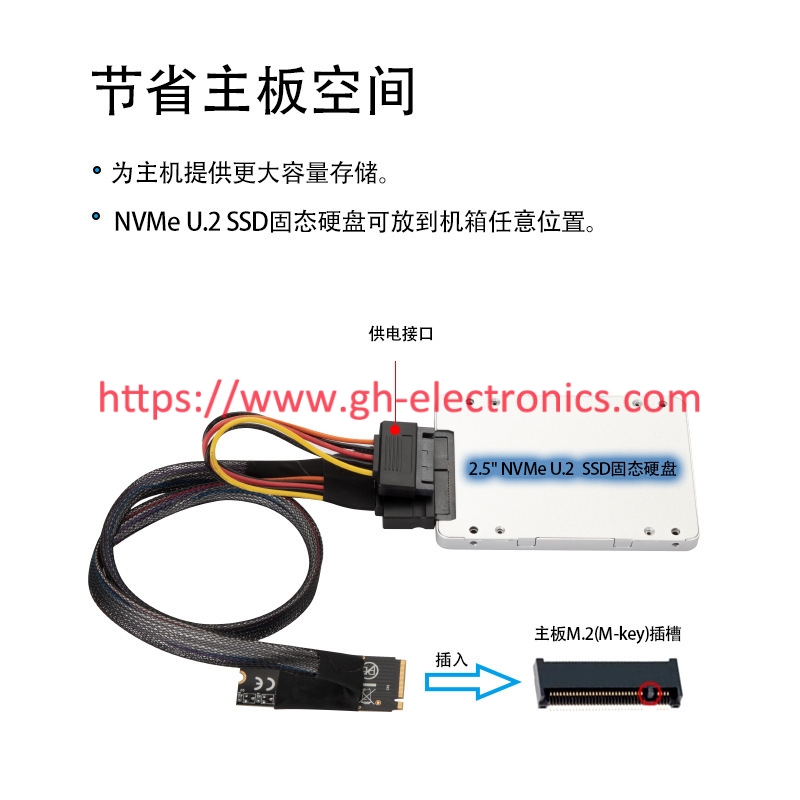

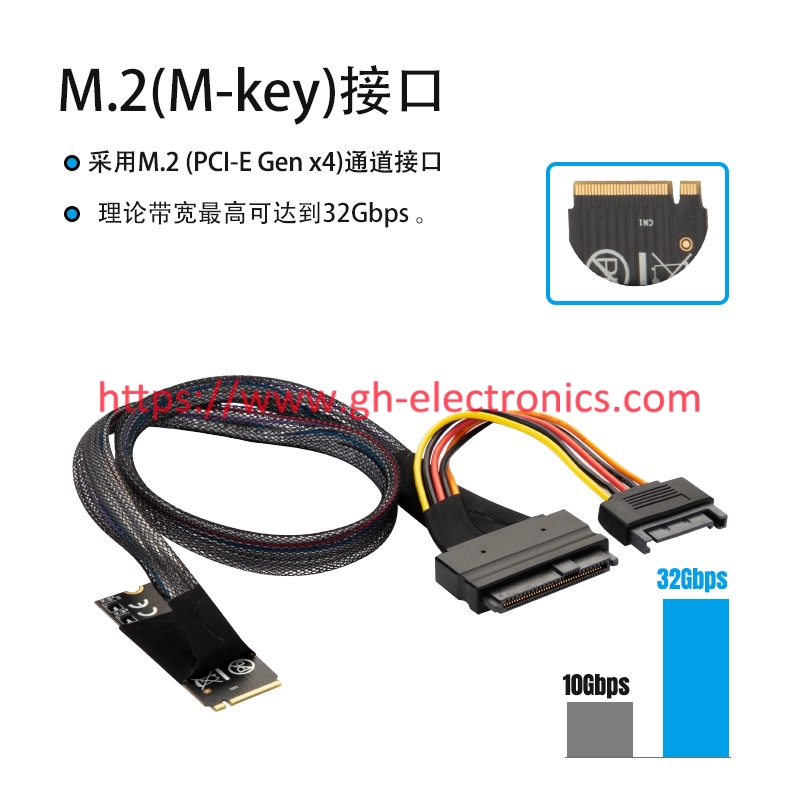

3. Adopting the M.2 (PCI-EGenx4) channel interface, the theoretical bandwidth can reach 32Gbps. Users only need to insert the M.2 to U.2 adapter card into the M.2 (M-key) slot on the motherboard, and connect the other end to the NVMeU.2 (SFF-8639) SSD solid-state drive to achieve high-performance data transfer.
4. Provide larger capacity storage for the host.
The NVMe U.2 SSD solid-state drive can be placed in any position on the chassis.
Note: M.2PCle SSD and M2SATASSD use the same type of connector. This adapter can only work on M.2 connectors designed for M.2 PCle SSD.
