Place of Origin: Guangdong, China |
Brand Name: GuangHui Electronics / OEM |
|
Outer mold: 45P PVC Black |
Application: Electric Bicycles Waterproof Cables |
|
Certification: RoHS, CCC, VDE, UL |
Conductor Material: Oxygen-free Copper |
|
Core: 2pin, 3pin, 4pin, 5pin, 6pin |
Waterproof rate: IP65/67/68 |
|
Color: Black / Optional |
Cable OD: 4-5MM |
|
Cable length: Optional |
Environment Temperature: -20~105° |
|
Samples: available |
Lead time: 2~3weeks |
|
MOQ: 500PCS |
|
Product attributes and parameters
1. Product features: Wire and connectors injection molding integrated, male and female plug-in, with locking nuts and waterproof rubber pads.
2. Wire material: PVC, rubber, other. According to customer requirements.
3. Product certification: Various wires such as CCC, VDE, UL, etc. can be used according to customer requirements
4. Product appearance colors: black, white, transparent, etc

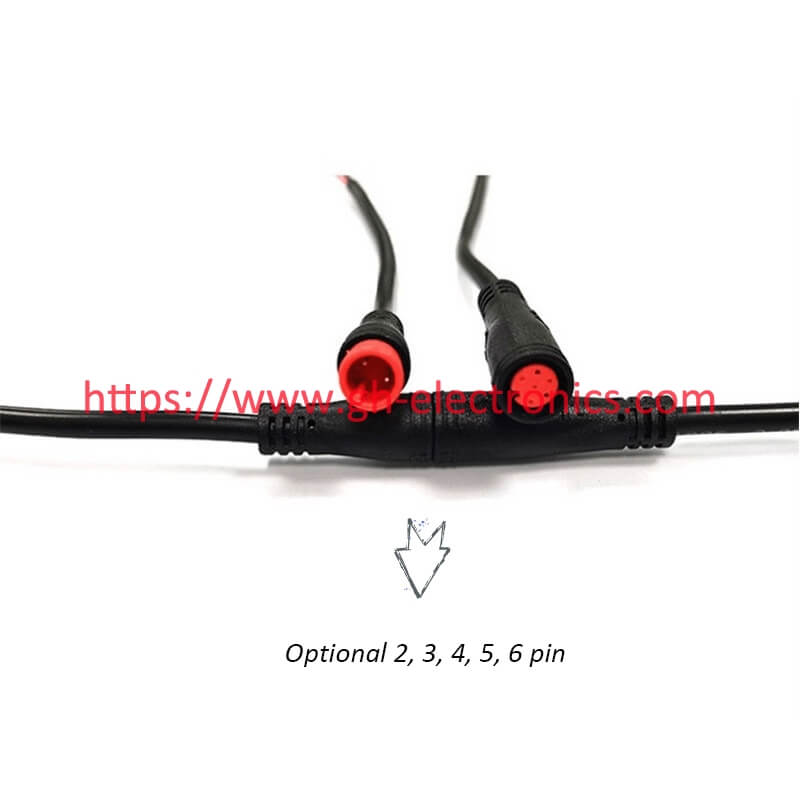

5. Number of cores: This male and female plug can be customized with 2 to 6 cores
6. Cable inner wire cross-section: (mm2) can be customized according to requirements.
7. Line length: Any length according to customer requirements (regular wire length of 20cm for both male and female)

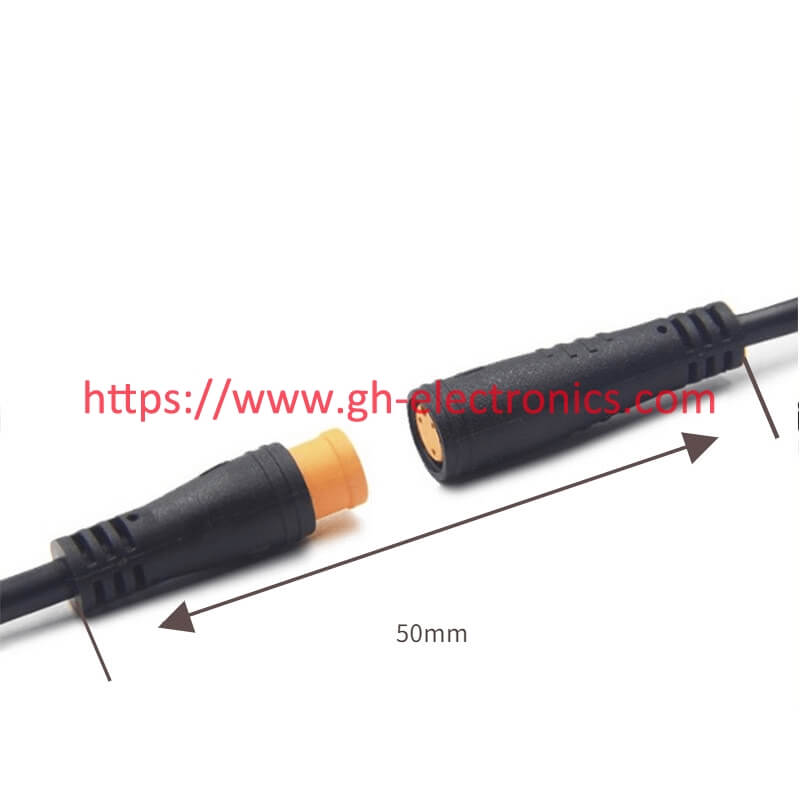

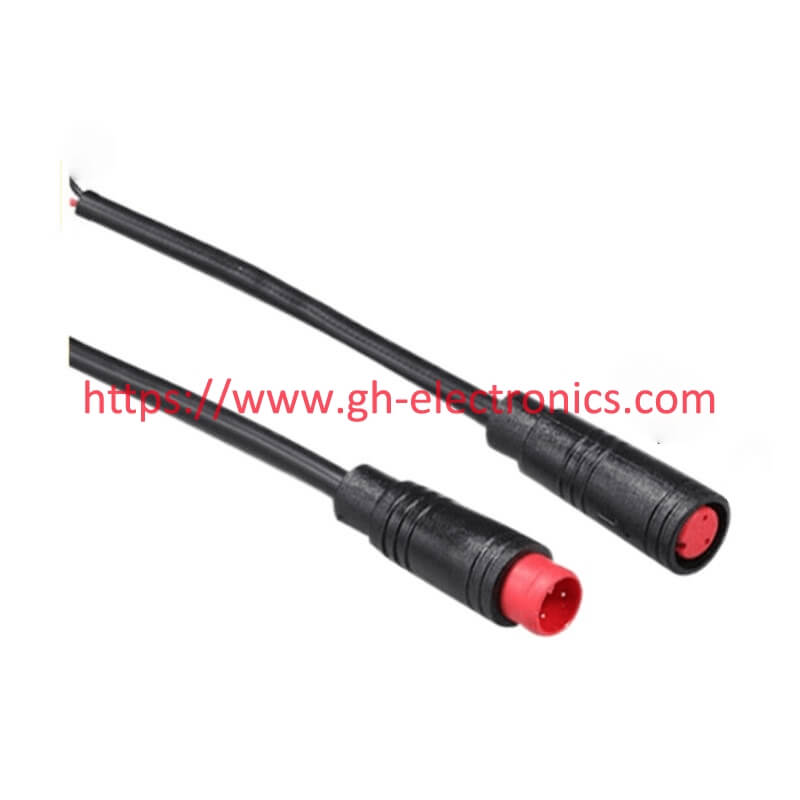

This 20CM waterproof M8 connector cable assembly widely used in electric bicycles, waterproof signal connecting wires, outdoor lighting, and the waterproof level can be selected as IP/65/67/68.
