Material:
Base: PBT with 30% fiber
Terminal: Phosphorus copper T=0.30 (bottom nickel 50u ", contact area gold-plated 1-30u")
Electrical performance:
Rated current: 1Amp
Maximum withstand voltage: AC 500V/1Minute
Insulation resistance: 1000m Ω Min at DC 500V
Contact resistance: 15m Ω Max
Working temperature: -40 ° C~+105 ° C
Testing requirements:
Good appearance, plastic parts must not have injection defects, etc
Metal parts shall not have defects such as scratches, deformation, etc
The on-off performance meets the specified requirements

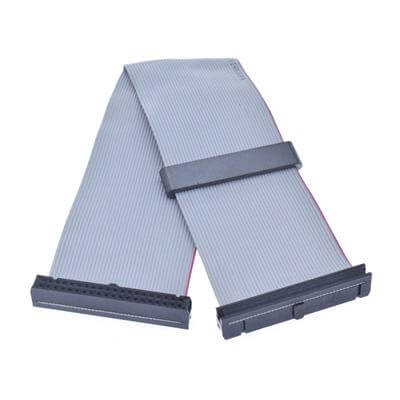

Suitable for UL2651 28 # PH=1.27 flat cable

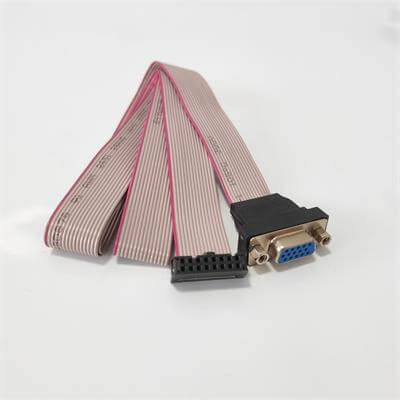

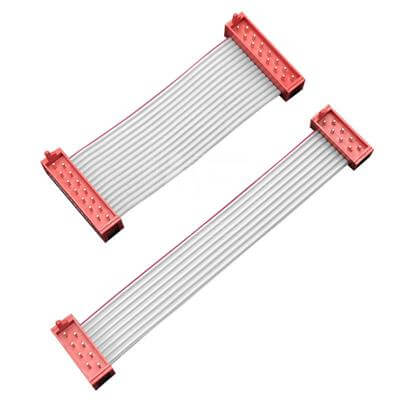

IDC wires are widely used in communication electronics, household appliances, machine tool control equipment, smart homes, and more.

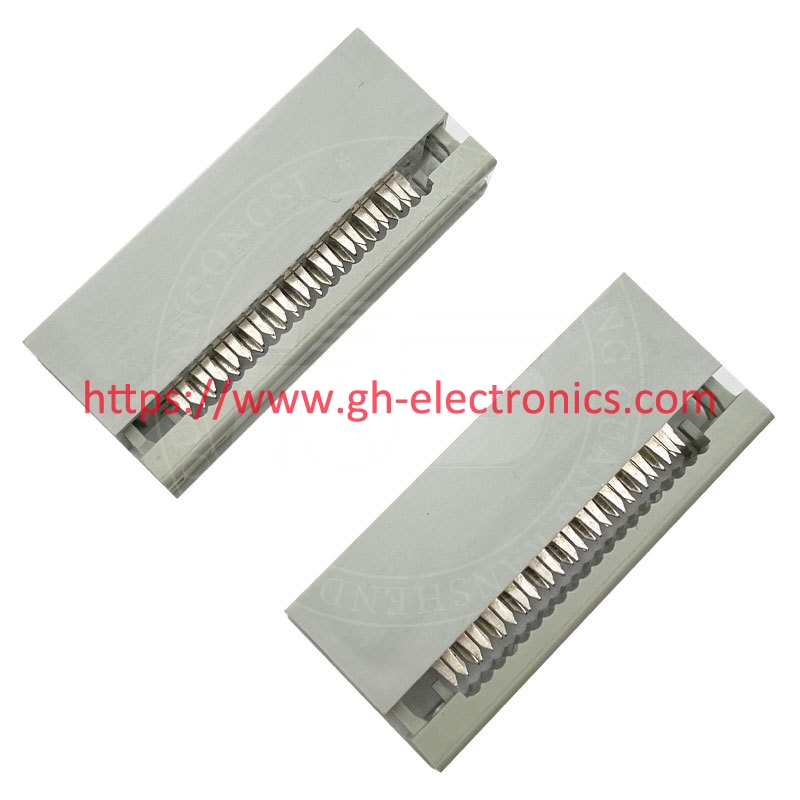

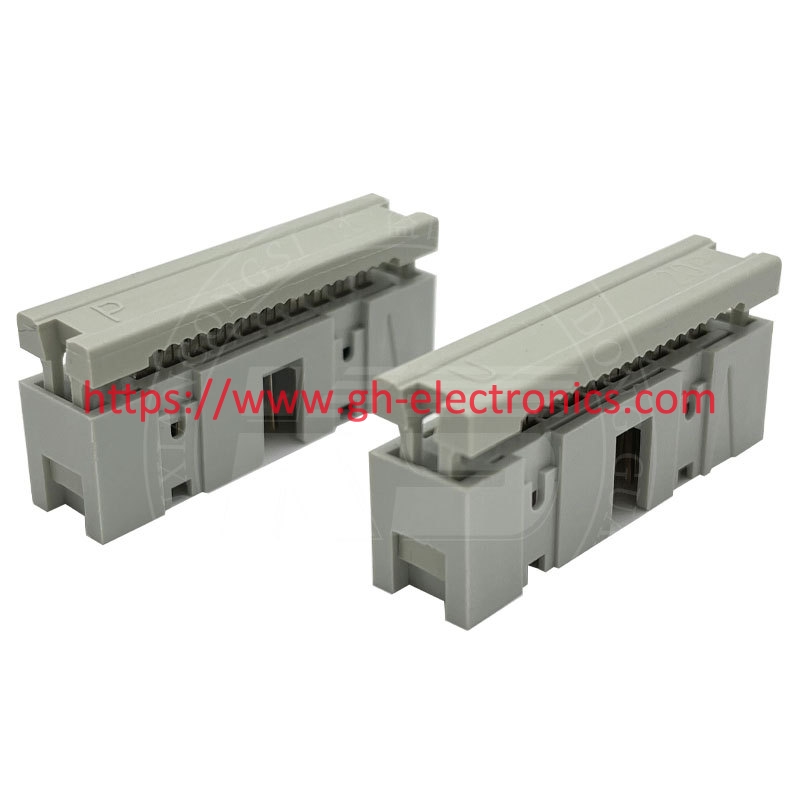

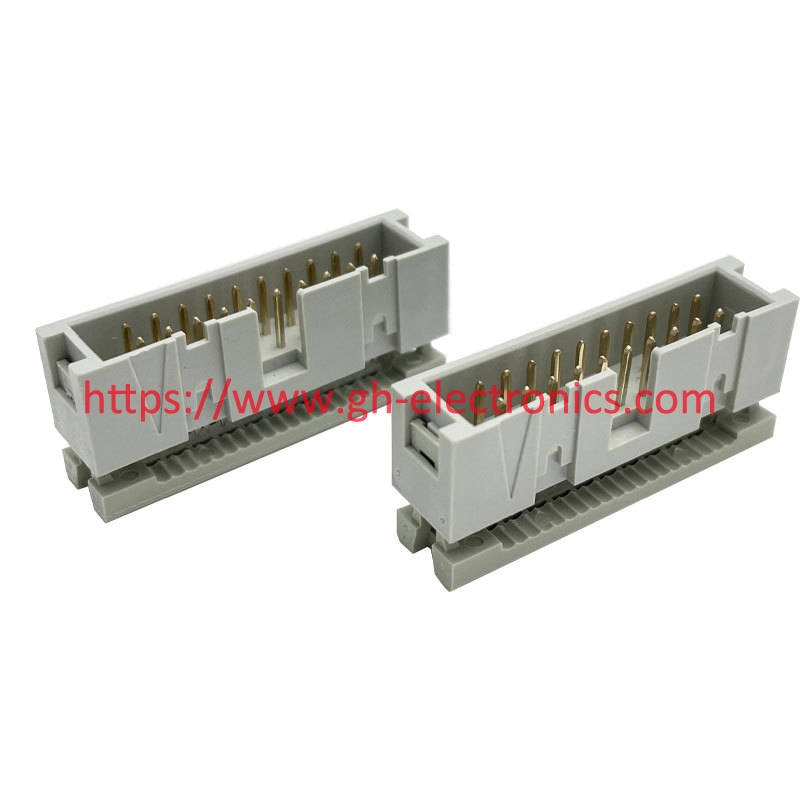

China IDC Connector Factory Direct Wholesale 4P-64PFC, 2.54mm/2.0mm/1.27mm pitch is optional.
