Material:
Base: PBT with 30% fiber
Terminal: Phosphorus copper T=0.30 (bottom nickel 50u ", contact area gold-plated 1-30u")
Electrical performance:
Rated current: 1Amp
Maximum withstand voltage: AC 500V/1Minute
Insulation resistance: 1000m Ω Min at DC 500V
Contact resistance: 15m Ω Max
Working temperature: -40 ° C~+105 ° C
Testing requirements:
Good appearance, plastic parts must not have injection defects, etc
Metal parts shall not have defects such as scratches, deformation, etc
The on-off performance meets the specified requirements
Suitable for UL2651 28 # PH=1.27 flat cable
What kinds of ribbon cable We Can custom：
PH2.54 IDC Cable Series
PH2.0 IDC Cable Series
PH1.27 DIC Cable Series
Red IDC DIP Cable Series
IDC Connector Series

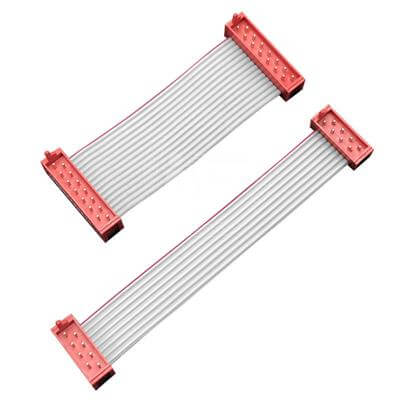

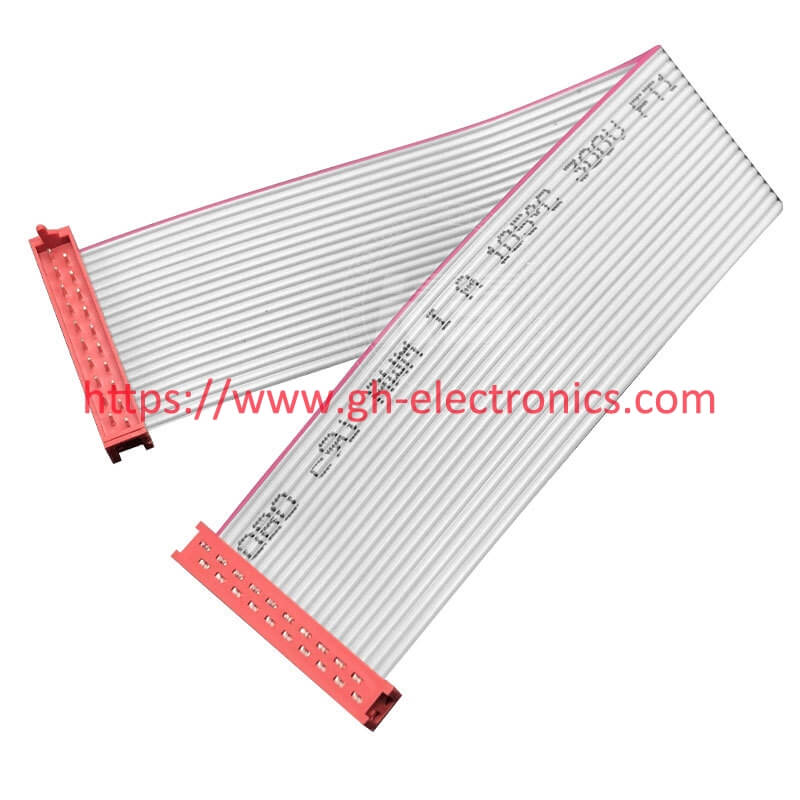

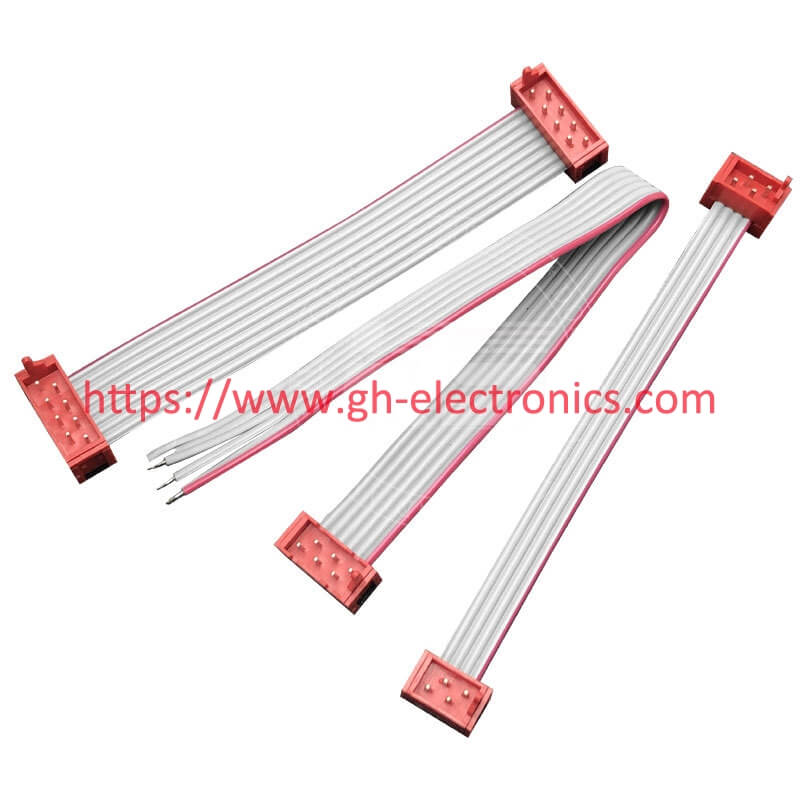

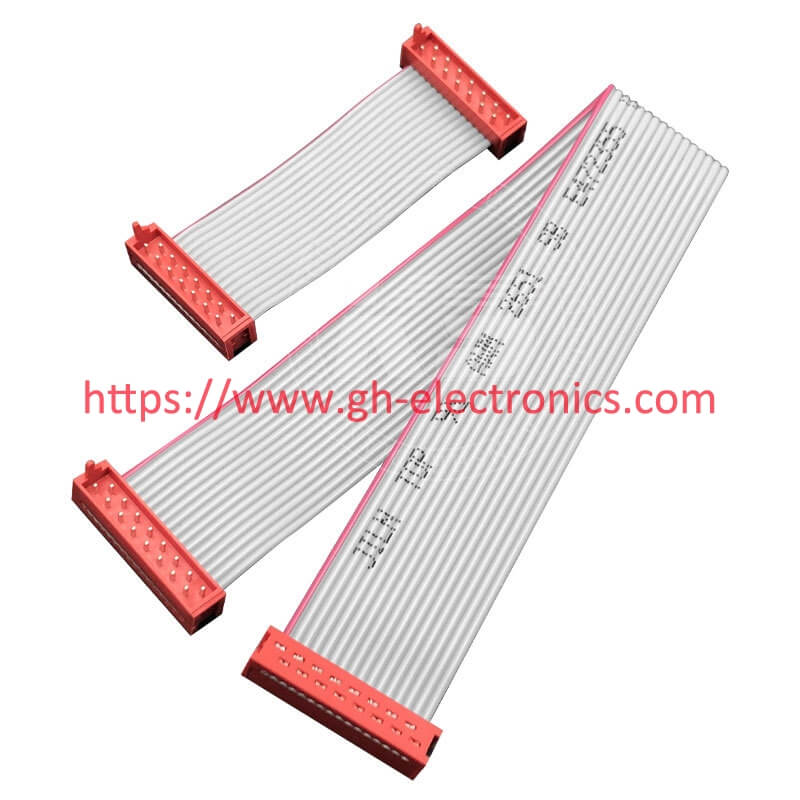

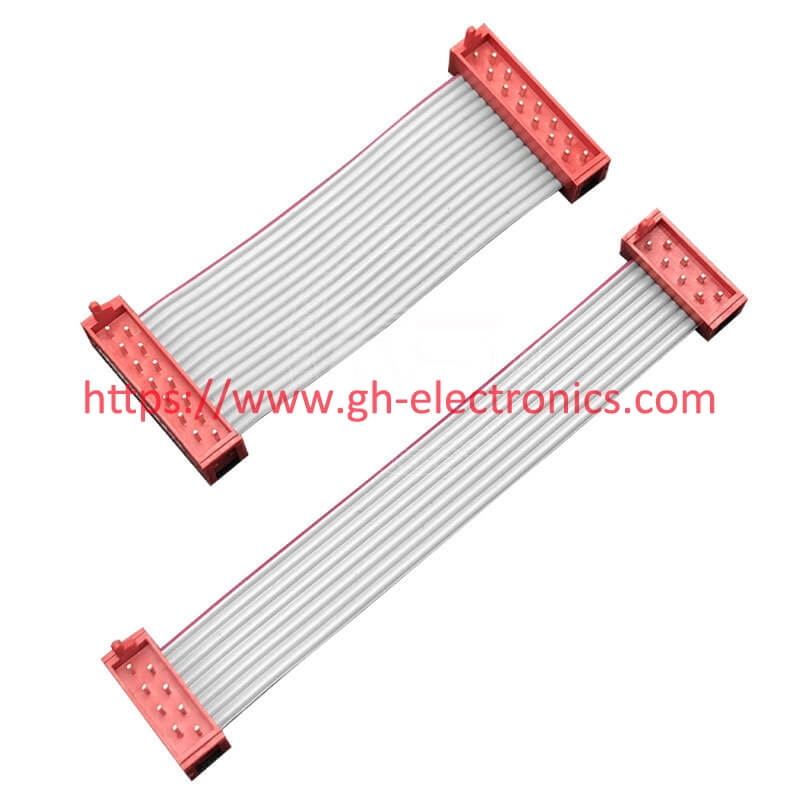

A series of Micro MaTch IDC ribbon cable components for line to board interconnection. These Micro MaTch ribbon cable components are terminated with an online male Micro MaTch connector at both ends. The Micro MaTch series connectors have a compact and space saving design with a spacing of 2.54mm.
These Micro MaTch ribbon cable components are suitable for a wide range of wire to board applications, including production and material processing equipment, control units, robots and motors, central heating units
