Communication Cables

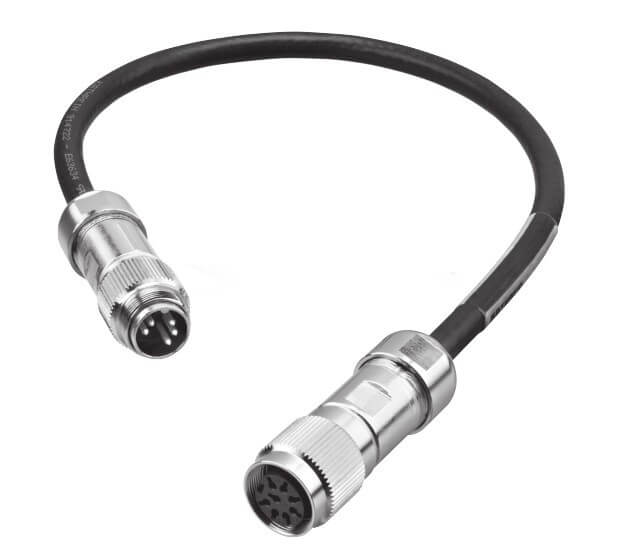

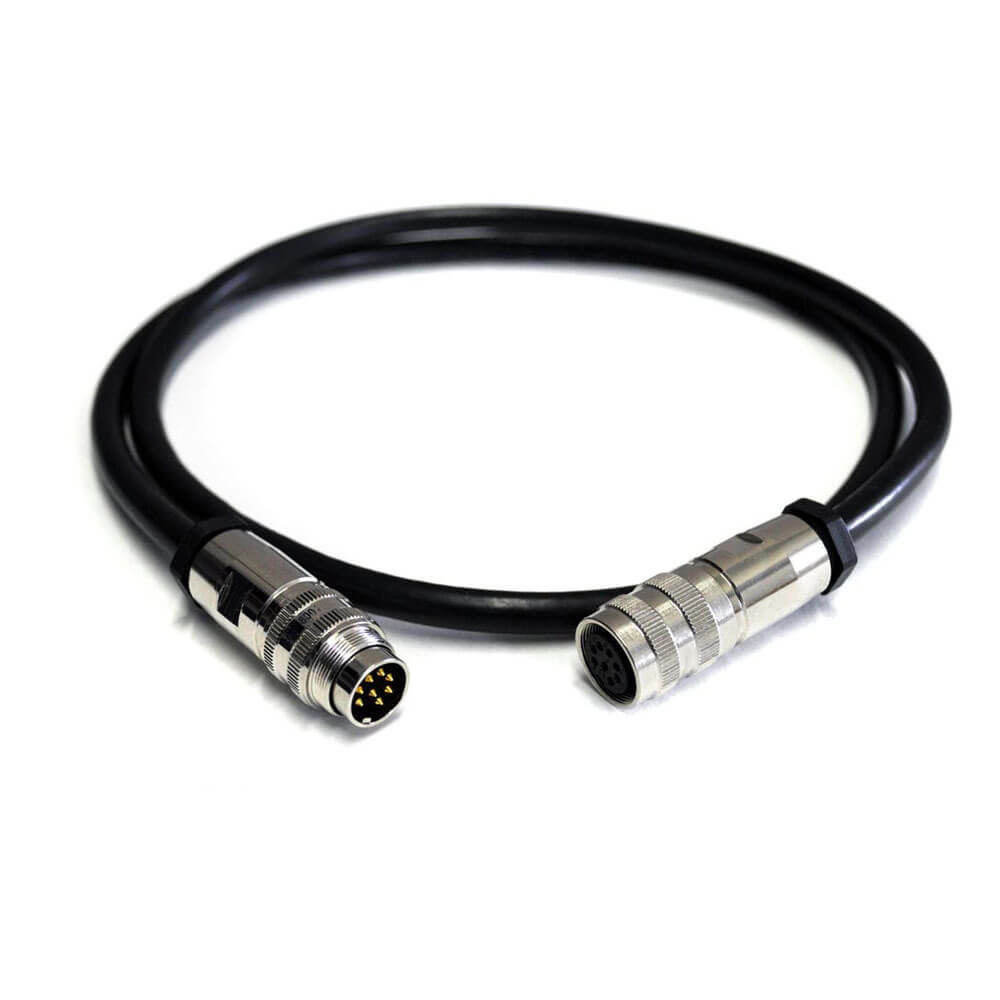

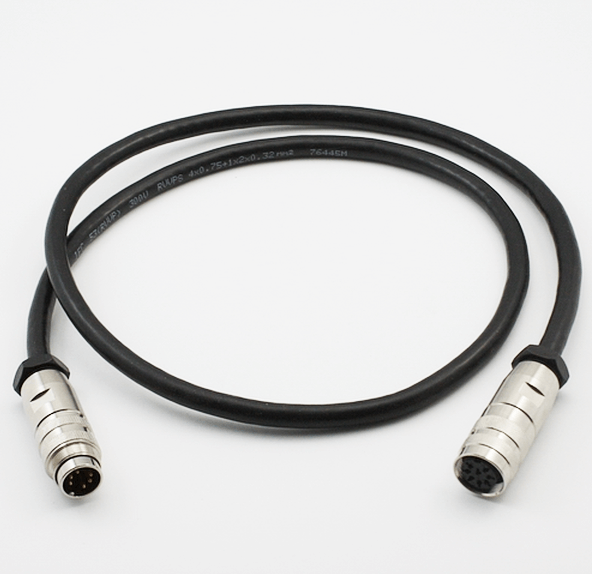

AISG 8pin connector male to female communication cable

  • Product ID：Communication Cables
  • Skype：+86 137 5185 9234
  • Phone: +86 137 5185 9234
  • Tel: +86 137 5185 9234
  • Email: sales2@gh-electronics.com
  • Time: 2020-09-10
  • INQUIRY


 Place of Origin: Guangdong, China  Brand Name: GuangHui Electronics/OEM
 Degree of protection: IP67  Application: Power, RET system application
 Voltage: 300v  Connector: AISG 8PIN male/female
 Color: Black or customized  Cable length: Optional
 Housing Material: Copper Alloy    Cable: 18 AWG, 22AWG / optional
 Jacket: PVC / PU  Conductor Material: Copper with nickel-plated
 Temperature: -40°C to +80°C  Shield: Braid
 Samples: available  Certification: UL, CE, RoHS










This AISG cable is used to feed data and power from the controller to the Remote Electrical Tilt (RET) system components.

Features:
Compatible with AISG connectors
Outdoor IP67 compliant
Flame retardant, Polyurethane jacket
Up to 100% humidity

Applications:
Remote Electrical Tilt (RET) applications
AISG compliant antenna control units
Tower mount amplifiers with AISG interface
Control Network interfaces with AISG interface
