The UAVs wire harness is a neat, organized bundle of power cables, signal wires, connectors, and protective sleeves that links all key electronic parts of a drone. It acts as the drone’s nervous and circulatory system, ensuring stable power supply and smooth data transmission.
Core Functions
>> Power Delivery: Connects the battery to ESCs (Electronic Speed Controllers) and motors, providing energy for flight.
>> Signal Transmission: Links the flight controller to sensors (GPS, IMU, compass), camera, and remote receiver, transferring control commands and data.
>> Organization & Protection: Groups loose wires to avoid clutter; shields wires from vibration, EMI (electromagnetic interference), and harsh environments.
Key Features
. Lightweight & Compact: Optimized for minimal weight to maximize flight time and payload.
. High Reliability: Withstands strong vibration, temperature changes (-40°C to +125°C), and frequent plug/unplug.
. Standard Connectors: Uses common connectors like XT60/XT90 (high power), JST PH (signals), and Dupont (sensors) for easy assembly.

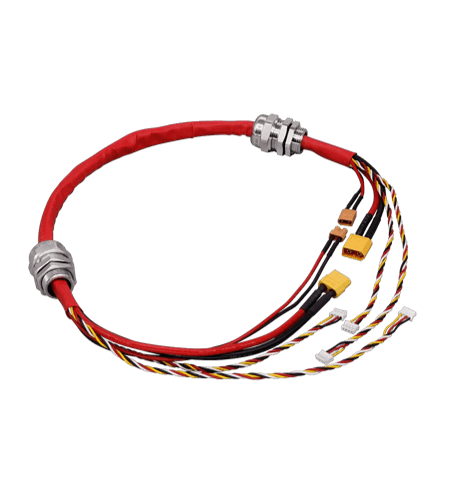

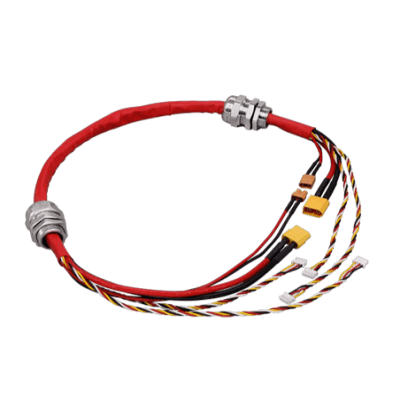

Integrated Bulkhead Power Wire Harness for UAV Power Systems
Core Positioning：An integrated bulkhead power and signal transmission wire harness designed for medium-to-large industrial-grade UAVs. It fulfills the cross- compartment power supply and signal transmission needs between the power bay and flight control bay in complex scenarios such as agricultural, inspection, and surveying drones.

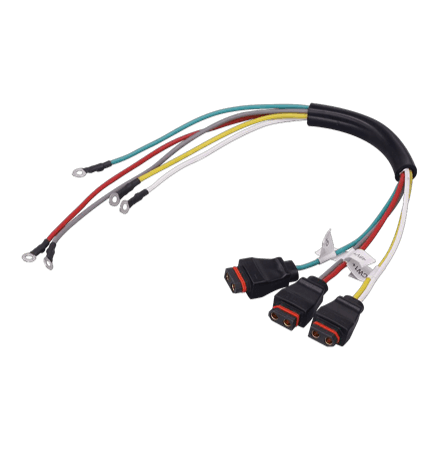

Multi-Motor Integrated Power Wire Harness for UAVs
Core Positioning：An integrated power and signal transmission wire harness designed for multi-rotor UAV power systems. It meets the power distribution and control requirements of multiple ESCs and motors in medium-to- large UAVs such as agricultural, industrial inspection, and aerial photography drones.

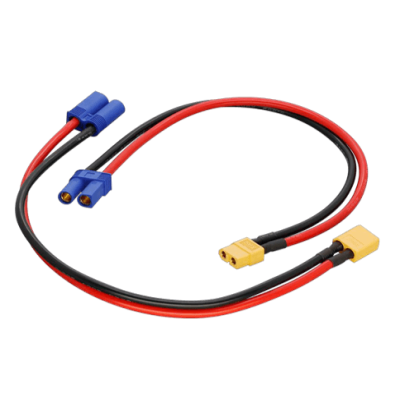

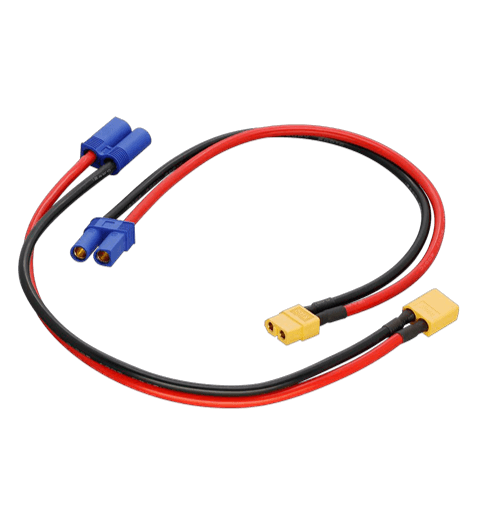

EC3 to XT60 Dual-Channel Power Adapter Wire Harness for UAVs
Core Positioning：A dual-channel interface adapter cable designed for UAV power systems. It meets the cross- interface power supply requirements between batteries and power systems in multi-rotor aerial photography, racing, and agricultural drones, enabling seamless adaptation of different power connector specifications.

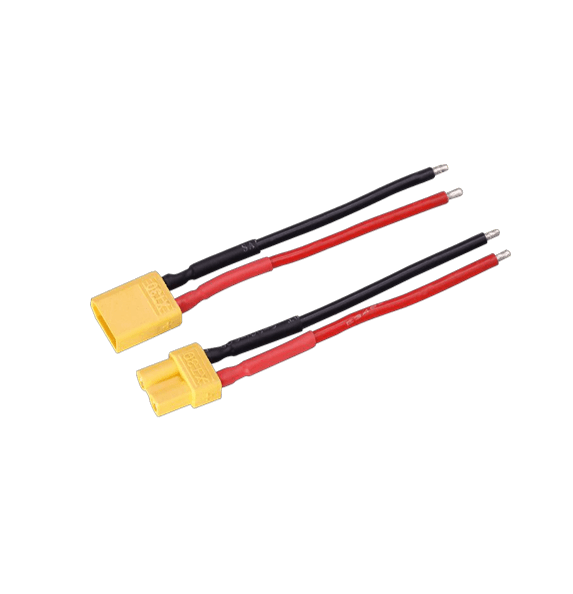

XT30 Terminal Single-End Tinned Power Supply Wire Harness for UAVs
Core Positioning：A lightweight power connection cable designed for micro drones and racing drones. It enables power transmission between batteries, flight controllers and ESCs, supports customized soldering, and meets the low-weight, high-reliability requirements of small UAVs.

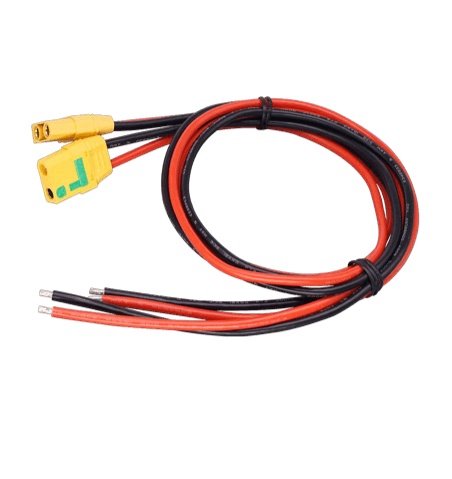

XT90 Terminal Single-End Tinned Power Supply Wire Harness for UAVs
Core Positioning： A h i gh- current power connection cable designed for power systems of medium- to-large UAVs. It supports power transmission between batteries, ESCs and flight controllers in multi-rotor aerial photography, agricultural, and industrial inspection drones, with customized soldering available.
XT150 Power Wire Harness for UAVs
Core Positioning：A high-power power harness designed for medium-to-large heavy-load UAVs. Featuring high current capacity, low loss, and weather resistance, it is a core standard component for the power chain of agricultural, inspection, and heavy-load aerial photography drones.
UAVs Wire Harness Application Scenarios
UAVs Wire Harness Adaptors
As a custom
UAV wire harness manufacturer in China. We provide one-stop customized drone wiring solutions, lightweight, high temperature & vibration resistant. Perfect for industrial, commercial and racing drones. OEM & ODM available with reliable quality and fast lead time.
