Product Overview
This MC4 Y-branch solar wiring harness belongs to our

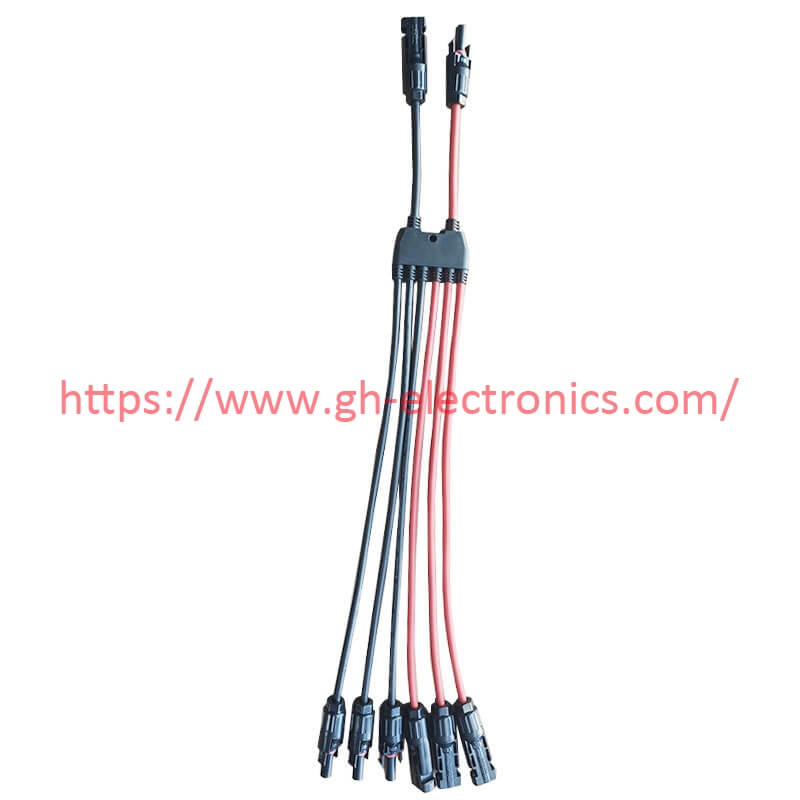

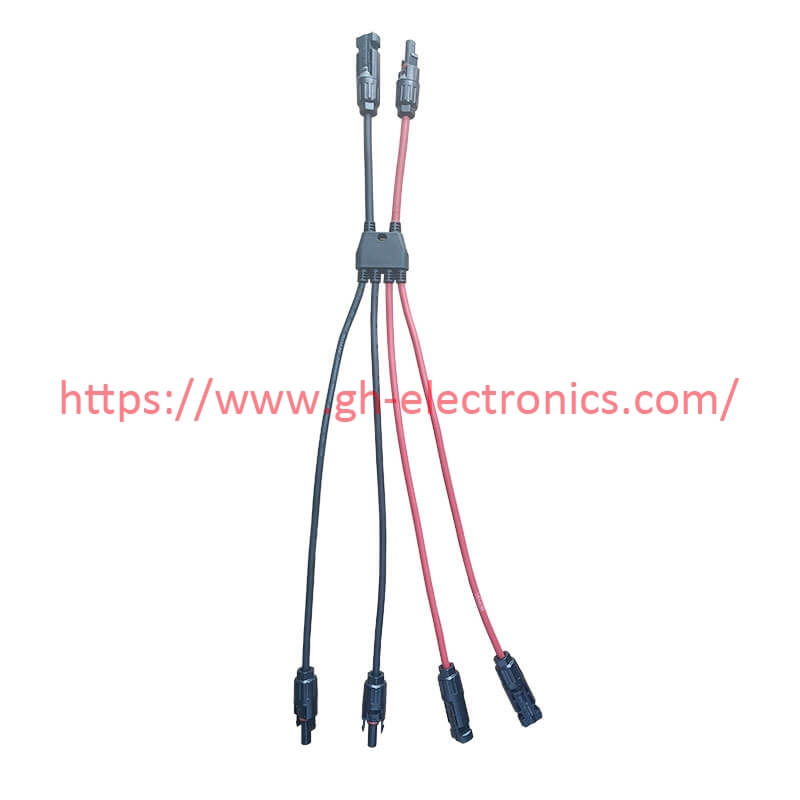

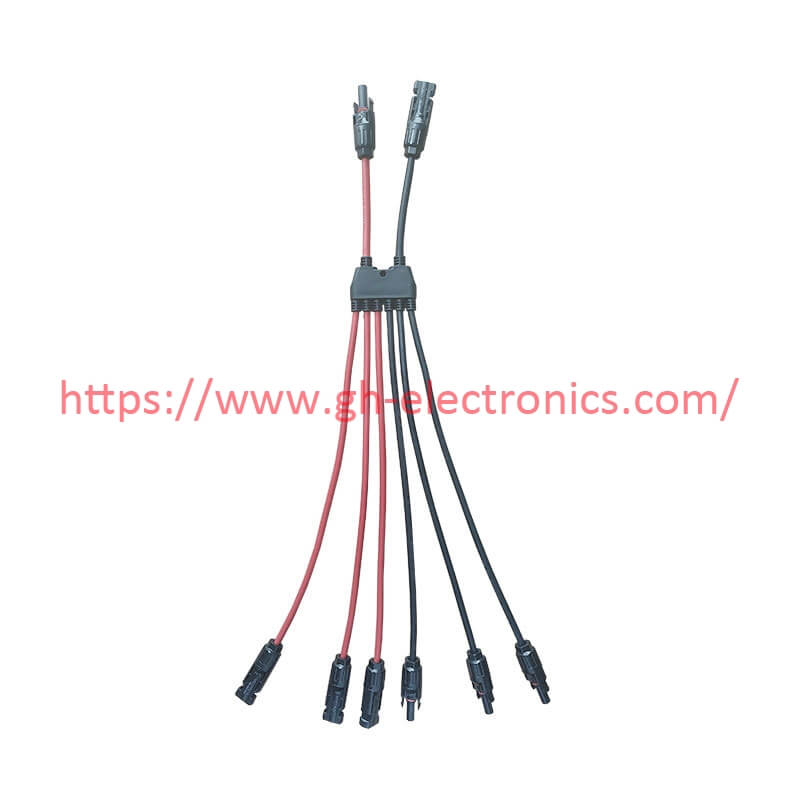

New Energy Cable Assembly series. Available in 2-to-4 and 2-to-6 branch layouts, designed for parallel connection of multiple solar panels.
The PV splitter cable simplifies solar array wiring layout, widely adopted in off-grid power systems, rooftop photovoltaic projects, RV solar setups and energy storage stations. Standard length 56cm in stock, and we support fully customized new energy cable assembly to match different installation space requirements.
Outstanding Product Performance
✅IP68 Waterproof & Reliable Sealing
Passed TUV lab testing under 1m water depth for 1 hour. Embedded locking structure prevents accidental separation. Stable connection under outdoor rainy, dusty environment.
✅ Wide Temperature Adaptability
Adopt high-performance PPO insulation material, UL94-V0 flame retardant. Working temperature range -40°C ~ +95°C, material resistance temperature reaches -40°C ~ +125°C, suitable for extreme outdoor climate.
✅Stable High Current Transmission
Tinned brass contact core, contact resistance ≤5mΩ. Rated voltage 1000V DC, maximum working current 30A. Effectively reduce heat generation during long-time photovoltaic power transmission.
✅Optimized Plug Mechanical Design
Insertion force ≤50N, pull-out force ≥50N. Self-locking mechanism ensures firm docking. Support 4mm² and 6mm² solar wire, compatible with mainstream photovoltaic cables.
Core Technical Specifications
Category: New Energy Cable Assembly
Product: MC4 Y-Branch PV Splitter Wiring Harness
Available Type: 2 to 4 / 2 to 6 Y branch
Waterproof Grade: IP68
Rated Voltage: 1000V DC
Max Current: 30A
Insulation Material: PPO, UL94-V0 flame retardant
Temperature Range: -40°C ~ +95°C
Conductor: Tinned brass
Standard Length: 56cm, customizable
Typical Application Scenarios
Rooftop household solar panel parallel connection
Off-grid photovoltaic power generation system
RV, caravan portable solar energy system
Small commercial photovoltaic & energy storage projects
Customization & Quality Support

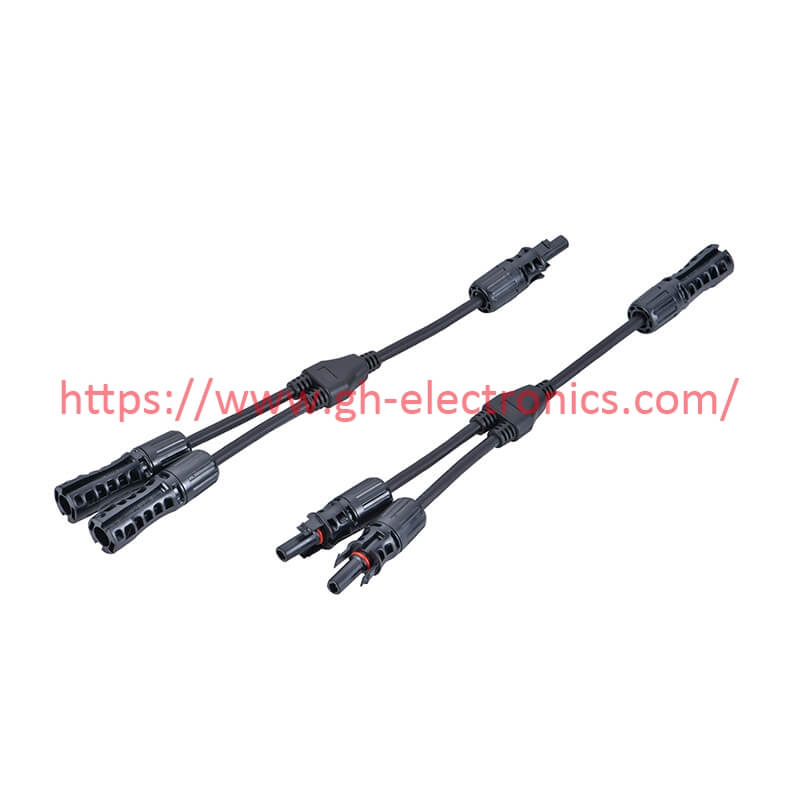

As a professional new energy cable assembly manufacturer, we adjust cable length, branch layout and wire gauge on demand.
All finished PV wiring harness pass continuity and waterproof sampling inspection before delivery. We provide prototype service and small-batch trial orders for photovoltaic engineering distributors.
FAQ
Q1: Can this MC4 Y branch harness work under long-term outdoor exposure?
A: Yes. IP68 waterproof structure and PPO high temperature resistant material are engineered for long-term outdoor photovoltaic projects.
Q2: Can I get custom length MC4 PV splitter cable?
