In industrial inspection drones, the wiring harness is the central nervous system that determines flight safety, signal stability, and long-term reliability. A UL-certified UAV wire harness for industrial inspection drone is not just a connecting component; it is a core part of ensuring mission success in harsh environments such as high altitude, strong vibration, and extreme temperatures. As a professional UAV wire harness manufacturer with UL and ISO certifications, we specialize in customizing high-reliability drone wire harnesses tailored to the unique needs of industrial inspection scenarios.
Industrial inspection drones are widely used in power line patrol, pipeline inspection, wind farm maintenance, and high-rise building detection. These scenarios demand strict requirements for wire harnesses:
. High Safety: UL certification (compliant with UL 758, UL 486E standards) ensures the harness is flame-retardant, self-extinguishing, and resistant to electrical breakdown, eliminating fire risks during long flights.
. Extreme Environment Resistance: Operating at -40°C to +125°C, withstanding 5–500Hz vibration, and resisting moisture, dust, and chemical corrosion—critical for stable operation in complex industrial environments.
. Signal Integrity: Shielded design prevents electromagnetic interference (EMI) from affecting GPS, cameras, and sensors, ensuring clear data transmission for high-definition inspection imaging.
. Regulatory Compliance: UL and ISO 9001 certifications meet international quality and safety standards, facilitating global market access and customer qualification audits.
Our Core Competencies in Custom UAV Wire Harnesses
With years of experience in drone harness manufacturing and UL/ISO dual certifications, we deliver one-stop customization services from design to production:
1. Full-Customization Capability
We customize harnesses based on your drone’s structure, flight controller model (Pixhawk/ArduPilot), power requirements, and payload interfaces:
. Wire Specifications: 0.1–2.0mm² tinned copper conductors, UL-listed silicone/FEP insulation (ultra-flexible, high-temperature resistant).
. Connectors: Compatible with XT60/XT90, JST, Dupont, SMA/U.FL (for GPS/antennas), and custom locking connectors (anti-vibration).
. Length & Layout: Optimized wire routing to minimize weight (20–30% lighter than standard harnesses) and reduce interference.
. Protection: IP67 waterproofing, braided shielding, strain relief boots, and heat-shrink tubing for durability.
2. Strict Quality Control (UL & ISO Compliant)
. Certifications: All products are UL-certified (UL 758, UL 486E) and manufactured under ISO 9001 quality management system, complying with IPC/WHMA-A-620 workmanship standards.
. Testing: 100% continuity, short-circuit, and insulation resistance tests; voltage drop, load, and vibration tests for critical components.
. Traceability: Full material and production records ensure every harness can be traced for quality assurance.
3. Application-Specific Solutions for Industrial Inspection Drones
We tailor harnesses for key inspection drone components:
. Flight Controller Harnesses: Stable connections for Pixhawk/ArduPilot, supporting multi-sensor integration.
. ESC-Motor Harnesses: High-current (up to 100A) capacity, anti-vibration design for reliable power transmission.
. Gimbal-Camera Harnesses: Flexible, lightweight, and shielded for 4K/8K video signal transmission.
. Battery Harnesses: XT60/XT90 connectors, high-temperature resistance, and over-current protection.
. GPS/Antenna Harnesses: Micro-coax cables with SMA/U.FL connectors, anti-interference for precise positioning.

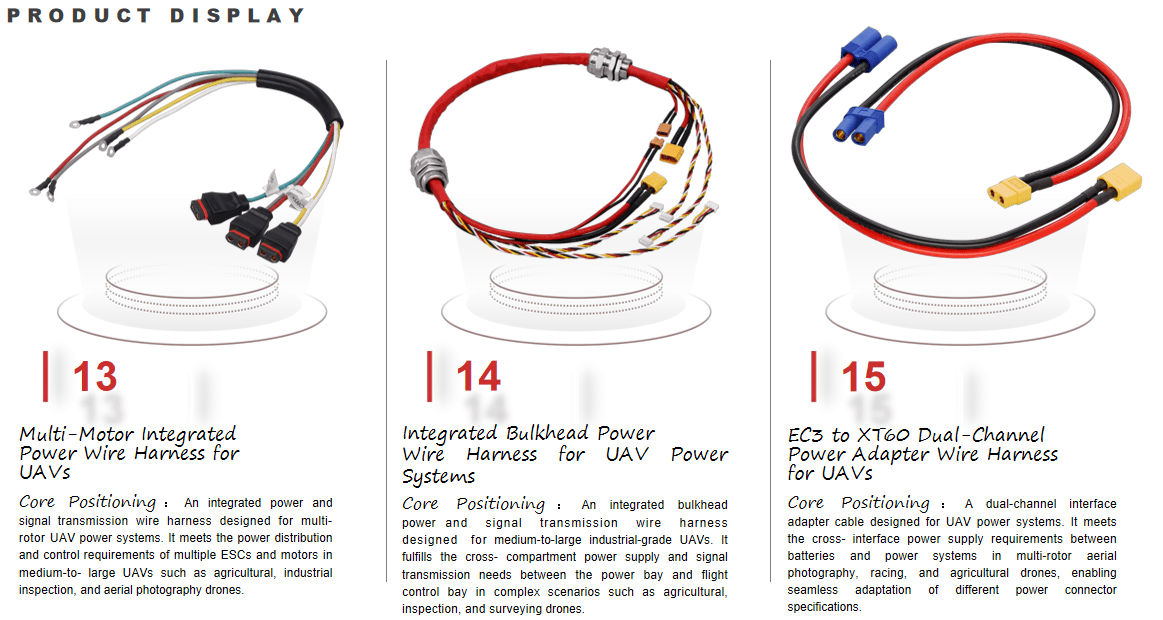

UAVs Wire Harness Application Scenarios
Why Choose Us for Your Industrial Inspection Drone Harnesses
. Certified Expertise: UL and ISO certified, with deep experience in industrial drone harness customization.
. Customization Flexibility: Small-batch (50 sets minimum) and high-complexity orders accepted, 3–7 days for sampling.
. Reliability & Safety: UL-listed materials and strict testing ensure compliance with global safety standards.
. Global Support: English-speaking engineering team provides 24/7 technical support and after-sales service.

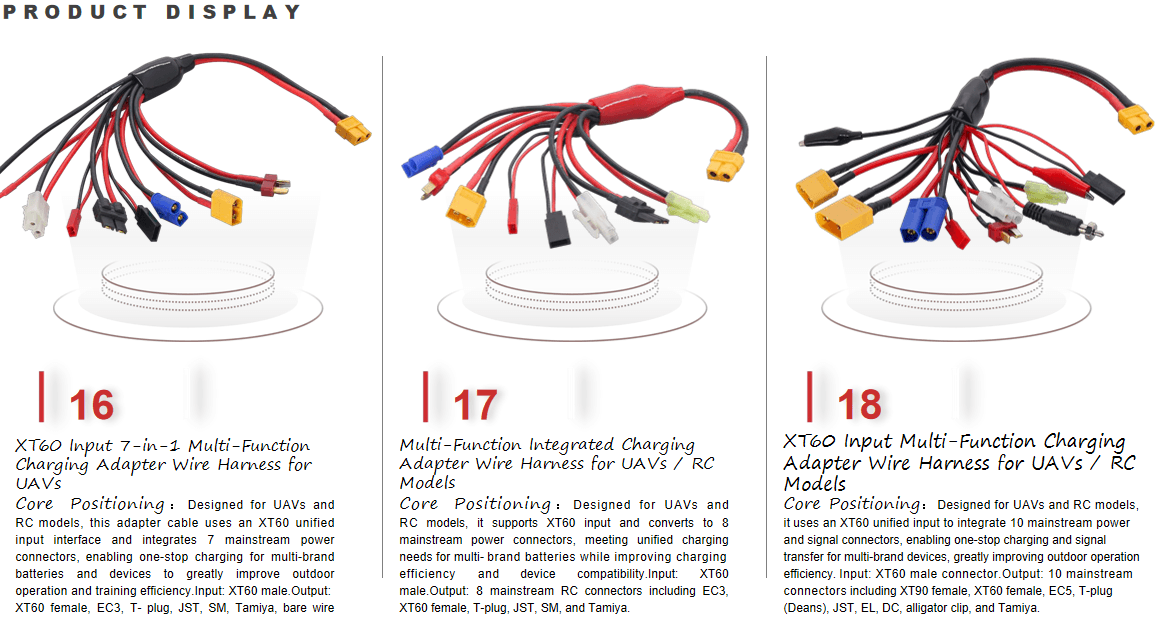

UAVs Wire Harness Adaptors
For industrial inspection drones, a UL-certified custom wire harness is the key to safety, reliability, and mission efficiency. Contact us today to discuss your specific requirements and get a tailored solution!
