Pogo Pin Magnetic Cables

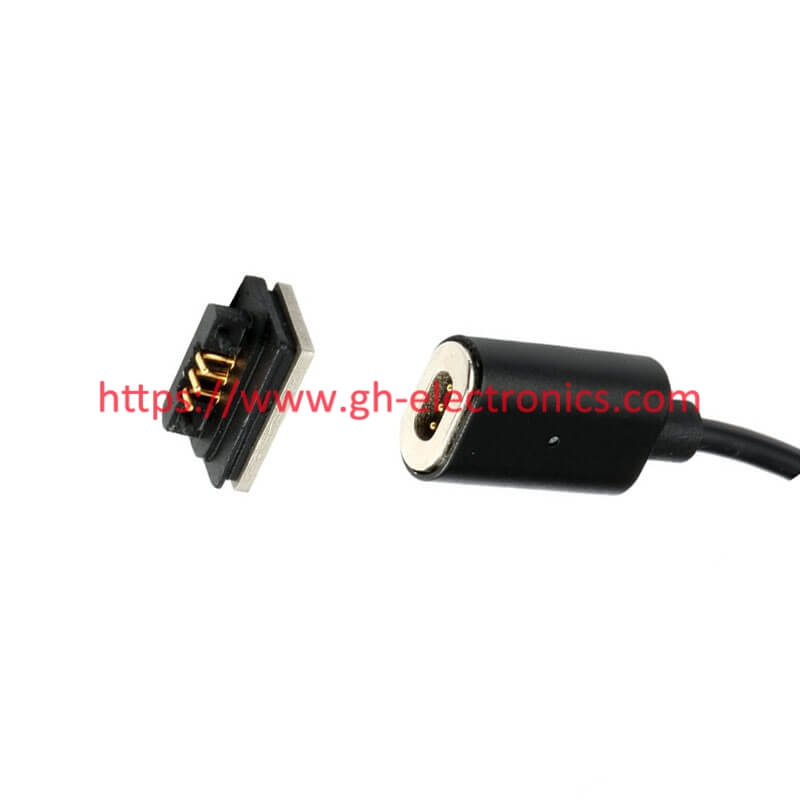

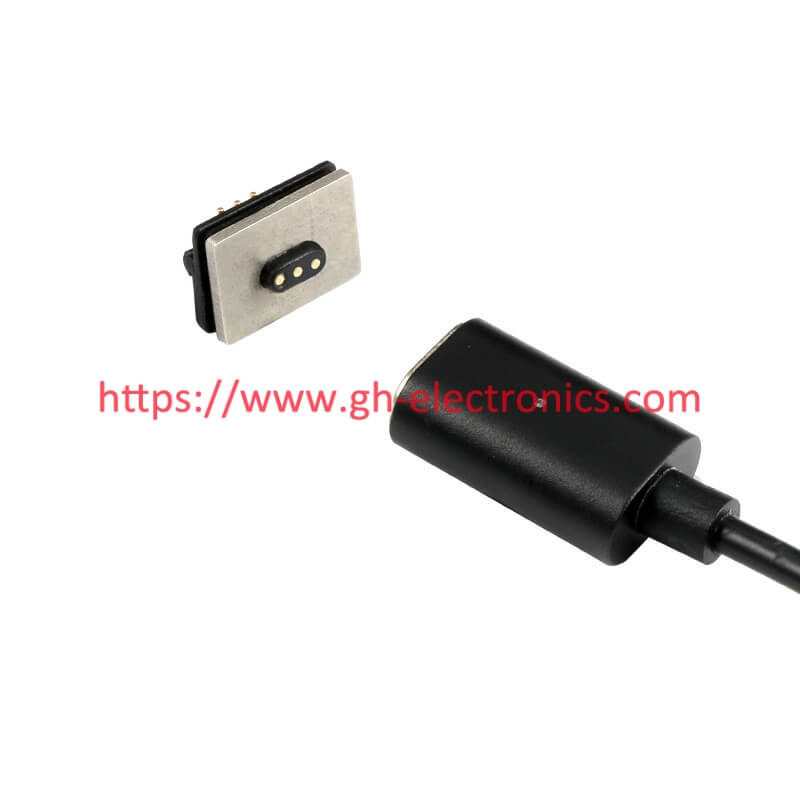

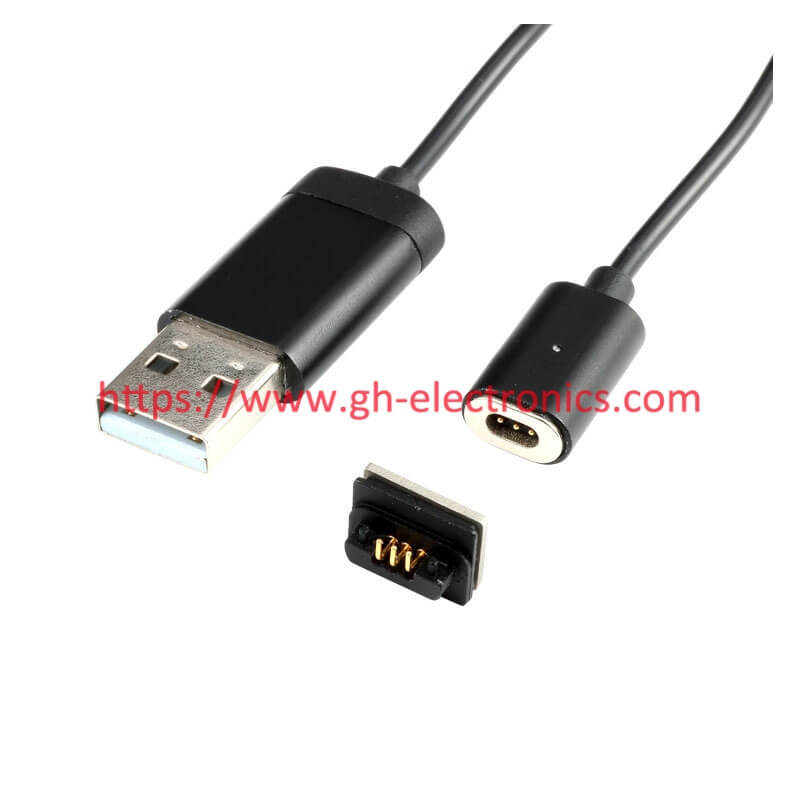

Magnetic USB Charging Cable, Smart Small Home Appliance Magnetic Charging Cable

Product Category：Pogo Pin Magnetic Cables
Product Description：
The magnetic charging wire is composed of a spring needle magnetic connector and connecting wires, and is an optimized upgrade solution based on traditional charging+data signal transmission applications such as I/O, Micro USB, Type-C, HDMI,
Publish Date: 2021-02-08
INQUIRY

Place of Origin: Guangdong, China	Brand Name: GH / OEM
Product Category: Magnetic USB charging cable	Application: communication, charging, data transfer

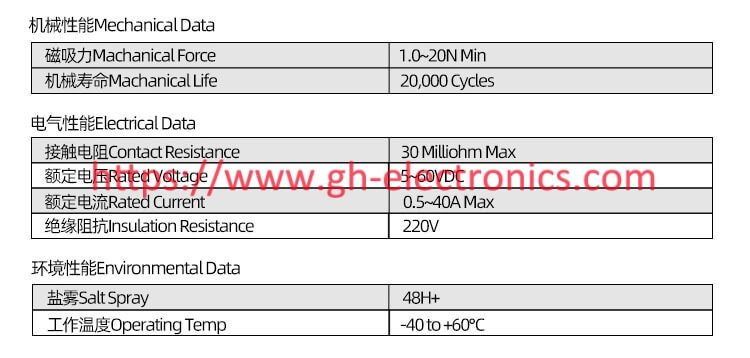

Machanical Force: 1.0 ~ 20N Min	Machanical Life: 20,000 Cycles
Contact Resistance: 30 Milliohm Max	Insulation Resistance: 220V
Salt spray test: 48H+	Contact impedance: 30m
Color: black / white/ optional	Maximum compression height: 1.5--1.0mm
Rate Voltage: 5~60VDC	Rate current: 0.5~40A MAX
Resilience: 60gf--15gf	Gold-plated (film thickness): AU 3U"
Certification: UL, RoHS, REACH	Packing: PE bag / polybag / carton
Operating temperature: -40C to 60C+	Customized: accepted / according to your drawing
Samples: available	MOQ: 100pcs

Product advantages

1. More secure, convenient, and fashionable

2. Intelligent power-off protection for plug-in connectors

3. Plug free adsorption connection

4. Super strong magnetic adsorption, changing the way traditional connectors are used

5. More efficient, synchronous charging and transmission

6. Good waterproofing, with a maximum waterproof level of IPX8

With the continuous development of differentiated competition in the market, user experience has become the pursuit of intelligent product designers. Following traditional plug-in self-locking connector products, a new connection solution is gradually being applied to the high-end intelligent product market, which is the magnetic suction charging cable. The magnetic charging wire is composed of a spring needle magnetic connector and connecting wires, and is an optimized upgrade solution based on traditional charging+data signal transmission applications such as I/O, Micro USB, Type-C, HDMI, RJ45, etc. This connection scheme has the advantage of a high lifespan of over 50000 spring needle connectors, as well as multiple advantages such as automatic adsorption connection, convenient removal of adsorption interfaces, difficulty in driving the machine, and waterproof design.
