Power Cords

Standard IP55 Waterproof Swiss Power Supply Cable,100-240V 50/60Hz 1.5A

  • Product Category：Power Cords
  • Product Description：

    1) Output: 28V 1.3A; 2) Input: 100-240V 50/60Hz 1.5A; 3) Input wire: 3 *0.75mm2 L=0.8M ; 4) Waterproof grade lP55, requires adhesivetreatment and grounding

  • Publish Date: 2024-06-07
  • INQUIRY


 Place of Origin: Guangdong, China  Brand Name: GH / OEM
 Product Category: Power Cord  Application: Charging Power Cable
 Power Output Voltage: 28Vdc 1.3A  Input Rated Voltage:100~240Vac
 Power Output Peak：44W  Input Frequency Rated Frequency: 50/60Hz.
 Output power：36.4W  Input Current: 0.8Amps max
 Waterproof grade: lP55  Ac Leakage Current: 0.25mA Max.At240Vac input
 Certification: RoHS, CE  MOQ: 100PCS
 Samples: available









IP55 mandatory, outdoor product a charging cable with TE plug.
Technical specification of the charging cable

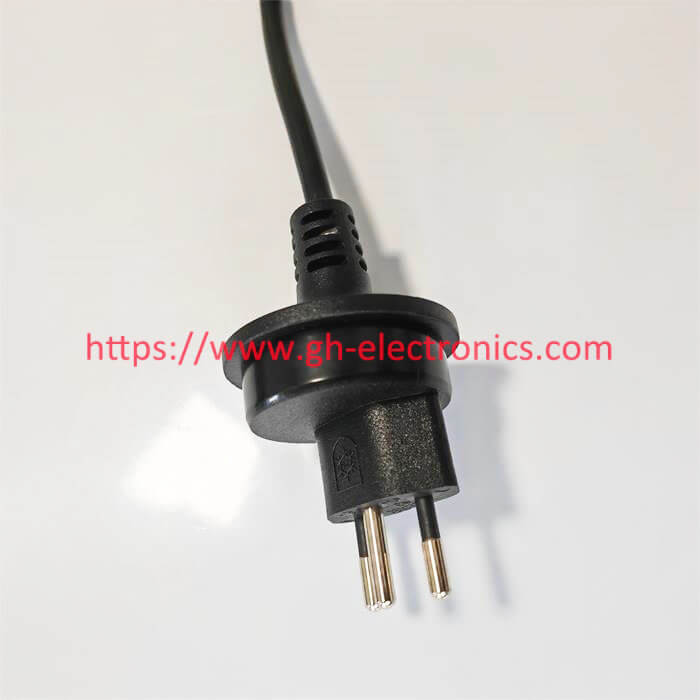

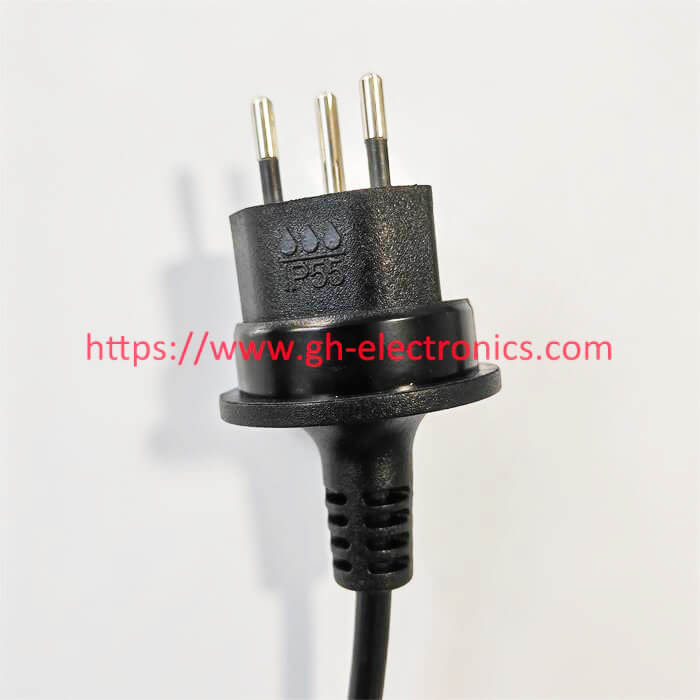

Plug according to IP55 standard for the Swiss market
Outdoor use:

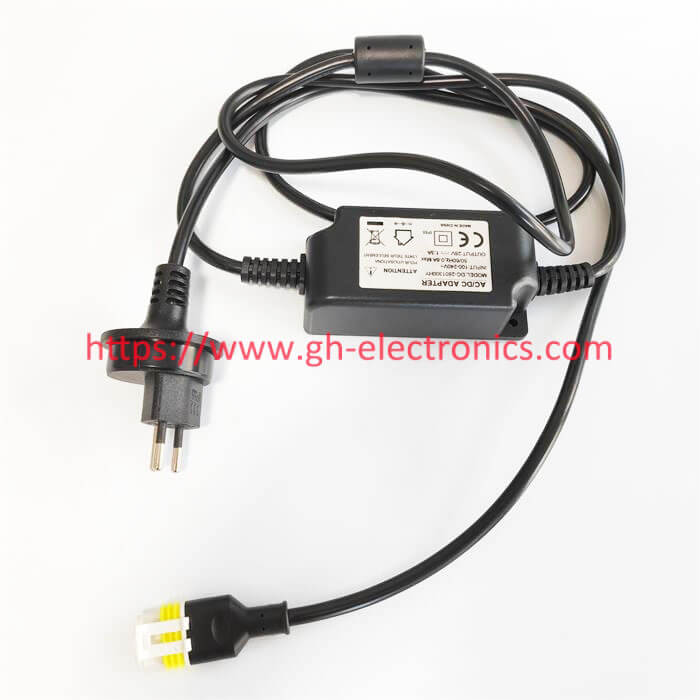

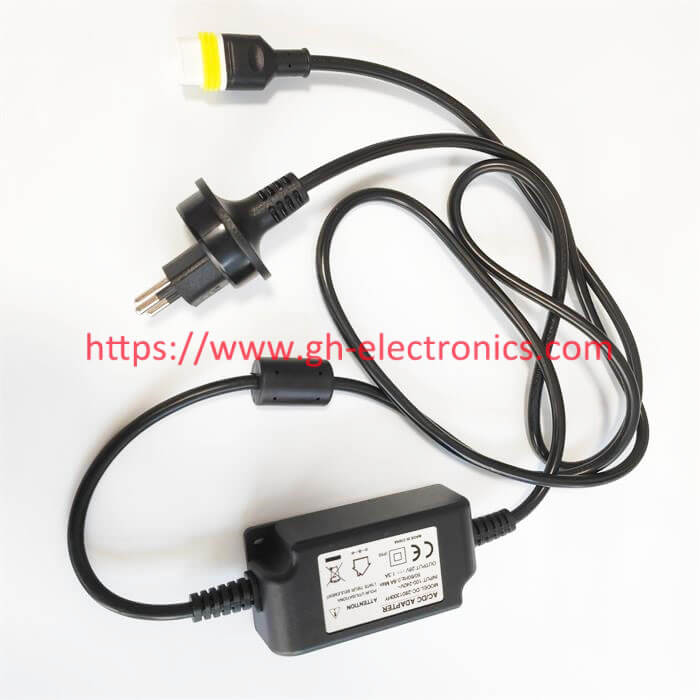

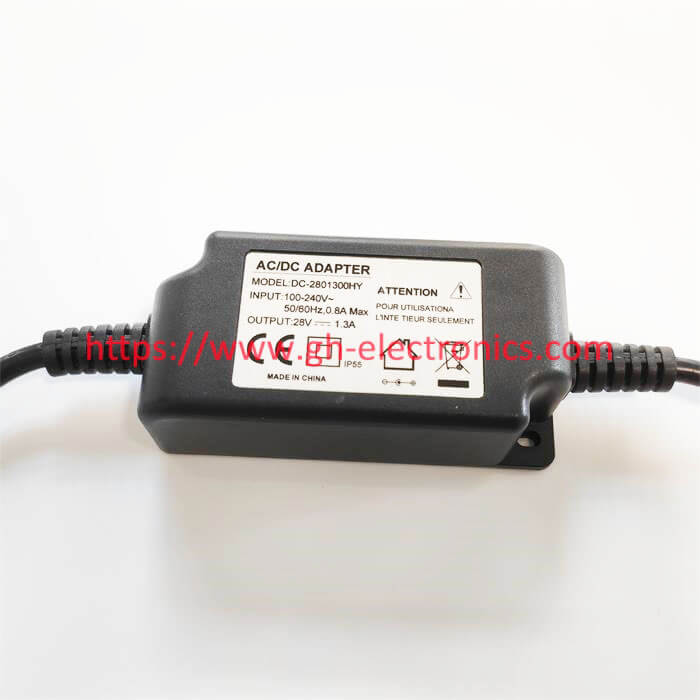

Power supply according to specification (see picture), Output: 28V, 1300mA
Cable:suitable for outdoor use
Cable length total: 120cm , length from socket plug to power supply: 80cm

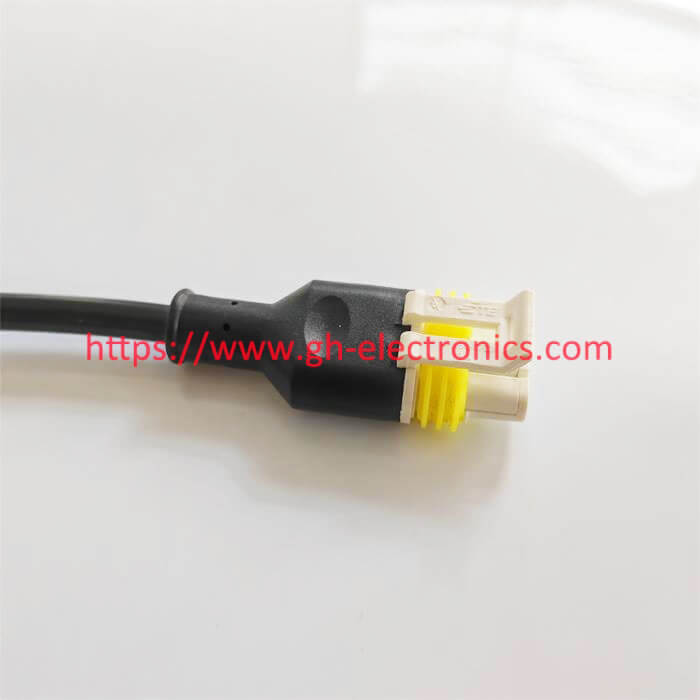

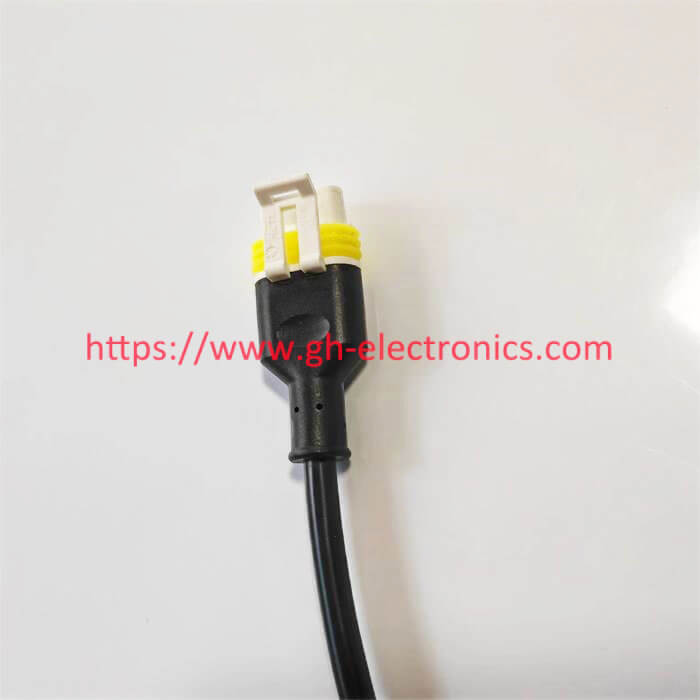

TE Connect plug AMP Superseal 1.5 SRS, 3P, exact specification see supplementary sheets
1745083-1 Plug; seals, contacts and attachments according to TE catalog suitable for
Connector
- CE- Standard, other see specifications on power supply unit

1.DC Cable：2464 18# 0.3M Magnet Ring At the center of the wire, Connector: TE 1745083-1,
2.AC Cable：3*0.75 0.8M Switzerland plug
