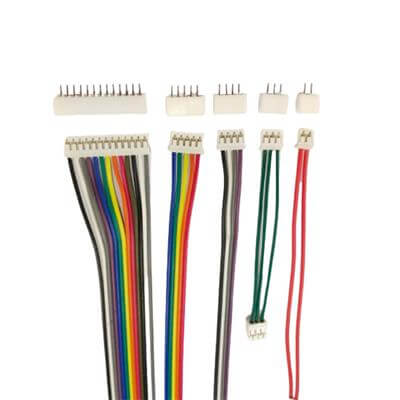

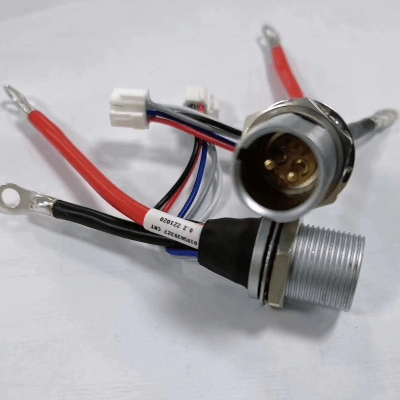

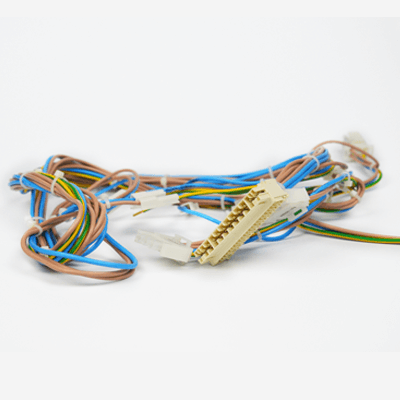

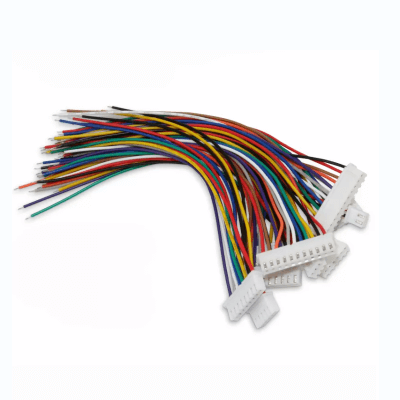

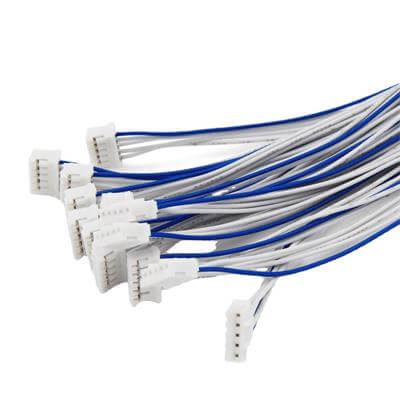

A wiring harness, also commonly referred to as a cable assembly or wiring assembly, is a comprehensive set of wires and cables bundled together, often with connectors and other components, to transmit power and signals within a system or device. These harnesses are crucial in a wide range of applications, from automotive vehicles to electronic devices, industrial machinery, and even aerospace systems.
Manufacturing Process
The manufacturing of wiring harnesses involves several key steps:
1. Design and Engineering: This includes determining the wire gauge, insulation material, connector type, and overall layout of the harness. Engineers also use CAD software to create detailed drawings and models of the harness.
2. Cutting and Stripping: The wires and cables are cut to the required lengths and stripped of their insulation at the termination points.
3. Crimping and Terminating: Terminals are crimped onto the stripped ends of the wires, and connectors are assembled.
4. Routing and Assembly: The wires and cables are routed through the system according to the design, and protective materials and support structures are added.
5. Testing and Quality Control: The harness is tested for electrical continuity, insulation resistance, and other critical parameters to ensure that it meets the required specifications.
Applications
Wiring harnesses are found in almost every industry and application:
1. Automotive: They are essential for transmitting power and signals within vehicles, including lighting, starting, ignition, and infotainment systems.
2. Electronics: They connect various components within devices such as computers, smartphones, and appliances.
3. Industrial Machinery: They provide power and signal transmission for factory automation, robotics, and other industrial systems.
4. Aerospace: They are critical for aircraft avionics, flight control, and power distribution systems.
