RS232 D-SUB SCSI Cables

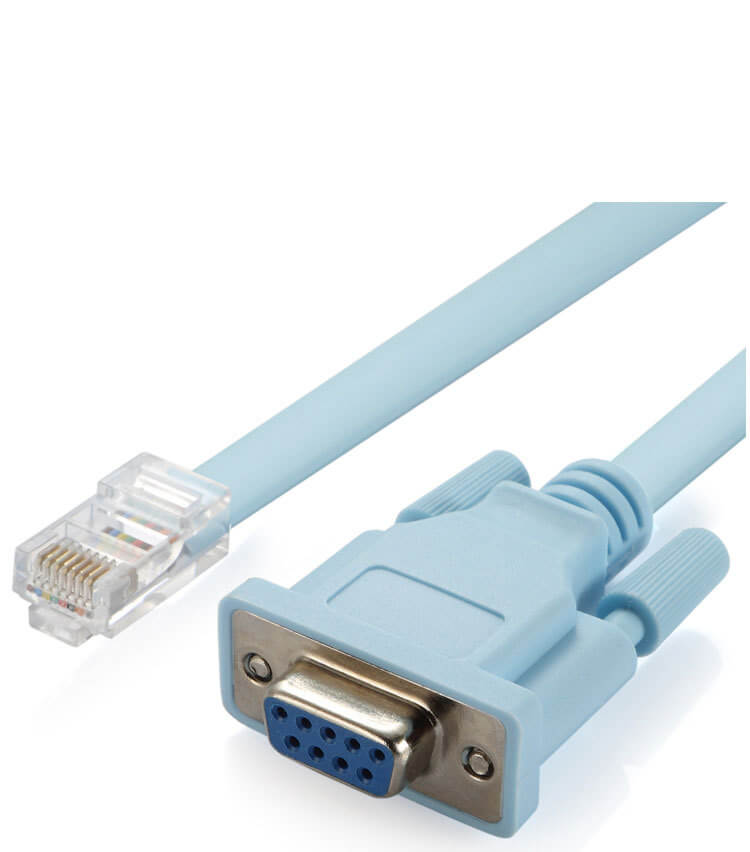

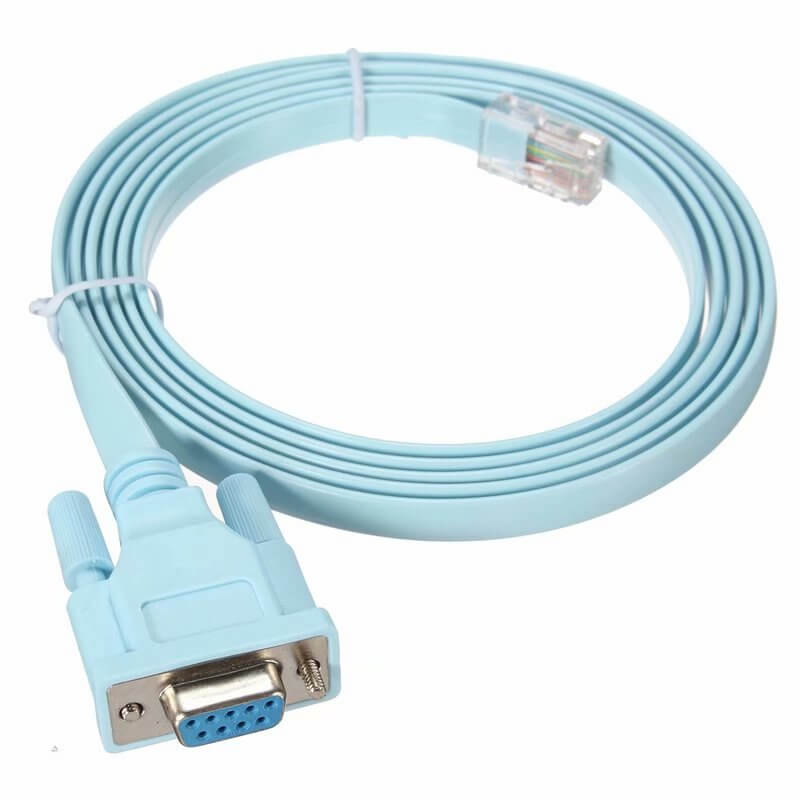

Cisco Console RJ45 to RS232,RJ45 to DB9 Pin Serial Port Female to RJ45 Male Cat5 Ethernet LAN Console

Product Category：RS232 D-SUB SCSI Cables
Product Description：
This is a control line for routers and switches produced by Cisco. It can be used not only on Cisco equipment, but also on routers and switches of other brands
Publish Date: 2016-07-11
INQUIRY

Place of Origin: Guangdong, China	Brand Name: GuangHui Electronics / OEM
Cable type: RS232 Serial Cables	Application: Router, Console Configuration Cable

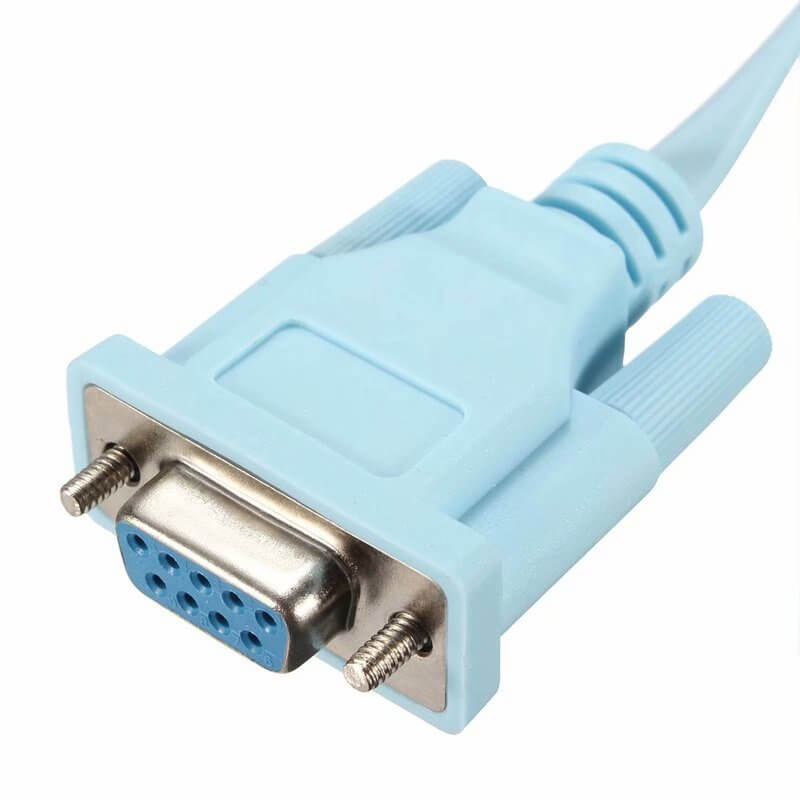

Connector1: DB9 Female	Connectors 2: RJ45 Male
Color: light blue/ Optional	Conductor type: High purity oxygen-free copper
Cable length: 1.5M / Optional	Wire guage: 24AWG, 26AWG, 28AWG etc optional
Certification: RoHS, CE	Process: injection molding
Jacket: PVC	Packing: PE bag
Samples: available	Product weight: 0.1kg
MOQ: 500PCS	Standards: UL, CSA, ISO 9001 manufacturer

This RJ45 to serial port RJ45 to 9-hole RJ45 to RS232 cable Ethernet port to serial cable

It can be used in Cisco console configuration line, RJ45-serial port, no need to turn head. General Cisco network equipment has a CONSOLE interface, which is used to set up the equipment or operate at a lower level.

This is a control line for routers and switches produced by Cisco. It can be used not only on Cisco equipment, but also on routers and switches of other brands, because many of the machines of other brands have the same structural principles as Cisco, so in general In other words, if you want to buy one side with 9 holes (232 ports) and the other side with rj45 (network cable port), this line is universal!

PIN OUT

conn2 conn1

1------------8

2------------6

3------------2

4+5---------5

6------------3

7------------4

8------------7
