D-SUB Cable Assembly

Custom DB9 to Mini Din Cable | D‑SUB Cable Assembly for Serial Signal Connection

  • Product Category：D-SUB Cable Assembly
  • Product Description：

    Factory custom DB9 to Mini Din cable assembly under D‑SUB series. Support custom pinout, length & housing for industrial serial signal wiring, sample service available

  • Published Date: 2016-07-12
  • INQUIRY


 Place of Origin: Guangdong, China  Brand Name: GuangHui Electronics / OEM
 Cable type: RS232 Serial Cables  Application: computer,projector...
 Connector1: DB9 Female  Connectors 2: 8pin Mini Din Male
 Color: light blue/ Optional  Cable spc: UL2464 28awg*9c + AE
 Cable length:  1.2 M/1.5M/2M / Optional   Wire guage: 24AWG, 26AWG, 28AWG etc optional
 Rated voltage: 300V  Rated temperature: 80 Celsius
 Certification: RoHS, CE  OD: 6.0MM
 Jacket: PVC  Packing: PE bag
 Samples: available  Product weight: 0.1kg
 MOQ: 500PCS  Standards: UL, CSA, ISO 9001 manufacturer













Pin Out
DB9-F.......DIN8-M
1---------1
2---------3
3---------5
4---------OPEN
5---------4 and 8
6---------1
7---------2
8---------1
9---------OPEN
SHEILD---------OPEN
OPEN---------6

1. We use brand new wear-resistant pvc material, which is resistant to bending, not easy to break, and has a long service life.

2. We use oxygen-free pure copper core with bright color, low resistance and good conductivity.

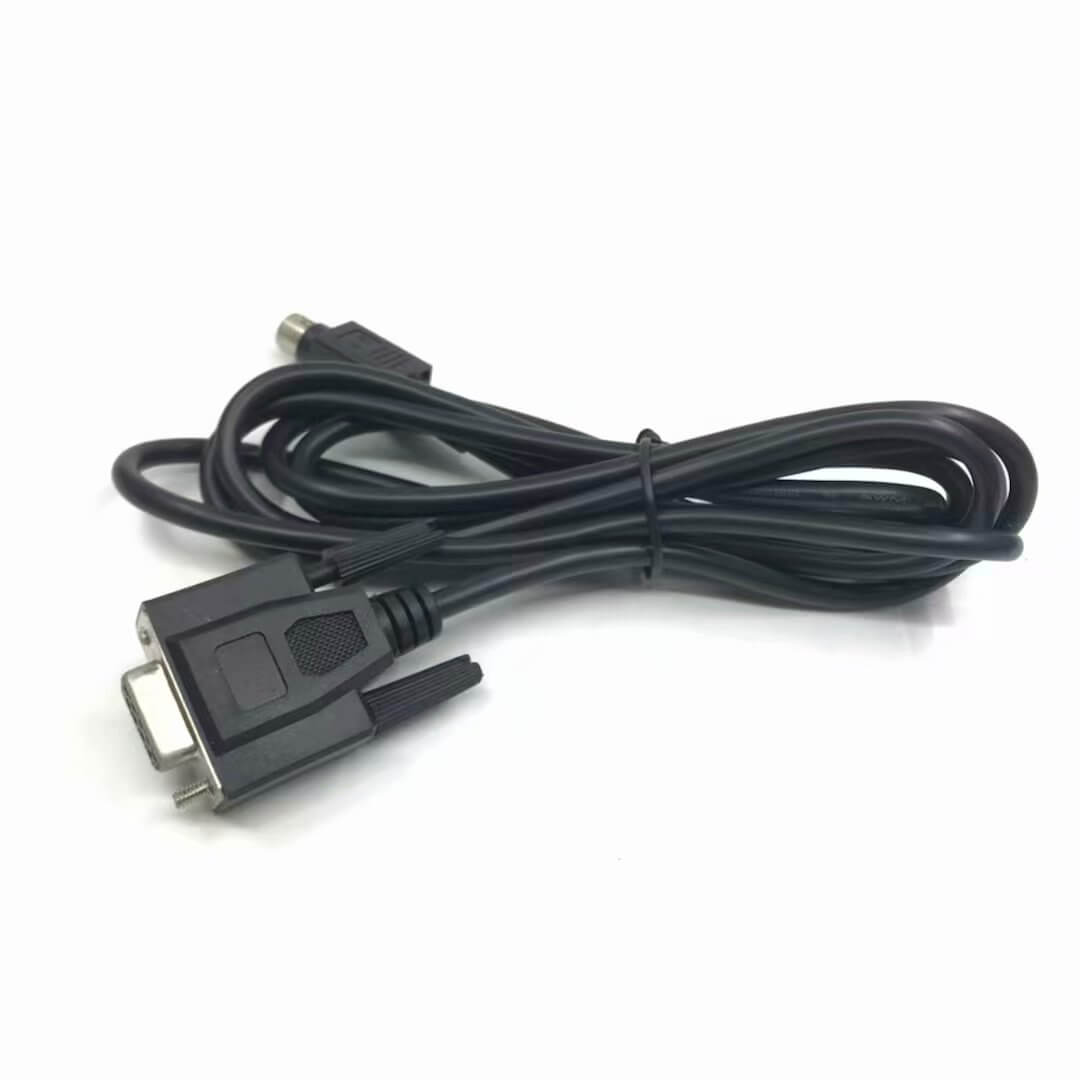

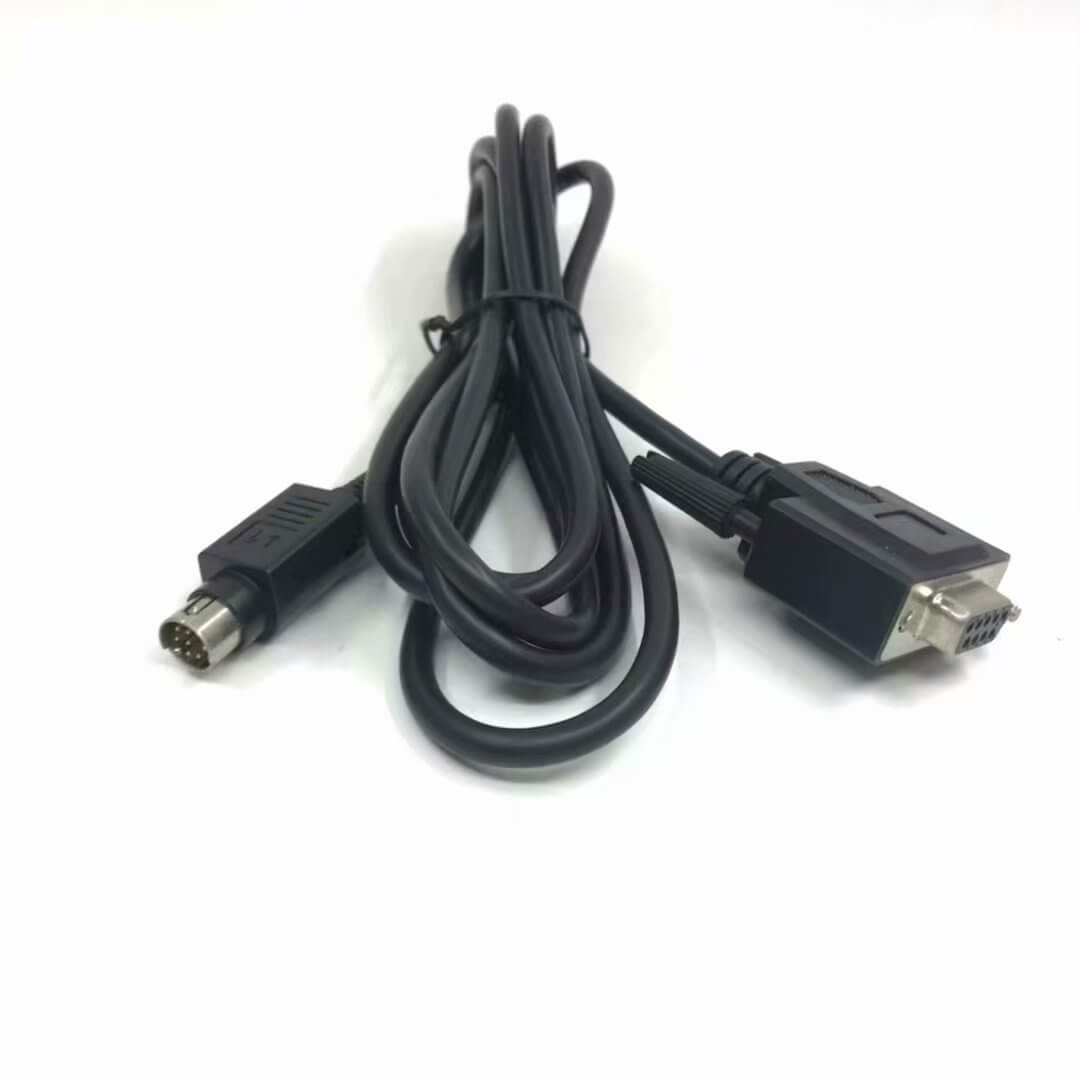

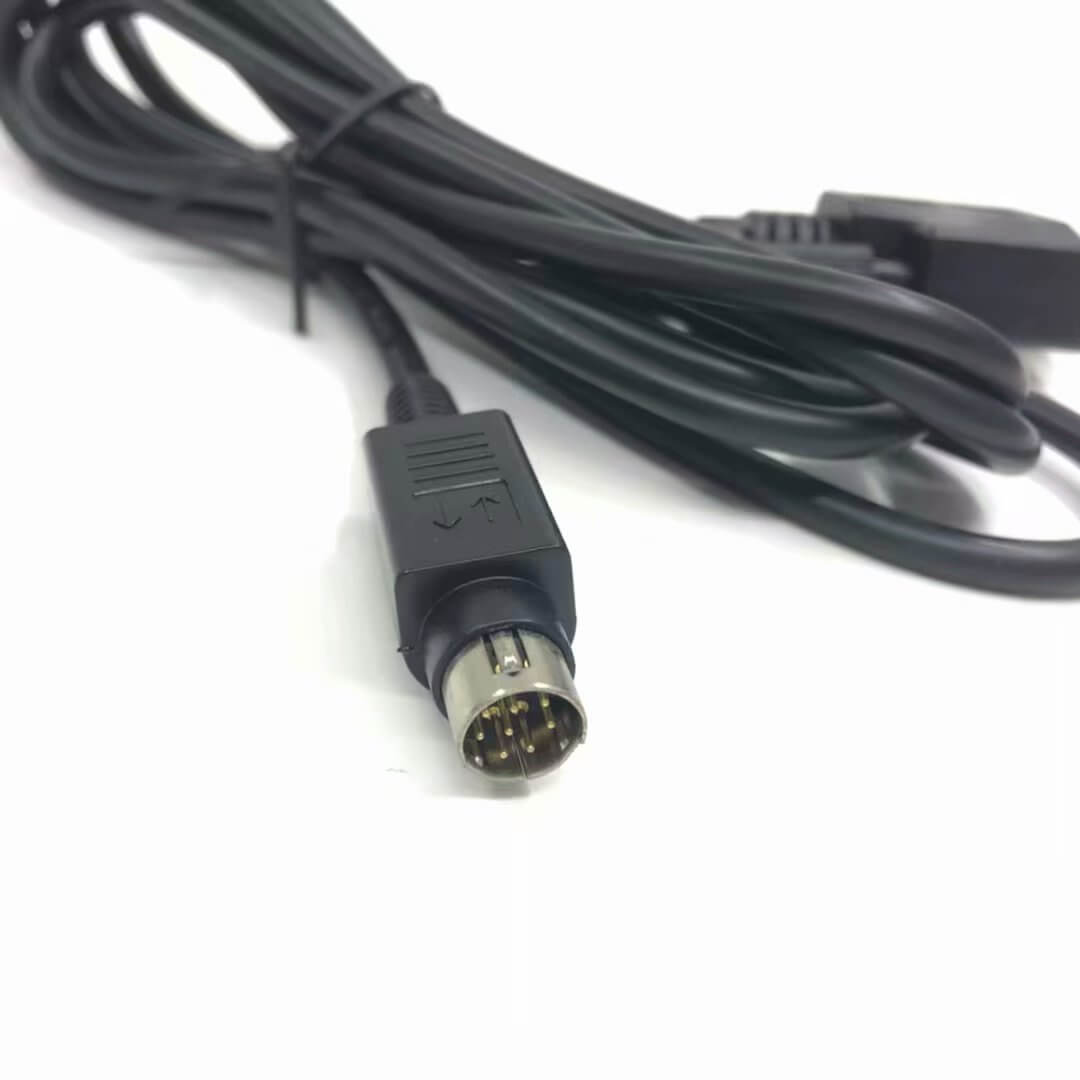

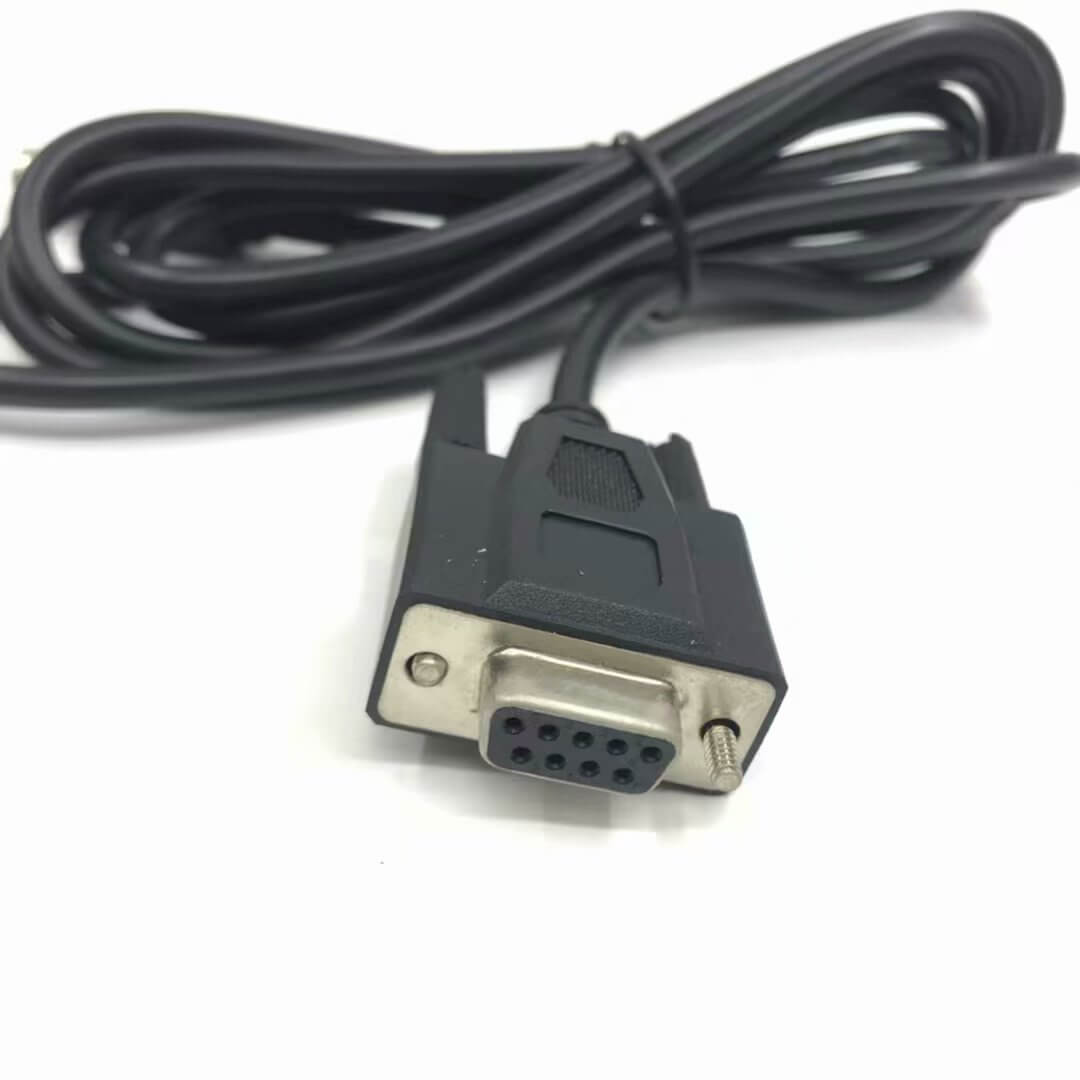

Custom DB9 to Mini Din cable assembly, D‑SUB serial signal wiring harness factory product shotDB9 male female to Mini‑Din connector cable close‑up, industrial custom D‑SUB wire harnessShielded DB9 to Mini Din adapter cable full coiled view for industrial equipment interconnectionDB9 and Mini‑Din connector end detail, custom pinout D‑SUB cable assembly for serial communication
