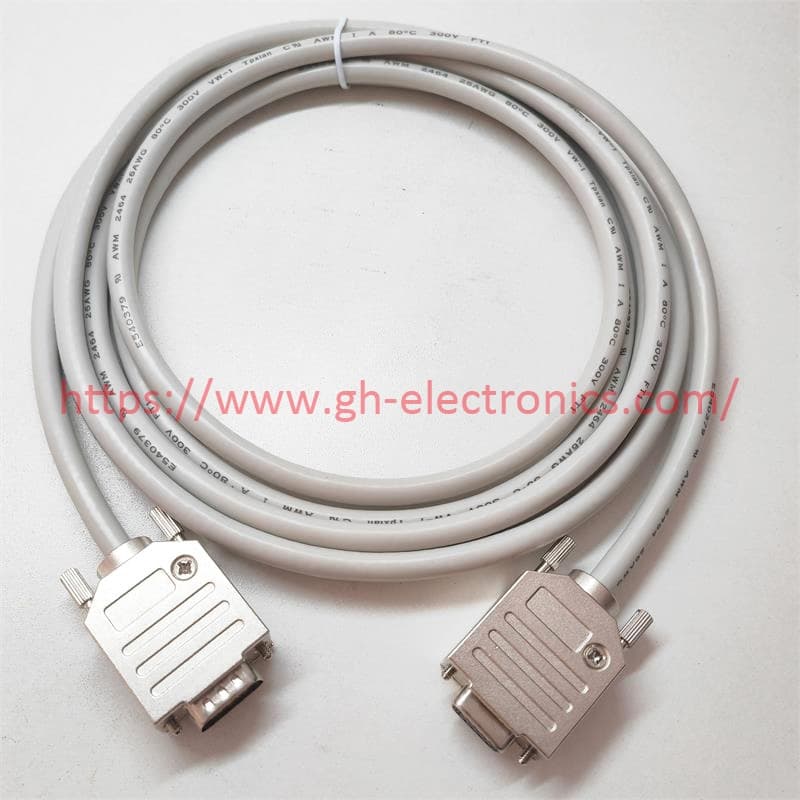

Belonging to D‑SUB cable assembly series, this HDB15 male to female extension cable is a widely‑adopted industrial signal extension harness. Built‑in full shielding structure cuts electromagnetic interference, delivering stable signal transmission in complex equipment environment. As a direct manufacturer, we support full‑range custom D‑SUB wire harness solutions, including pin assignment, cable gauge, housing material, cable length and overmolding modification to match unique project requirements.
Specifications

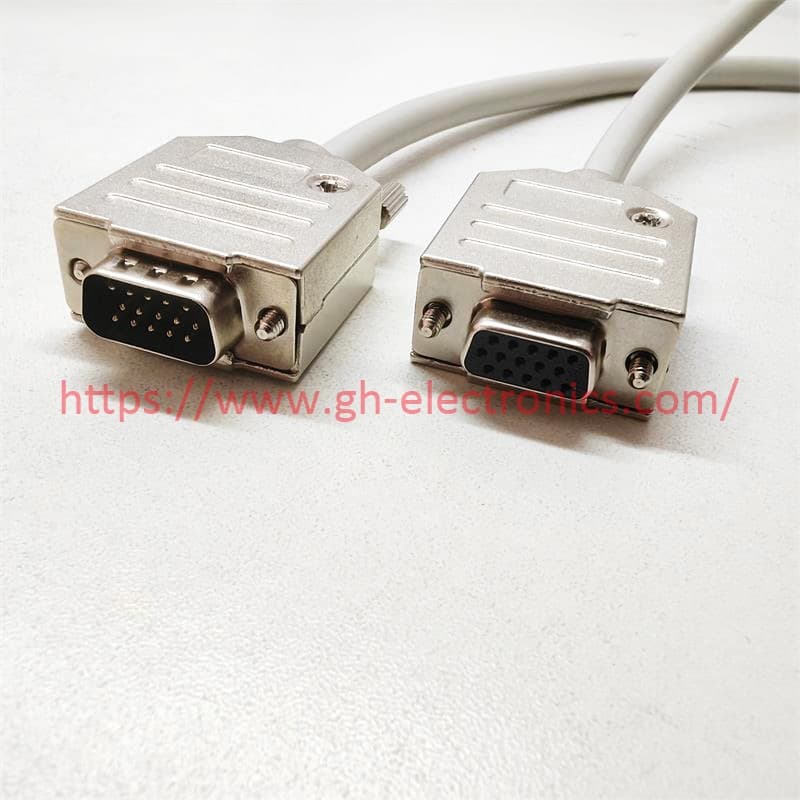

✅ Connector: HDB15 Male to HDB15 Female
✅ Housing: Metal shielded shell with locking screws
✅ Cable type: Shielded multi‑core signal cable
✅ Voltage rating: 300V
✅ Working temperature: ‑20℃ ~ +80℃
✅ Custom options: Wire gauge, total length, pin‑out, shell color, overmolded processing
Core Features
✅ Secure locking screws prevent loose connection during equipment vibration
✅ Integrated shielding reduces signal distortion for long‑distance signal extension
✅ Robust metal shell resists abrasion for frequent assembly‑disassembly

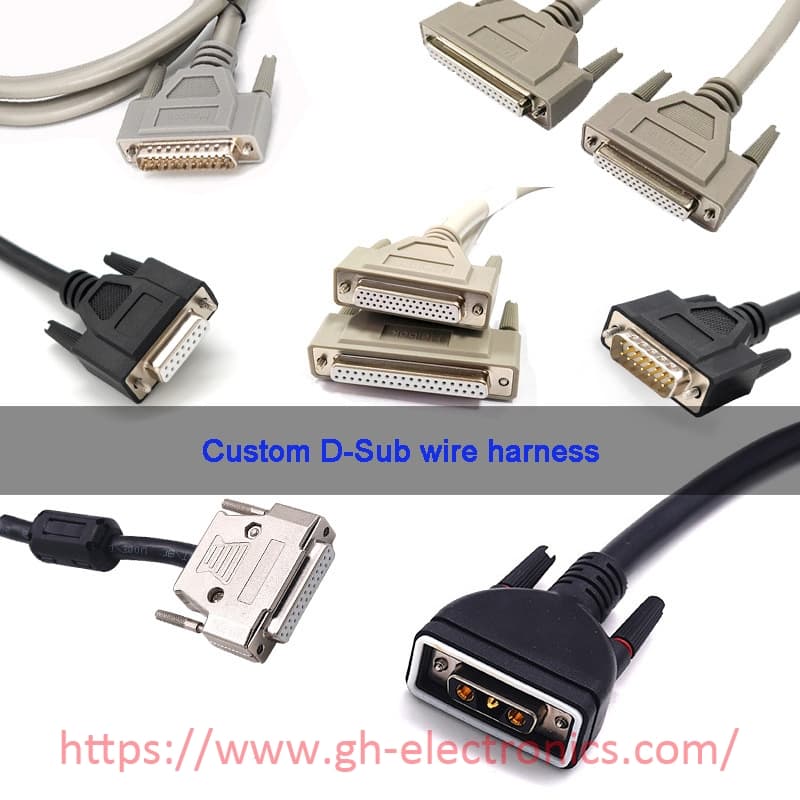

✅ Factory customizable: adjust wiring layout, cable length and connector housing per customer drawing or sample
✅ Compatible with mainstream D‑SUB interface devices, easy on‑site installation
Applications & Use Scenarios
Ideal for signal extension and equipment interconnection across multiple industries:
✅ Industrial control equipment: PLC, servo driver, motion controller signal link
✅ Testing & measurement instruments: laboratory test device data transmission
✅ Automation machinery: machine‑side signal wiring inside production equipment
✅ Medical device peripheral signal connection
✅ Custom cabinet internal wiring for industrial host, switching equipment
