Mini Din Cables
ISO9001 China cable assembly manufacturers produce 8p din connector to PH2.0 electronic piano cables
- Product ID：Mini Din Cables
- Skype：+86 137 5185 9234
- Phone: +86 137 5185 9234
- Tel: +86 137 5185 9234
- Email: sales2@gh-electronics.com
- Time: 2020-06-02
-
INQUIRY
|
Place of Origin: Guangdong, China |
Brand Name: GH / OEM |
|
Product Category: Din cables |
Application: Electronic piano pedal cables |
|
Rated temperature :80 degrees |
Rated voltage :300V |
|
Color: Black / White / Optional |
Jacket: PVC |
|
Cable length: 1.5 meter / Optional |
Cable OD: 5.5MM |
|
Certification: UL, RoHS, CE, RoSH2.0 |
Wire spec: 26awg*5c+ Al+ E |
|
Customized: accepted |
MOQ: 100PCS |
|
Samples: available |
|

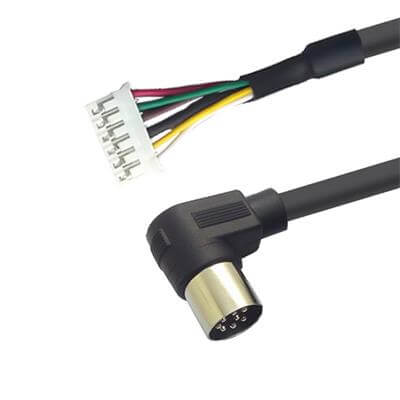

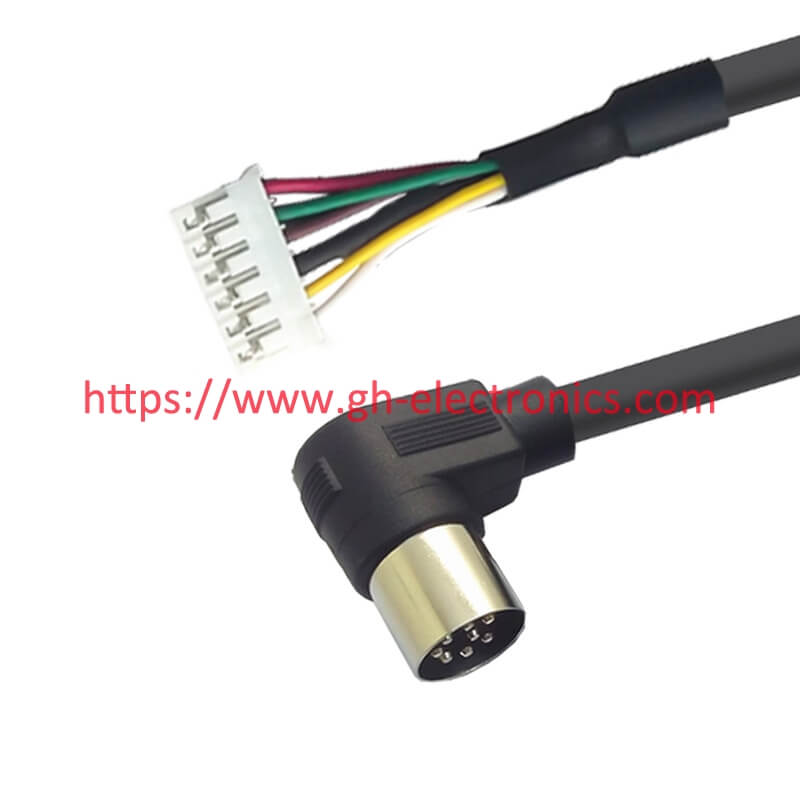

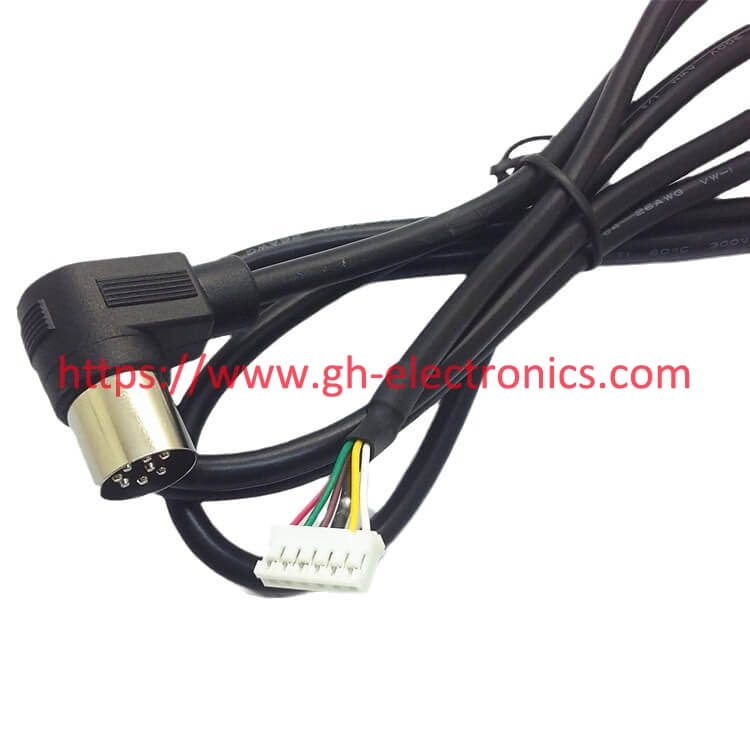

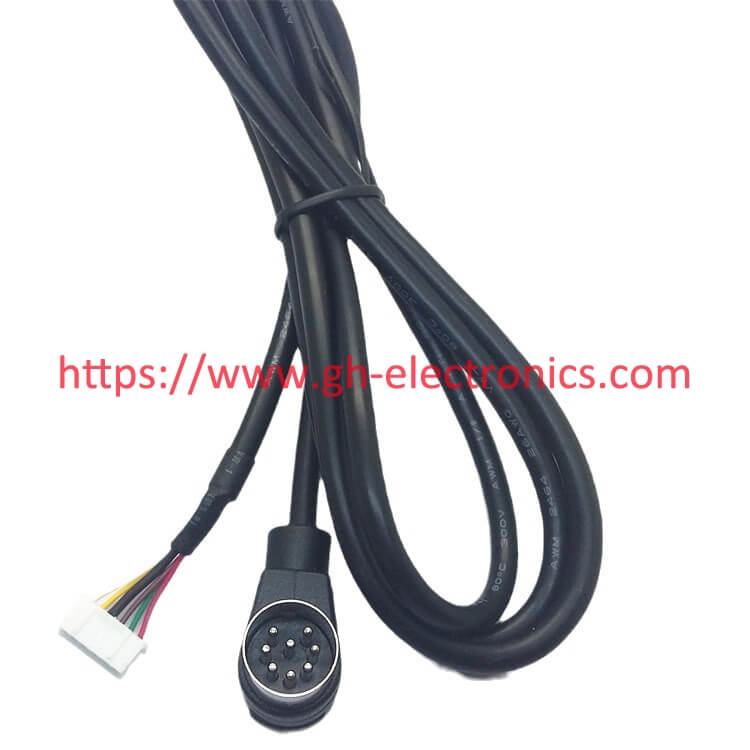

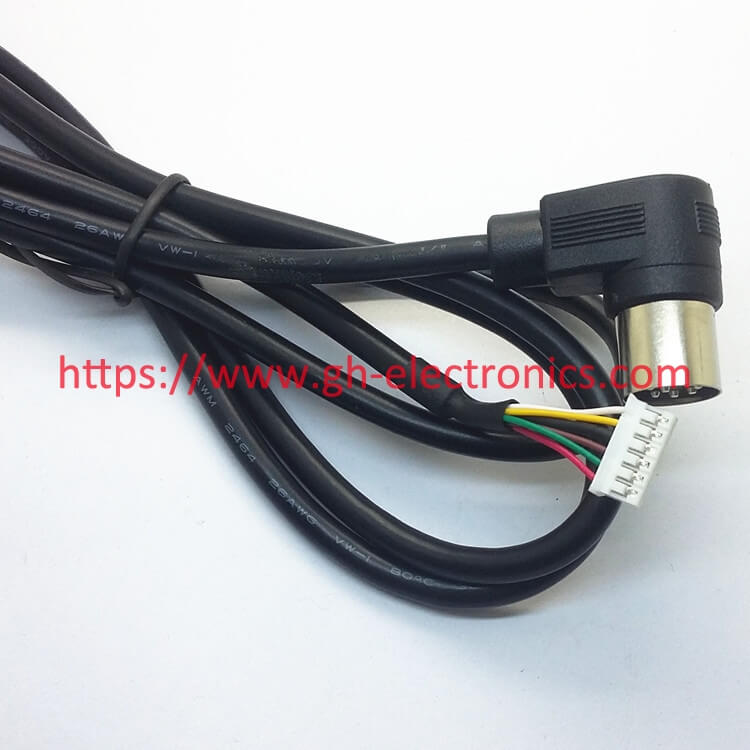

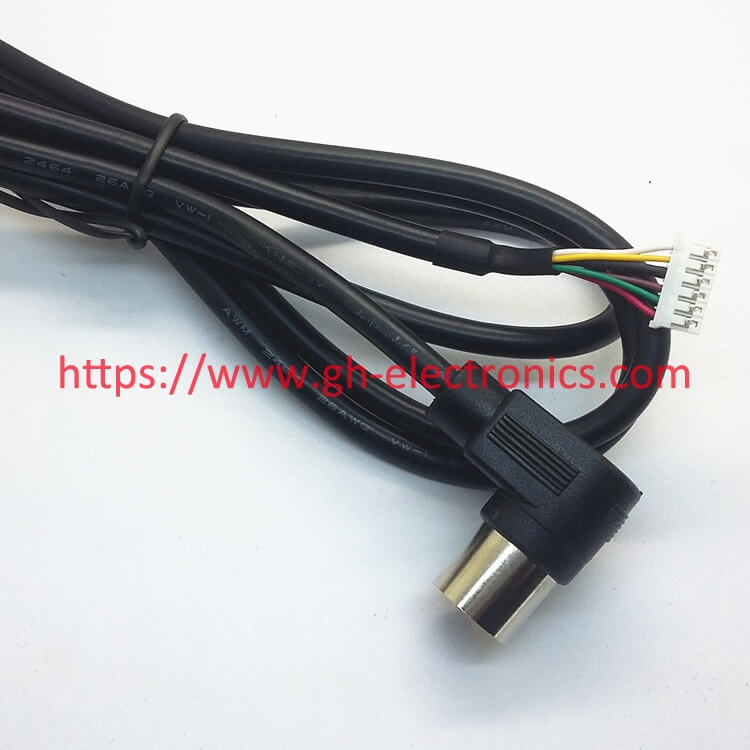

1. This DIN 8P to PH2.0 cable is widely used for Electronic piano, using environmentally friendly PVC material, 100% test before delivery.
2. This serial cable is fully molded and shielded to reduce EMI/RFI interference.
3. All relevant materials are complied with RoHS directive.
We often come into contact with DIN connector in our daily life, from audio and video to power supply, serial and data.
Din connectors can be divided into din connectors and mini din connectors according to their size, with mini din connectors having smaller overall dimensions. The two most common arrangements for mini DIN are 6-pin and 4-pin. 6-pin mini is used for PS/2 connectors and typically appears on many old keyboards and mice. 4 pins are used for S-video connections on various home theater devices.
According to pins, it can be divided into 3 pins, 4 pins, 5 pins, 6 pins, 7 pins, 8 pins, and 13 pins. Our company has various DIN connector molds, including straight ends and elbows, and has the ability to produce various DIN connector wires. Welcome to inquire.
