In the intricate world of modern electronics, where devices are shrinking in size yet expanding in capability, the humble components that link everything together are paramount. Among the most critical and ubiquitous of these are JST connectors and their associated cables. If you've ever opened a smartphone, drone, RC car, or medical device, you've almost certainly encountered their compact, reliable form. This article explores what makes JST a leading name in the interconnection industry.
JST connectors are a family of electrical connectors characterized by their specific locking mechanisms, pitch sizes, and wire termination styles. They are not a single product but a vast series, each designed for particular applications and requirements.
Key Characteristics:
1. Pitch: This is the distance between adjacent pins (center-to-center), measured in millimeters. JST specializes in fine-pitch connectors, with common sizes including 2.54mm, 2.00mm, 1.25mm, 1.00mm, and even sub-millimeter pitches like 0.8mm. This allows for dense circuitry in compact devices.
2. Housing & Locking Mechanism: Connectors are made of high-grade plastic (like PA6T, PA9T) for durability and heat resistance. They feature secure locking systems—such as the classic "friction lock" (a simple press-fit) or a "push-lock" with an audible click and a release tab—to prevent accidental disconnection from vibration or movement.
3. Contacts: The metal terminals are typically phosphor bronze or brass, plated with tin or gold for excellent conductivity and corrosion resistance. They are designed for solderless crimping, a fast and reliable termination process ideal for automated assembly.
4. Polarization: Most JST connectors are designed to be polarized, meaning they can only be connected in one correct orientation. This prevents incorrect mating and potential damage.
Popular JST Series
. PH Series (2.0mm pitch): Perhaps the most recognizable. The white housing with a simple friction lock is ubiquitous in battery connections for drones, RC models, and small PCBs.
. XH Series (2.54mm pitch): Slightly larger than PH, commonly used for connecting power supplies, battery packs, and internal wiring in consumer electronics.
. SH Series (1.0mm pitch): An ultra-fine-pitch series often found in compact devices like cameras, sensors, and wearable technology.
. GH Series (1.25mm pitch): Popular in applications requiring a balance between small size and current capacity, such as laptop battery packs and LCD screens.
. ZH Series (1.5mm pitch): Another fine-pitch option for space-constrained PCB-to-wire connections.
. SM Series (Surface Mount): Designed for automated PCB assembly, these connectors are soldered directly onto the board's surface.
JST Cables: The Essential Partner

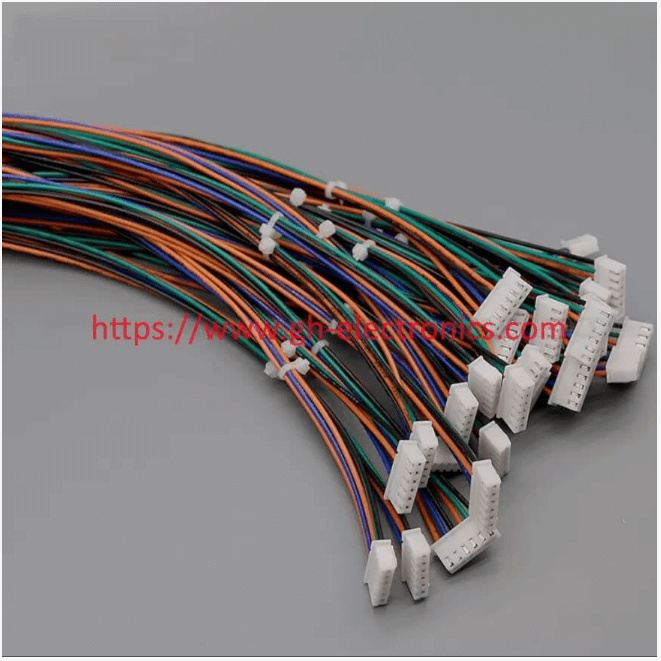

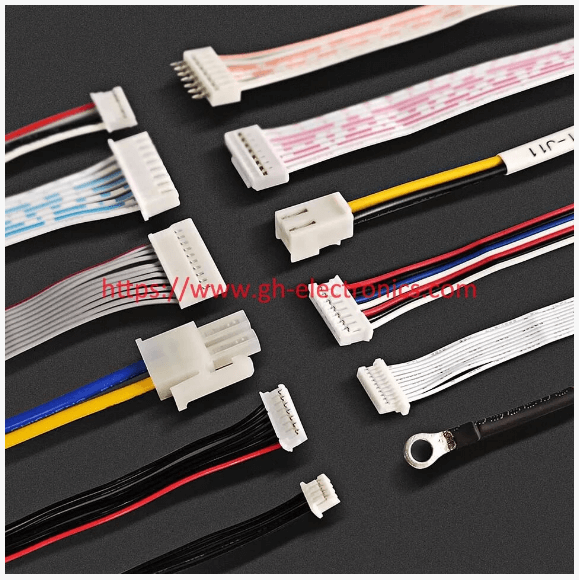

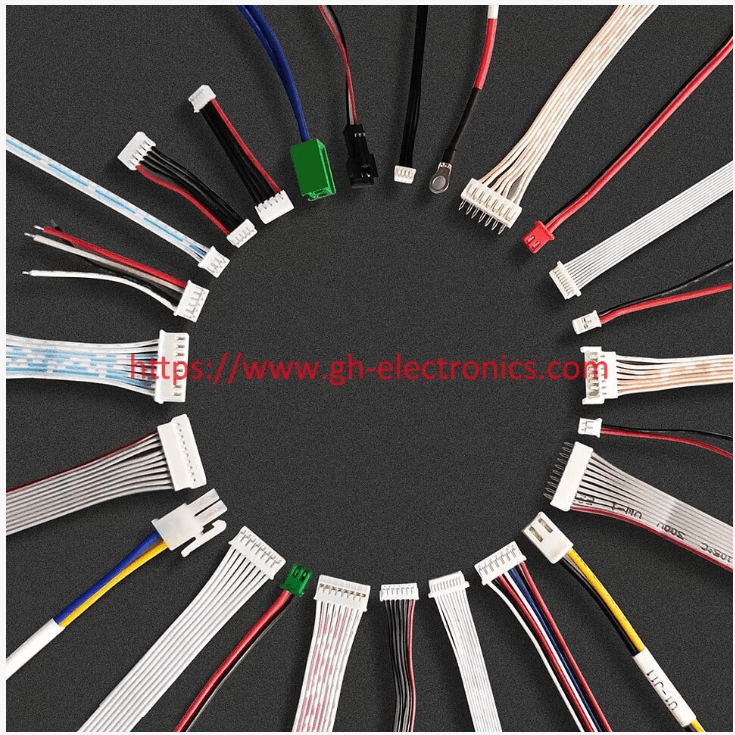

JST cables refer to pre-assembled wire harnesses or loose crimped terminals that mate with JST connectors. They come in two primary forms:
1. Pre-Crimped Wires/Assemblies: These are factory-made cables with the JST connector housing and terminals already crimped onto stranded or solid-core wire. They offer guaranteed quality and are perfect for prototyping, repairs, or when manual crimping is impractical.
2. Loose Components (for Custom Assembly): This involves purchasing bulk wire, individual terminals (contacts), and connector housings separately. Using a specialized crimping tool, the terminal is permanently attached to the stripped wire, which is then inserted into the housing. This method is essential for custom cable lengths and large-scale production.
Why Choose JST?
. Reliability: Engineered for consistent performance and secure connections, even in demanding environments.
. Space Efficiency: Their fine-pitch designs are crucial for today's miniaturized electronics.
. Industry Standard: Widely adopted, ensuring good availability, compatibility knowledge, and support.
. Mass-Production Ready: The crimp-style termination is perfectly suited for high-speed, automated manufacturing processes.
. Variety: An extensive catalog covers virtually any low-voltage, low-to-moderate current application.
Common Applications
JST connectors and cables are the silent workhorses in:
. Consumer Electronics: Phones, laptops, gaming consoles, printers.
. Hobbyist & Robotics: Drones, RC vehicles, 3D printers, Arduino/Raspberry Pi projects.
. Automotive: In-car infotainment systems, sensors, lighting.
. Industrial Equipment: Control systems, sensors, instrumentation.
. Medical Devices: Portable monitors, diagnostic tools.
Conclusion
JST connectors and cables exemplify the principle that great design lies in the details. By providing a robust, scalable, and miniaturized solution for electrical interconnection, JST has become an indispensable part of the electronic ecosystem. For engineers designing the next groundbreaking device or for hobbyists bringing a project to life, understanding and utilizing the right JST components is a fundamental step toward creating a reliable and functional product.
