Product Overview

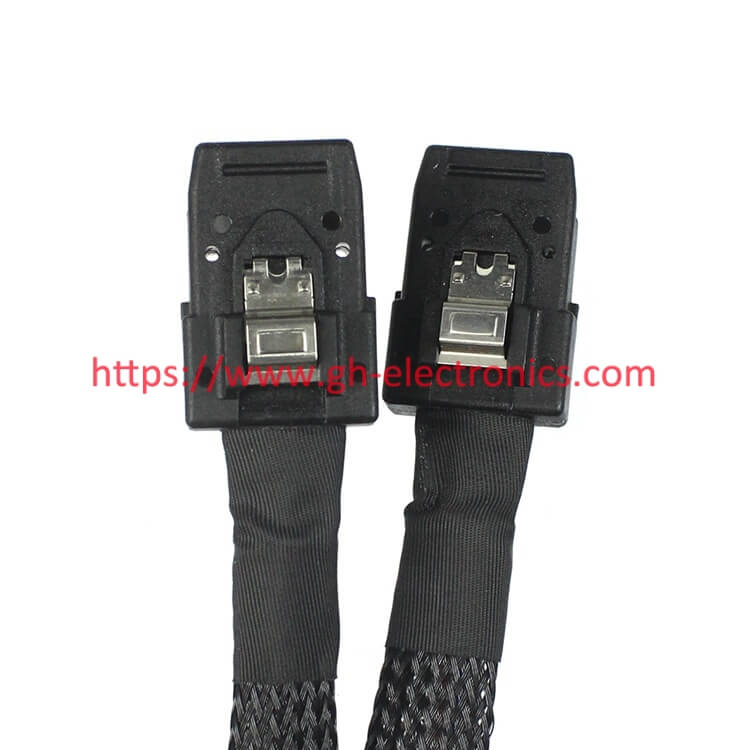

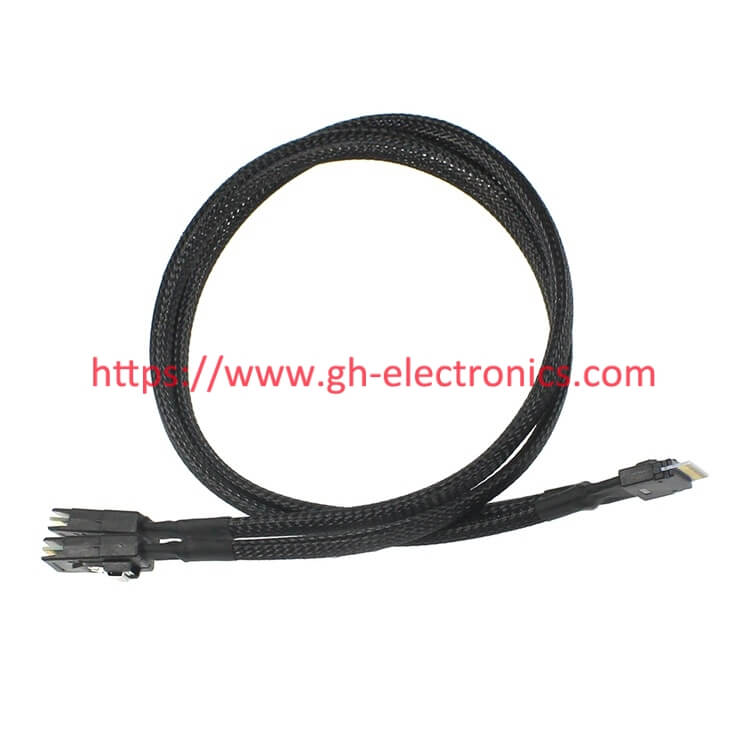

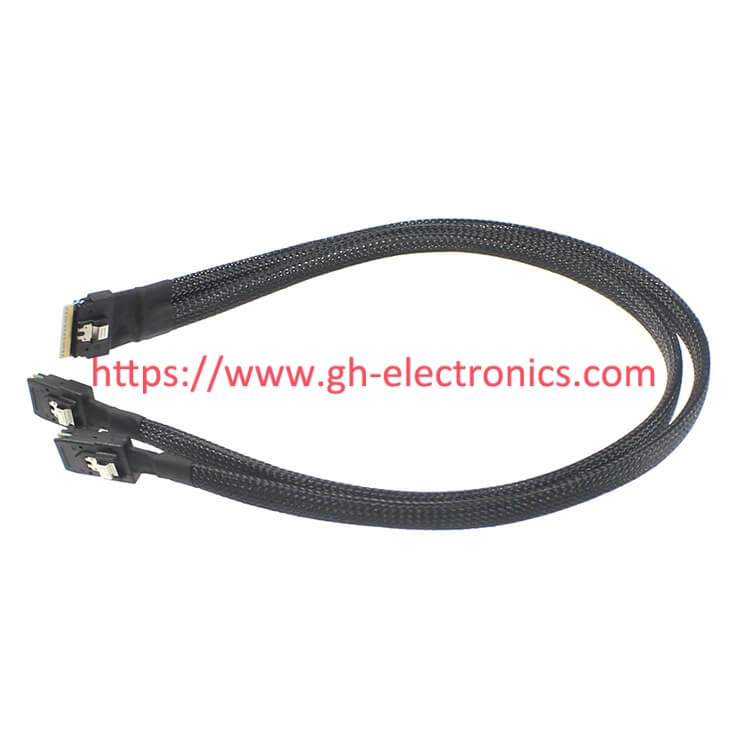

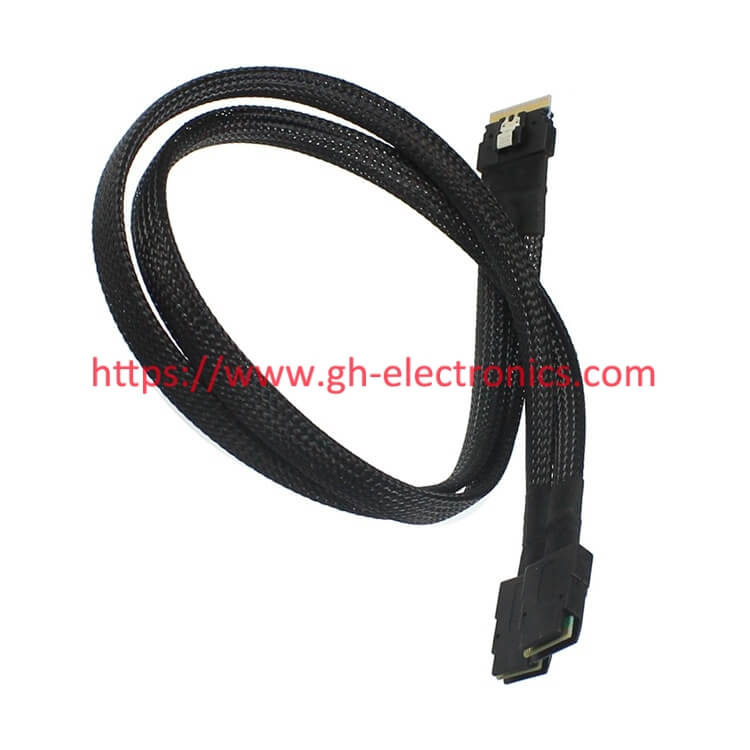

This cable features one SFF-8654 (8i) connector on the host end—commonly found on newer SAS HBAs and RAID controllers—and splits into two SFF-8087 (Mini SAS 36-pin) connectors on the device end. It allows a single SFF-8654 port (supporting 8 lanes of SAS) to connect to two separate Mini SAS ports, each supporting 4 lanes (4i). This breakout configuration is ideal for connecting to storage enclosures, backplanes, or other devices with SFF-8087 interfaces.
Key Features
. Modern Connectivity: Bridges the newer SFF-8654 (8i) interface to two widely-used SFF-8087 (4i) ports.
. High Bandwidth: Supports SAS 3.0 (12 Gbps) speeds per lane, ensuring high-throughput data transfer for demanding storage applications.
. Secure & Reliable: Features robust locking mechanisms on all connectors to prevent accidental disconnection in rack-mounted environments.
. Flexible Deployment: Ideal for connecting a single controller port to multiple drive enclosures or splitting bandwidth across two separate storage targets.
. Enterprise Quality: Built with durable materials and shielding for stable operation in 24/7 data center use.
Common Applications
. Connecting SAS HBAs or RAID cards with SFF-8654 ports to drive backplanes or expanders with SFF-8087 ports.
. Splitting one x8 SAS host port into two separate x4 links for flexible storage topologies.
. Upgrading or adapting legacy SFF-8087-based storage enclosures to work with newer SFF-8654-equipped servers or controllers.
. Data center, server room, and high-performance storage array deployments.
How It Works
1. The SFF-8654 connector plugs into the host controller (commonly found on SAS 12 Gbps HBAs).
2. The two SFF-8087 connectors attach to compatible devices—such as a drive backplane, JBOD enclosure, or SAS expander.
3. The cable carries 8 lanes of SAS/SATA traffic, split into two groups of 4 lanes each.
4. The system recognizes the connected devices, allowing for immediate storage configuration and use.
Simplify Your Storage Connectivity
This SFF-8654 to dual SFF-8087 breakout cable is a practical, high-performance solution for integrating modern SAS controllers with existing Mini SAS-based storage infrastructure. Ensure compatibility, maximize bandwidth, and streamline your server storage connections.
