Place of Origin: Guangdong, China |
Brand Name: GuangHui Electronics / OEM |
|
Cable spec: SAS Cables UL20744 28~32AWG |
Application: computer servers, Server storage device |
|
Connector1: SFF-8654 72P |
Connectors 2: SFF-8612 42P |
|
Color: Black / Optional |
Wire: UL 1061 STRANDED |
|
Cable length: 100CM / Optional |
Weight: 0.056kg |
|
Certification: RoHS, CE |
Process: injection molding |
|
Samples: available |
Fire protection: VW-1 |
The

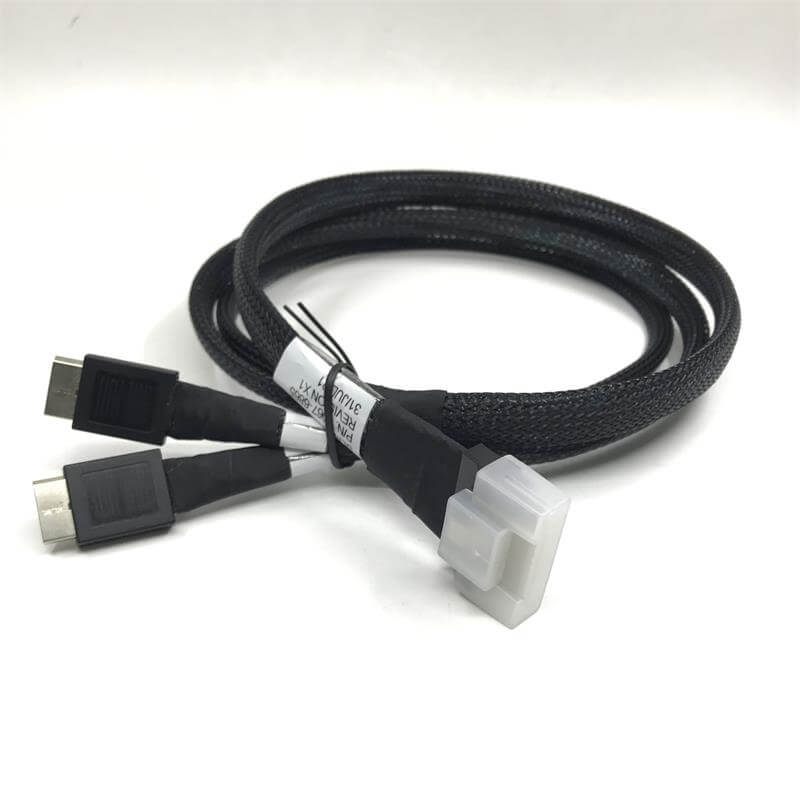

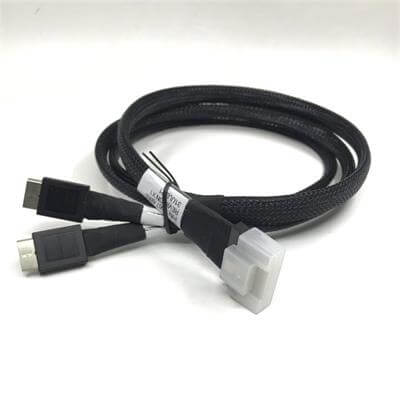

SFF-8654 x8 to 2x SFF-8612 x4 PCIE SAS Cable is a premium breakout cable engineered for high-performance enterprise server and storage systems, bridging the gap between high-bandwidth SlimSAS SFF-8654 interfaces and dual HD Mini SAS SFF-8612 ports. As a critical connectivity component for data centers and cloud infrastructure, it enables efficient signal distribution from an 8-lane controller to two independent 4-lane devices, balancing bandwidth, density, and reliability for mission-critical data transmission.

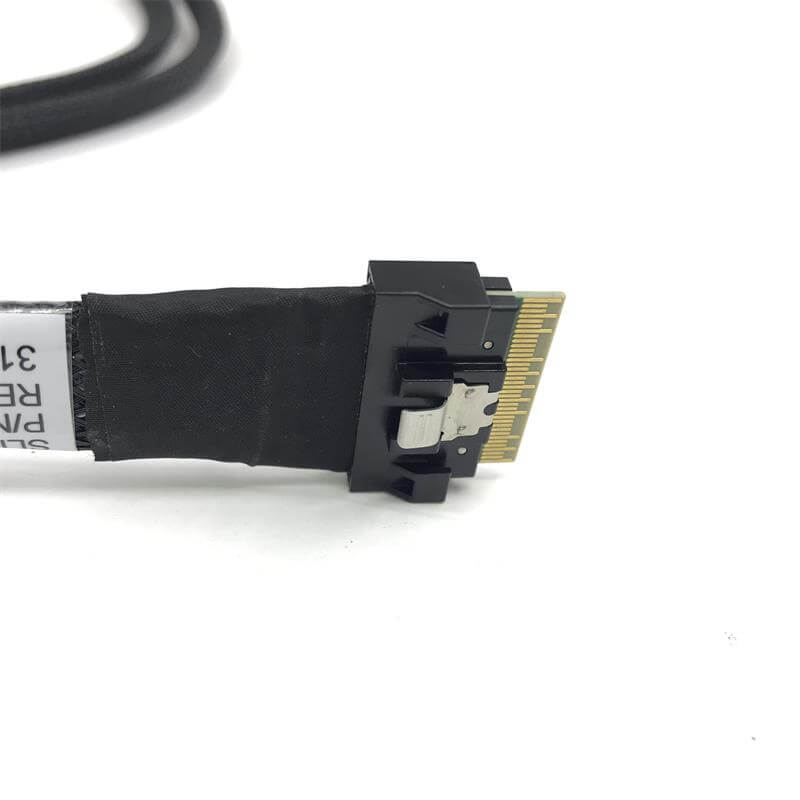

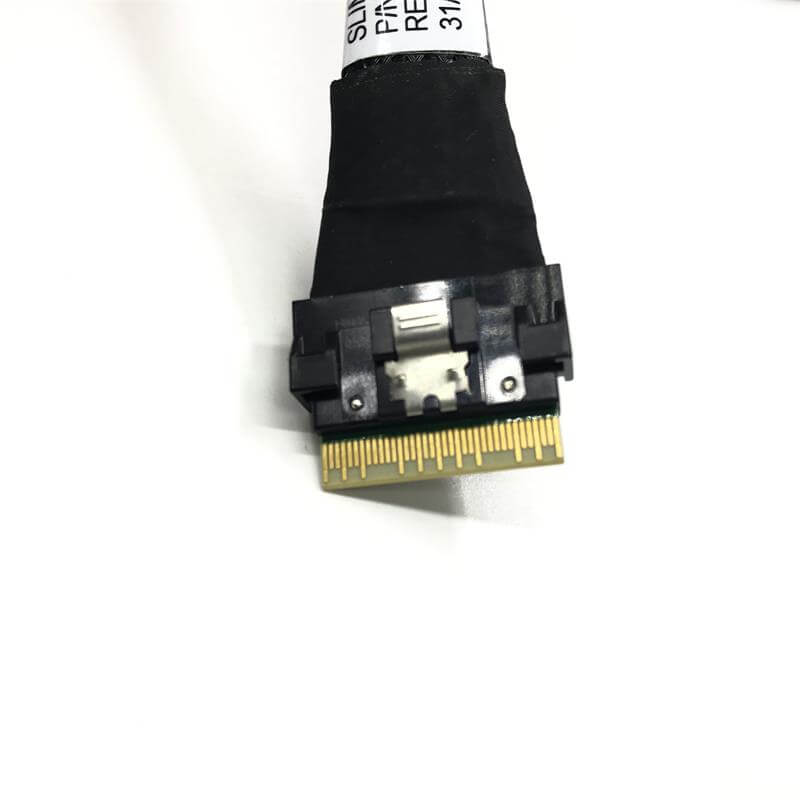

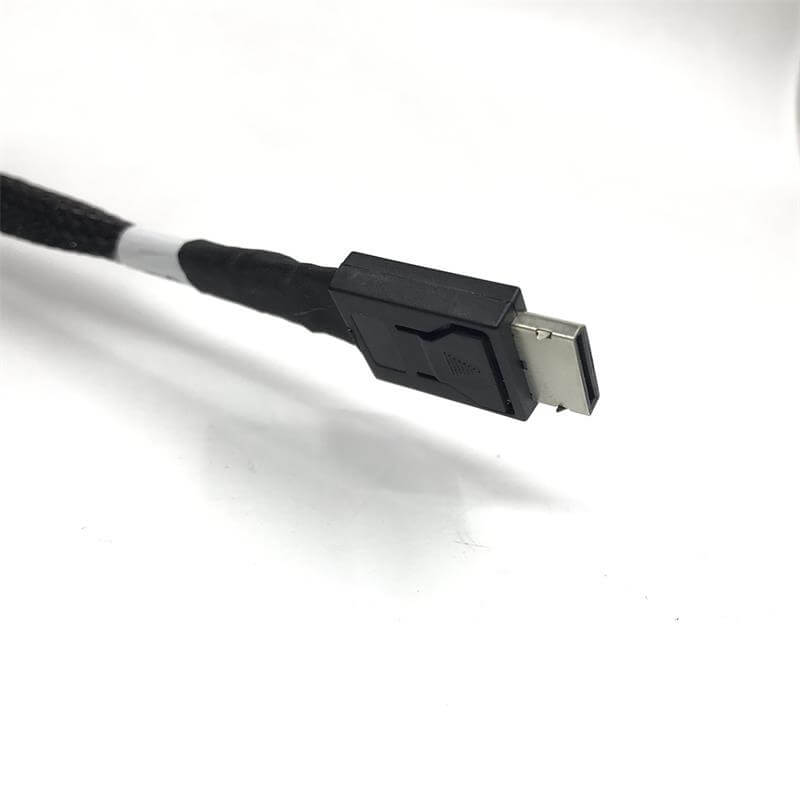

Fully compliant with PCIe 4.0, SAS 4.0, and backward compatible with PCIe 3.0/SAS 3.0 protocols, this cable supports a maximum data transfer rate of 24 Gbps per lane, delivering exceptional throughput for data-intensive tasks like real-time analytics, large-scale backups, and NVMe storage operations. It features a 76-pin SFF-8654 male connector (8-lane) on one end and two 36-pin SFF-8612 male connectors (4-lane each) on the other, with 100-ohm impedance matching and high-quality 32AWG silver-plated copper conductors to ensure minimal signal loss and crosstalk. Multi-layer EMI shielding—combining aluminum tape and tinned copper braid—effectively resists electromagnetic interference in dense server racks, guaranteeing stable performance even under peak loads.
Designed for universal enterprise compatibility, this PCIE SAS cable seamlessly integrates with mainstream RAID controllers, HBA cards, SSD backplanes, and JBOD enclosures. Its compact form factor is optimized for 1U/2U rack-mounted servers, with a slim and flexible design that facilitates easy routing without obstructing airflow—critical for thermal management in high-density setups. The connectors are equipped with secure locking latches to prevent accidental disconnections during maintenance or vibration, while gold-plated contacts enhance corrosion resistance and support over 250 mating cycles for long-term 24/7 operation. Available in lengths from 0.5m to 1m, it meets diverse internal connection needs of server and storage architectures.
For IT professionals and system integrators, this SFF-8654 to dual SFF-8612 cable stands out as a cost-effective, high-performance solution. It simplifies storage expansion by splitting a single 8-lane interface into two 4-lane ports, eliminating the need for additional controllers and reducing wiring complexity. RoHS compliant and built to operate stably in a temperature range of -40℃ to 85℃, it adapts to harsh data center environments. Backed by rigorous compatibility testing and a 2-3 year warranty, it provides peace of mind for mission-critical applications, making it the ideal choice for upgrading or building high-density PCIE SAS storage systems.
Keywords: SFF-8654 to SFF-8612 Cable, 8x to 2x4x PCIE SAS Cable, Enterprise Breakout Cable, SlimSAS to HD Mini SAS Cable, 24Gbps SAS Cable, Server Storage Cable
