Place of Origin: Guangdong, China |
Brand Name: GuangHui Electronics / OEM |
|
Cable type: MiniSAS HD Cables |
Application: computer servers, Server storage device |
|
Connector1: SFF 8087 |
Connectors 2: SFF 8087 |
|
Color: Black / Optional |
Conductor type: 30AWG Tinned copper Impedance 100 ohm |
|
Cable length: 50CM / Optional |
Weight: 0.056kg |
|
Certification: RoHS, CE |
Process: injection molding |
|
Samples: available |
Fire protection: VW-1 |
The

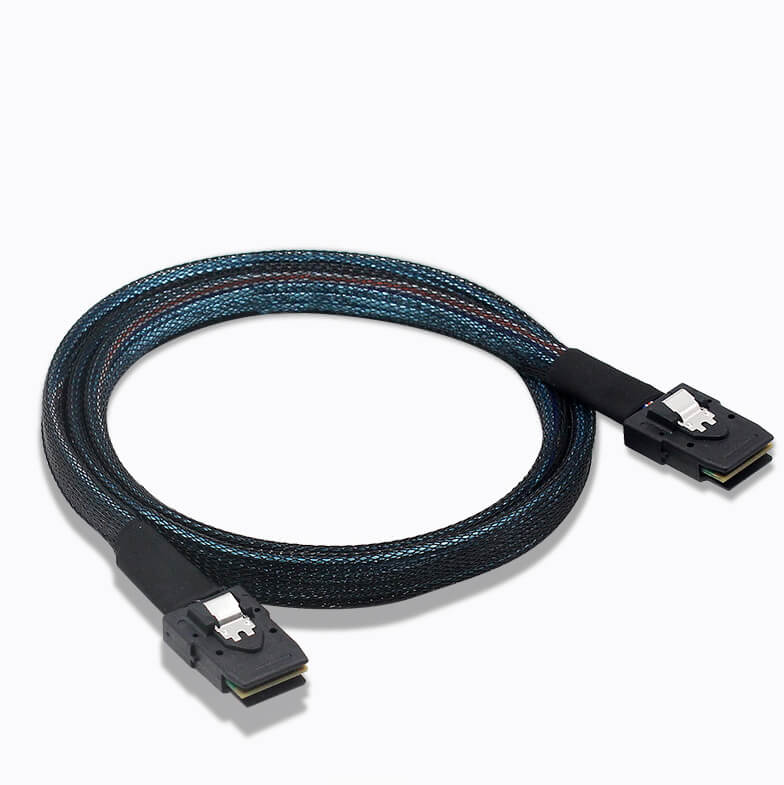

Mini SAS Cable SFF-8087 to SFF-8087 Built-In 36P Server SATA Cable 3.0 is a core connectivity accessory for enterprise servers and storage systems, designed to enable seamless data transmission between SAS controllers, RAID cards, and SATA/SAS storage devices. As a built-in 36-pin Mini SAS cable compliant with SAS 3.0 standards, it delivers reliable performance for mission-critical applications in data centers, workstations, and rack-mounted server setups.

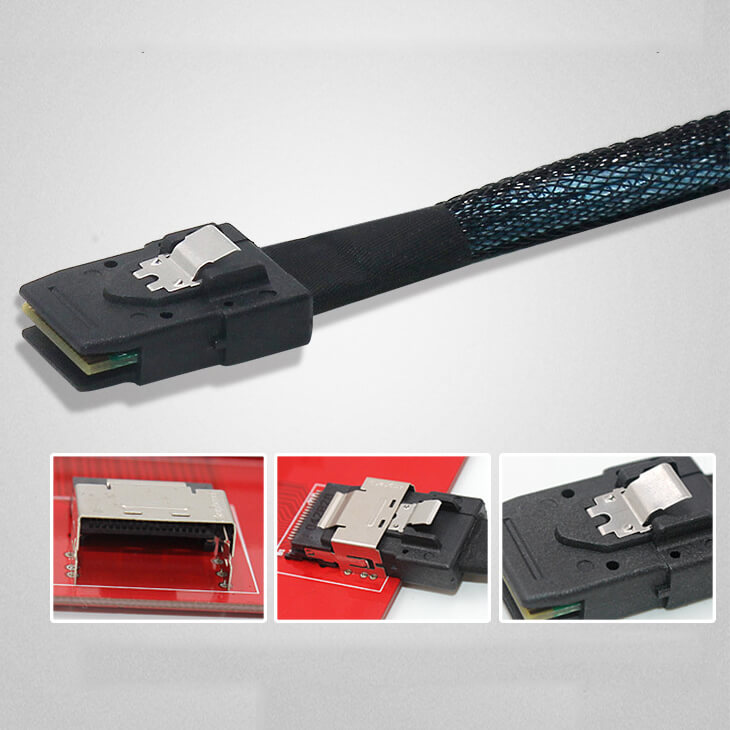

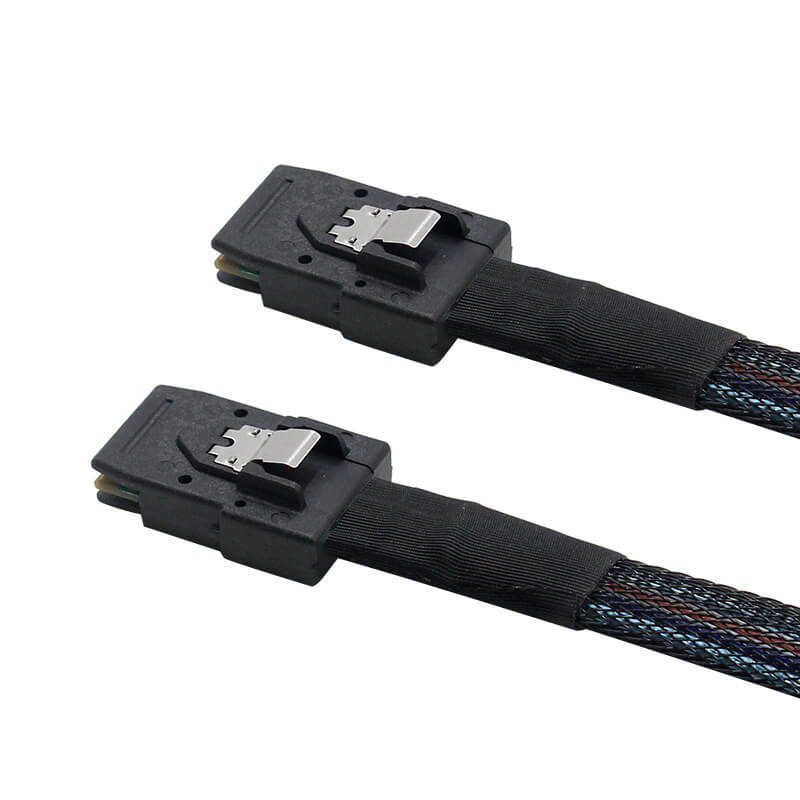

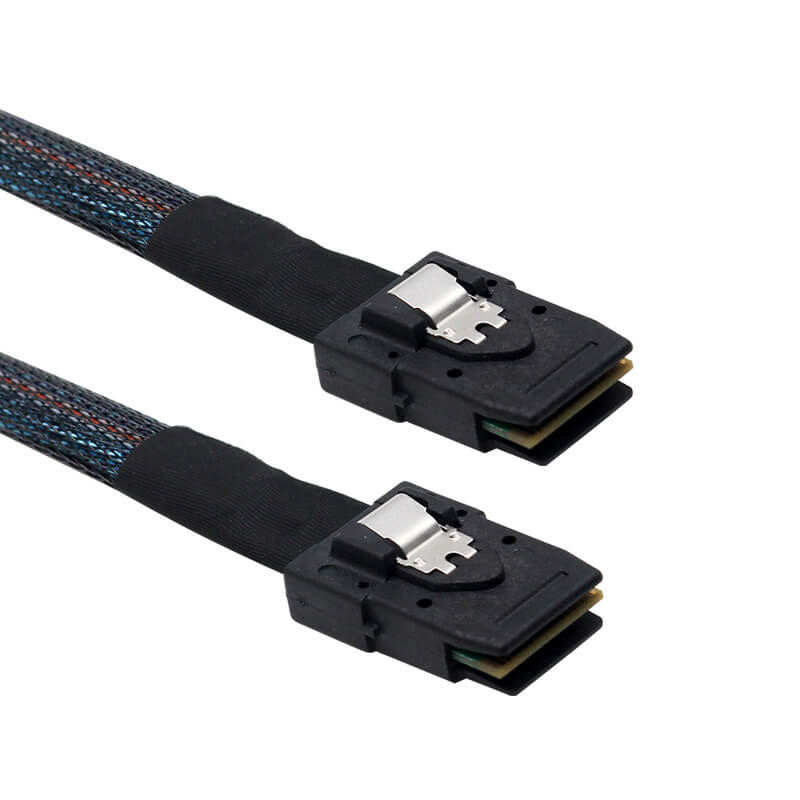

Engineered for enterprise-grade reliability, this cable features 36-pin SFF-8087 male connectors on both ends—an industry-standard internal Mini SAS interface widely adopted in server hardware. The built-in design ensures a snug, space-saving fit inside server cases, avoiding wiring clutter and optimizing airflow for thermal management. Fully compliant with SAS 3.0 specifications, it supports data transfer rates of up to 12 Gbps, doubling the throughput of SAS 2.0 cables and efficiently handling large-volume data tasks such as backups, file transfers, and real-time analytics.
Crafted with high-quality 30AWG bare copper conductors and 100-ohm impedance matching, the SFF-8087 to SFF-8087 Mini SAS Cable guarantees superior signal integrity with minimal loss and crosstalk. Its multi-layer EMI shielding—combining aluminum polyester tape and tinned copper braid—effectively resists electromagnetic interference in dense server racks, ensuring stable transmission even under peak loads. The connectors are equipped with secure locking latches, preventing accidental disconnections caused by vibration or routine maintenance, while gold-plated contacts enhance corrosion resistance for 24/7 continuous operation.
This 36P built-in Mini SAS cable offers broad compatibility with SATA 3.0, SAS 2.0/3.0 devices, including RAID controllers, HBA cards, SATA hard drives (HDDs), solid-state drives (SSDs), and storage backplanes. It is ideal for internal server connections, such as linking SAS controllers to storage arrays or expanding SATA-based storage systems without compromising speed. The flexible PVC jacket allows easy routing inside compact server cases, making it suitable for 1U/2U rack-mounted servers and custom workstation builds.
For IT professionals and system integrators, this SAS 3.0 Mini SAS cable stands out for its durability, compatibility, and cost-effectiveness. It supports backward compatibility with legacy SAS/SATA devices, eliminating the need for costly hardware upgrades when upgrading server infrastructure. RoHS compliant and built to operate stably in a temperature range of -40℃ to 85℃, it adapts to harsh data center environments. Backed by rigorous testing, it provides peace of mind for mission-critical storage and server applications.
Keywords: Mini SAS Cable SFF-8087, SFF-8087 to SFF-8087 Cable, 36P Built-In Server Cable, SAS 3.0 SATA Cable, Mini SAS Server Cable, Enterprise Storage Cable
