Place of Origin: Guangdong, China |
Brand Name: GuangHui Electronics / OEM |
|
Cable type: MiniSAS HD Cables |
Application: computer, PC... |
|

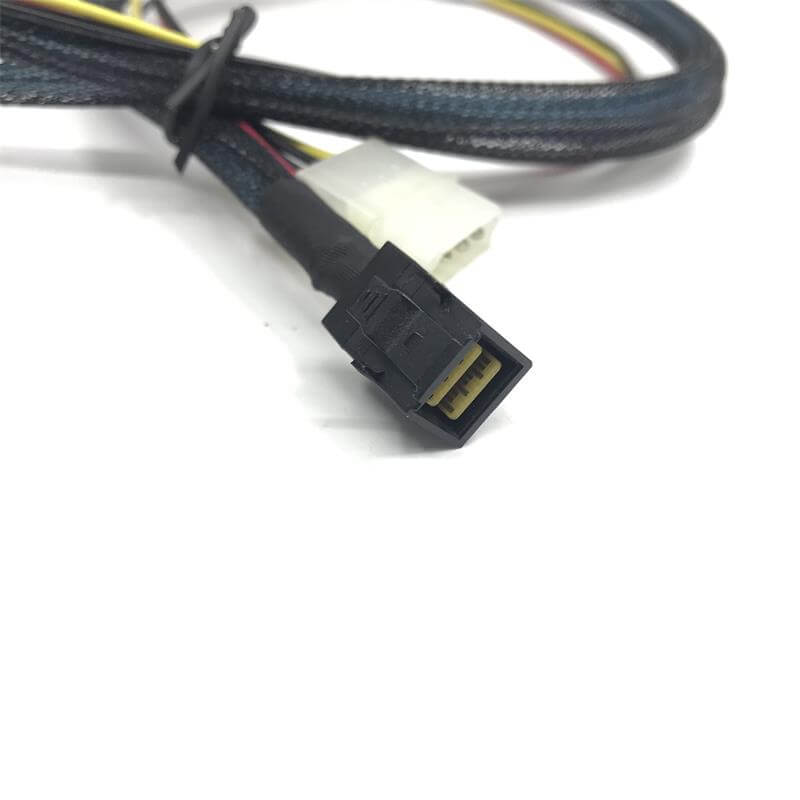

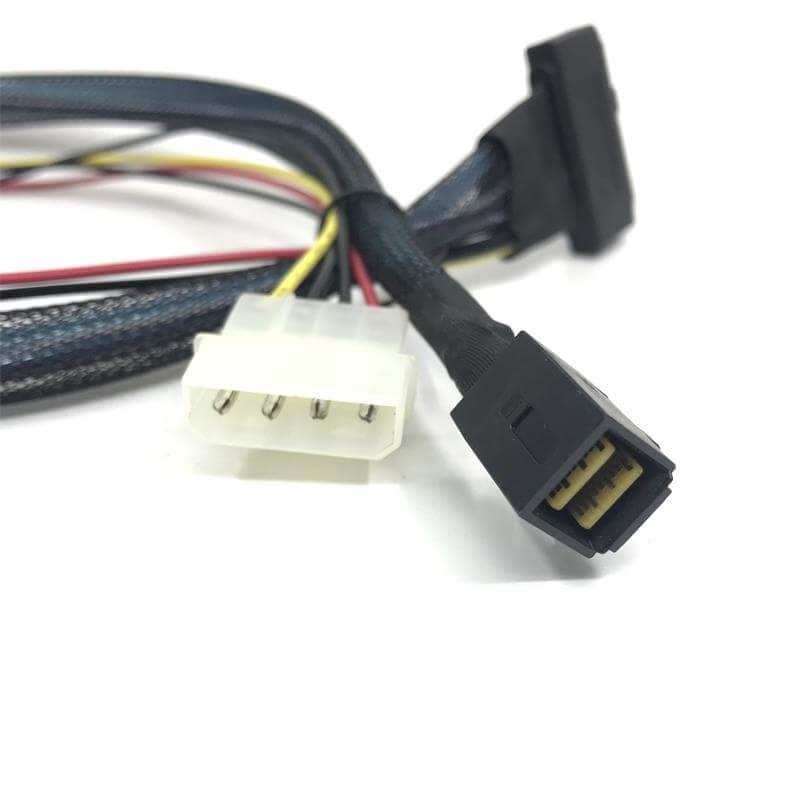

Connectors: Host - MiniSAS HD (SFF-8643) with 4-pin power |

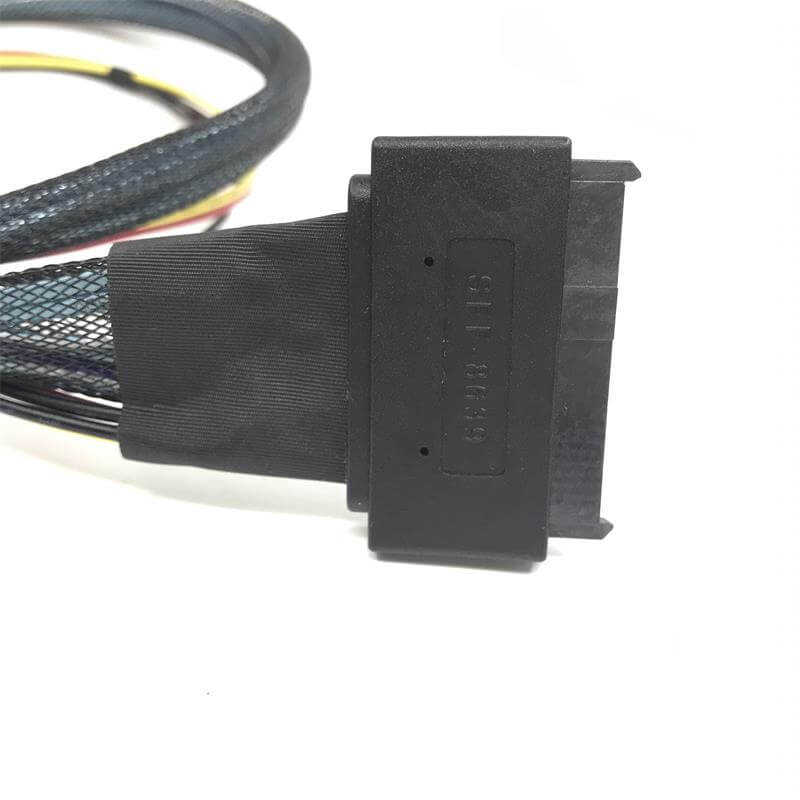

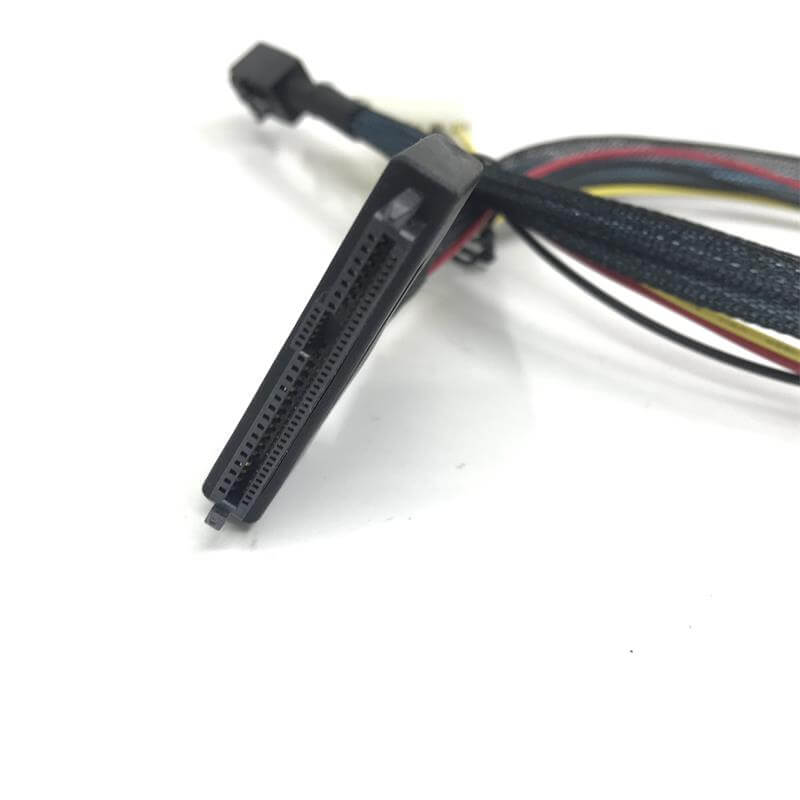

Connectors (Other Side): Target - U.2 PCIE x4 (SFF-8639) |
|
Color: Black / Optional |
Cable spec: 30AWG BLUE/WHITE/RED/WHITE |
|
Cable length: 55CM / Optional |
Cable spec: 30AWG*2C+2D+AL+MYLAR 100+-5 ohm |
|
Certification: RoHS, CE |
Conductor Material: Copper |
|
Samples: available |
MOQ: 100PCS |
If you need to connect a U.2 NVMe SSD (using SFF-8639) to a MiniSAS HD (SFF-8643) port on your PCIe card or motherboard, this dedicated MiniSAS HD to U.2 adapter cable is the essential solution. Designed for reliability and performance, it includes a separate power cable to ensure your high-speed drive operates correctly.
Product Overview

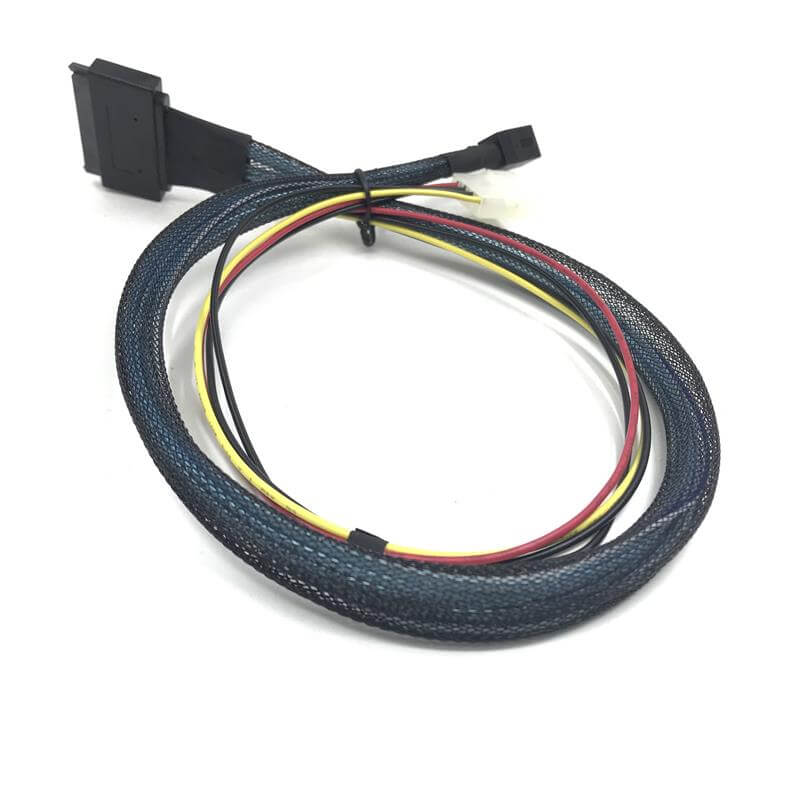

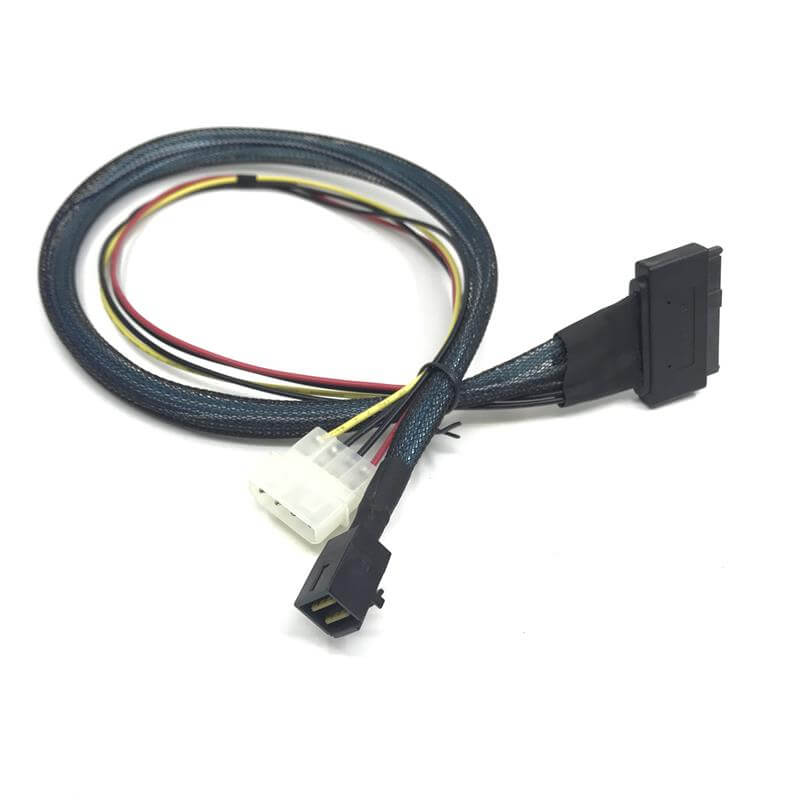

This adapter cable provides a direct bridge from a MiniSAS HD (SFF-8643) host port to a U.2 (SFF-8639) device port. The U.2 interface is commonly used for enterprise and high-performance NVMe SSDs. The cable supports PCI Express (PCIe) data signals and includes a separate SATA power cable to deliver the necessary power to the connected SSD, as U.2 drives often require more power than the MiniSAS HD port can provide alone.
Key Features
. Direct Connection: Converts MiniSAS HD (SFF-8643) to U.2 (SFF-8639) without needing an extra host adapter card.
. Included Power Cable: Comes with a SATA power cable to ensure stable and adequate power delivery to your U.2 NVMe SSD.
. High-Speed Performance: Supports PCIe 3.0/4.0 speeds (depending on model), enabling fast data transfer for NVMe storage.
. Secure Locking Mechanism: Features secure latches on both connectors to prevent accidental disconnection.
. Flexible and Durable: High-quality cable allows for neat routing and reliable operation in servers, workstations, or storage arrays.
Common Applications
. Adding U.2 NVMe SSDs to servers or workstations with available MiniSAS HD ports.
. Connecting U.2 drives to HBA or RAID cards that feature MiniSAS HD connectors.
. Expanding high-performance storage in systems with built-in SFF-8643 ports.
How to Use
1. Ensure your system is powered off.
2. Plug the SFF-8643 (MiniSAS HD) end of the cable into your host controller or motherboard.
3. Connect the SFF-8639 (U.2) end to your NVMe SSD.
4. Attach the provided SATA power cable from your power supply to the drive's power input.
5. Power on the system. The drive should be detected by the OS, and drivers will typically load automatically.
Order Your MiniSAS HD to U.2 Adapter Today
Simplify your high-performance storage setup. This MiniSAS HD (SFF-8643) to U.2 (SFF-8639) adapter with power cable is the reliable, plug-and-play solution you need for your NVMe storage expansion.
