Customized Cables

Molex 51021-0500 1.25mm Pitch Cable, UL2464 26AWG1P+26AWG3C+AL+B black PVC Jacket Cable Assembly

Product ID：Customized Cables
Skype：+86 137 5185 9234
Phone: +86 137 5185 9234
Tel: +86 137 5185 9234
Email: sales2@gh-electronics.com
Time: 2024-05-01
INQUIRY

Place of Origin: Guangdong, China	Brand Name: GH / OEM
Product Category: Molex Cable	Application: Industry,Auto,Electronics...
Rated Temperature: 80	Cable：UL2464 26#1P+26#3C+AL+B black PVC Jacket
Color: Black/ Optional	Housing：Molex 5P HSG P/N:51021-0500
Cable Length: 0.5 Meter / Optional	Terminal：Molex terminal P/N:50079-8000, ID5.3*OD8.5 R-type
Certification: UL, RoHS2.0, CE	Pitch: 1.25mm
Flammability: 94V-0	Circuits (maximum): 5
Samples: Available

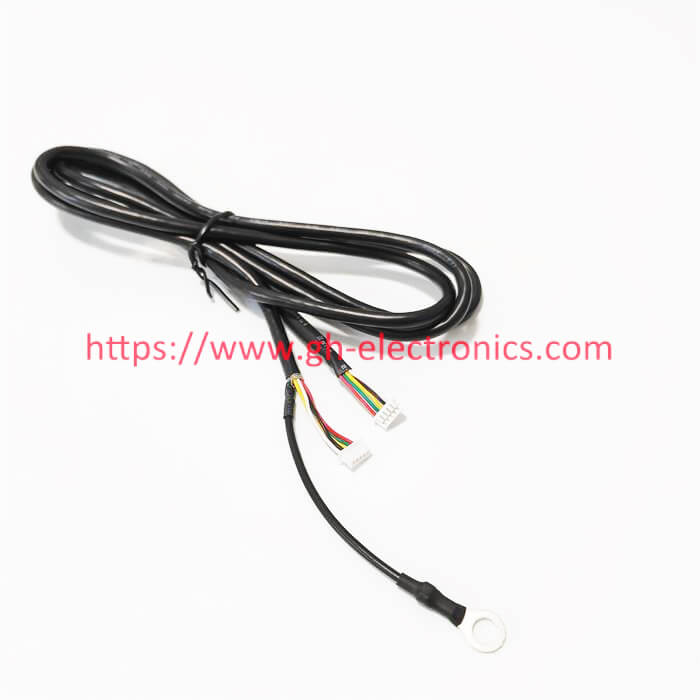

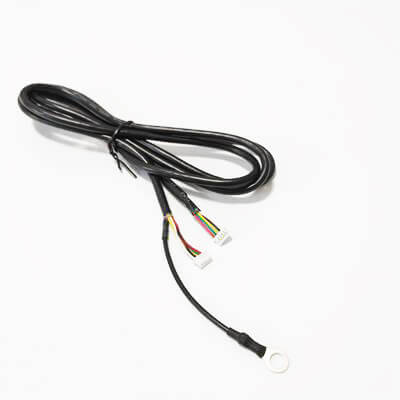

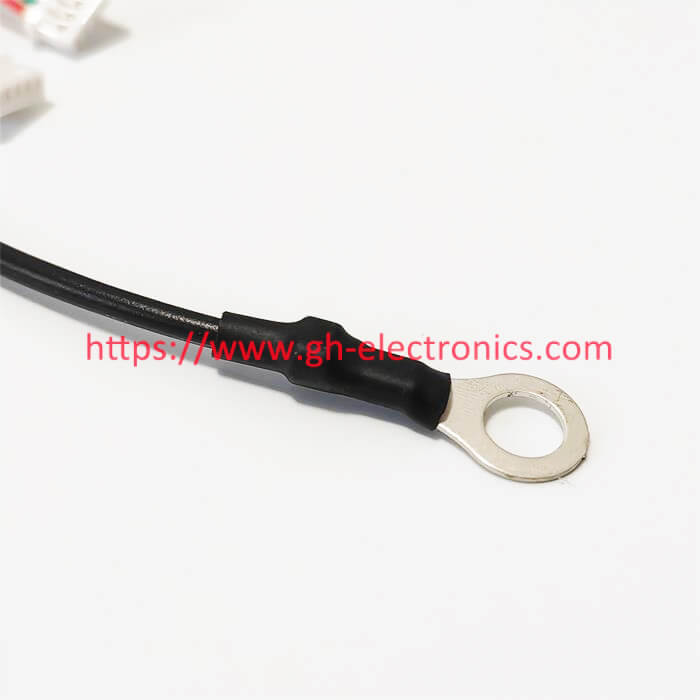

This Molex 51021-0500 cable is used UL2464 26#*1P+26#*3C+AL+B black PVC Jacket cable and with 2 Molex 5P HSG P/N:51021-0500 housing at both end. Ternimal is used Molex 50079-8000 and ID5.3*OD8.5 R-type terminal. This connector houses the multi-stranded wires that comprise the cable's inner core.

Inside, the cable boasts multiple colored wires, including green, white, red, black and yellow. These wires are braided or twisted together to maintain their structural integrity and reduce interference.

This Molex cable is a reliable choice for connecting various electronic devices and mechanical components, thanks to its robust design and high-quality materials.

Dongguan Guanghui Electronic Technology Co., Ltd. is a high-tech enterprise specializing in wire harnesses and cable assemblies, with more than 18 years of R&D experience. We can provide custom cables soluations for you.
