Molex Plug 1.25mm Pitch 4P 5P Cable Assembly Length 1500MM

Product ID：Customized Cables
Skype：+86 137 5185 9234
Phone: +86 137 5185 9234
Tel: +86 137 5185 9234
Email: sales2@gh-electronics.com
Time: 2021-05-03
INQUIRY

Place of Origin: Guangdong, China	Brand Name: GH / OEM
Product Category: Molex 1.25mm Pitch Cable Assembly	Application: Industry,Auto,Electronics...
Rated Temperature: 80	Cable: UL2464 26#*5C(RED,BLACK,BLUE ,GREEN,GRAY) OD4.2 Black PVC Jacket
Color: Black/ Optional	Housing: CI4405S0000 Or Equivalent
Cable Length: 1.5 Meter / Optional	Terminal: CI44T011PP0 Or Equivalent
Certification: UL, RoHS2.0, CE	Pitch: 1.25mm
Flammability: 94V-0	Circuits (maximum): 5
Samples: Available

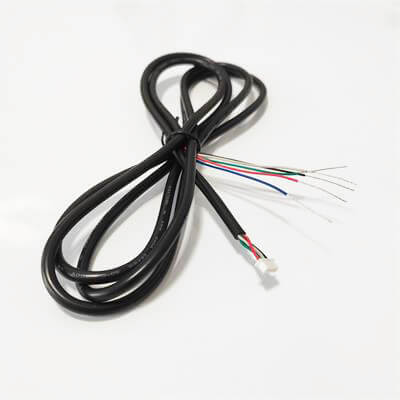

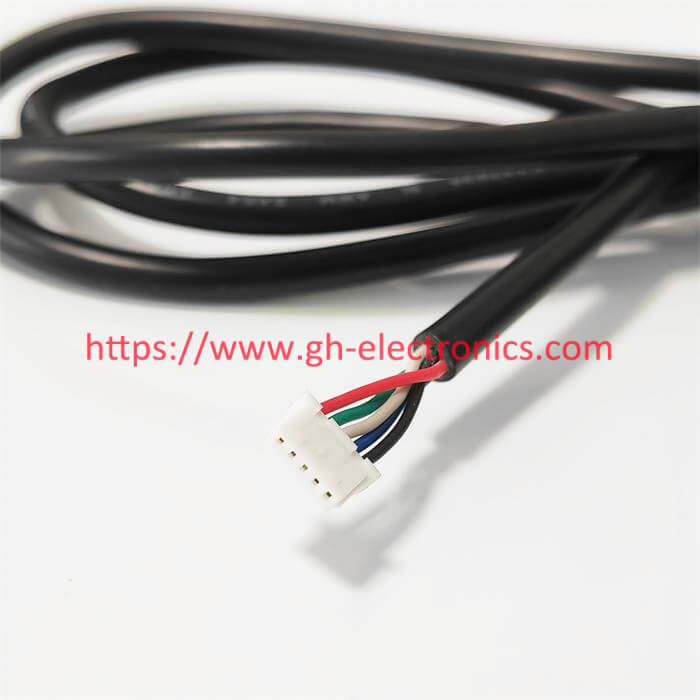

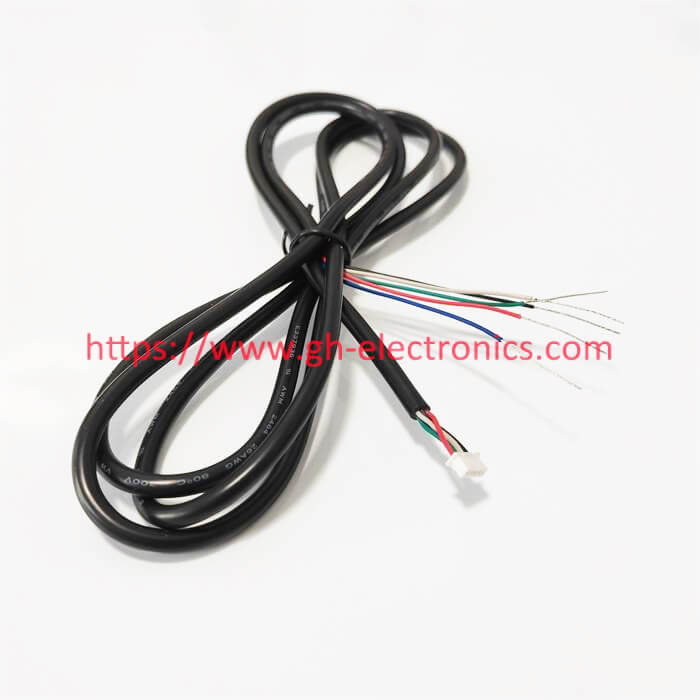

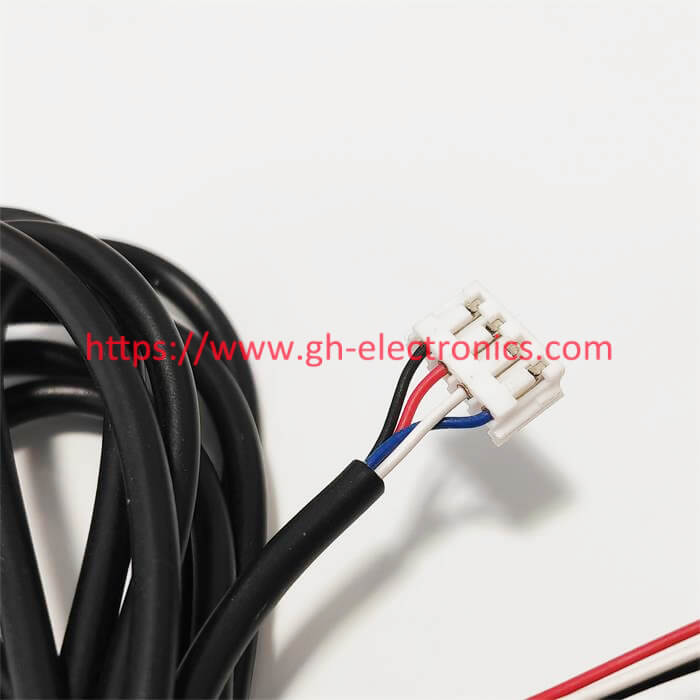

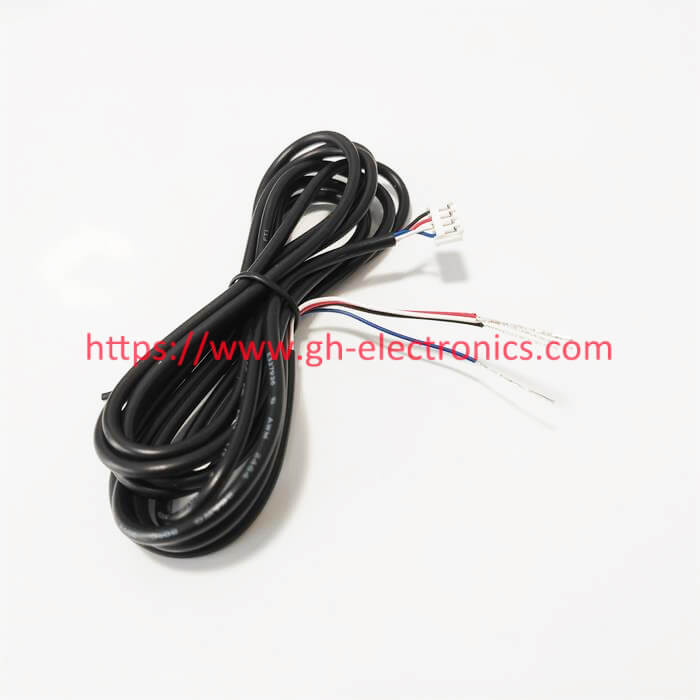

This Molex 1.25mm Pitch Cable Assembly is used UL2464 26#*5C(RED,BLACK,BLUE ,GREEN,GRAY)
OD4.2 Black PVC Jacket cable, ternimal is used CI44T011PP0 or equivalent terminal. This connector houses the multi-stranded wires that comprise the cable's inner core.

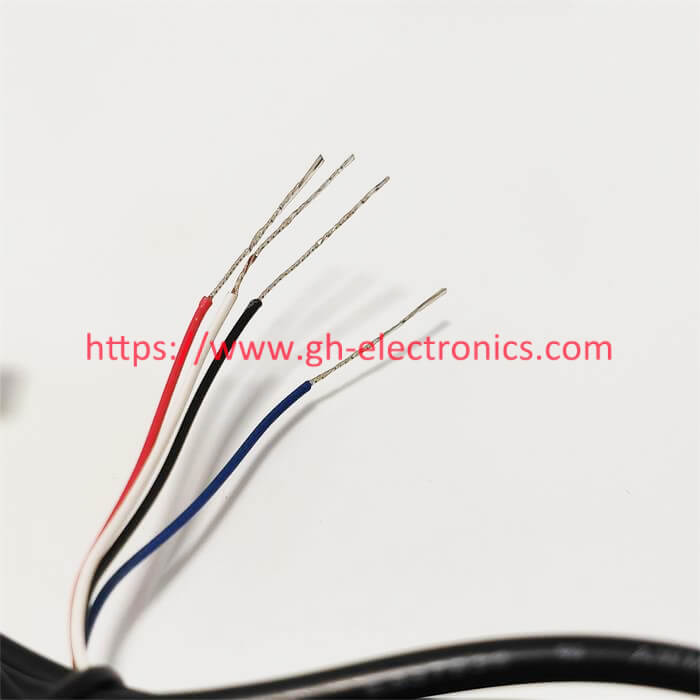

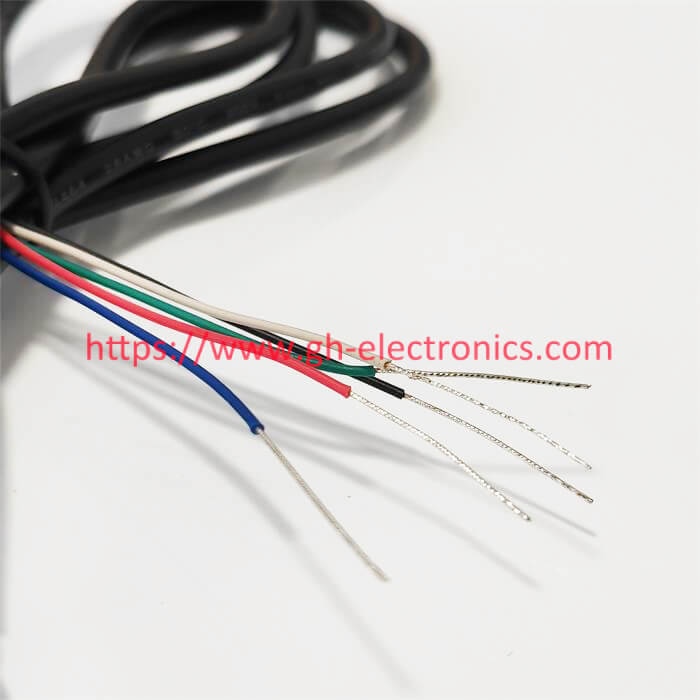

Inside, the cable boasts multiple colored wires, including green, white, red, black and yellow. These wires are braided or twisted together to maintain their structural integrity and reduce interference.

This Molex cable is a reliable choice for connecting various electronic devices and mechanical components, thanks to its robust design and high-quality materials.

Dongguan Guanghui Electronic Technology Co., Ltd. is a high-tech enterprise specializing in wire harnesses and cable assemblies, with more than 18 years of R&D experience. We can provide custom cables soluations for you.
