Customized Cables

Micro-Fit Overmolded Cable Assembly, Molex 430250400 Connector Male To Open Cable

Product ID：Customized Cables
Skype：+86 137 5185 9234
Phone: +86 137 5185 9234
Tel: +86 137 5185 9234
Email: sales2@gh-electronics.com
Time: 2024-05-09
INQUIRY

Place of Origin: Guangdong, China	Brand Name: GH / OEM
Product Category: Micro-Fit Overmolded Cable Assembly	Application: Industry,Auto,Electronics...
Rated Temperature: 80	Cable: UL2725 28AWG*4C+AL+B OD:3.2MM BLACK PVC
Color: Black/ Optional	Housing: 43025-0400 MOLEX
Cable Length: 1.5 Meter / Optional	Terminal: 43030-0001 MOLEX
Certification: UL, RoHS2.0, CE	Pitch: 3.0 mm
Flammability: 94V-0	Circuits (maximum): 4
Samples: Available

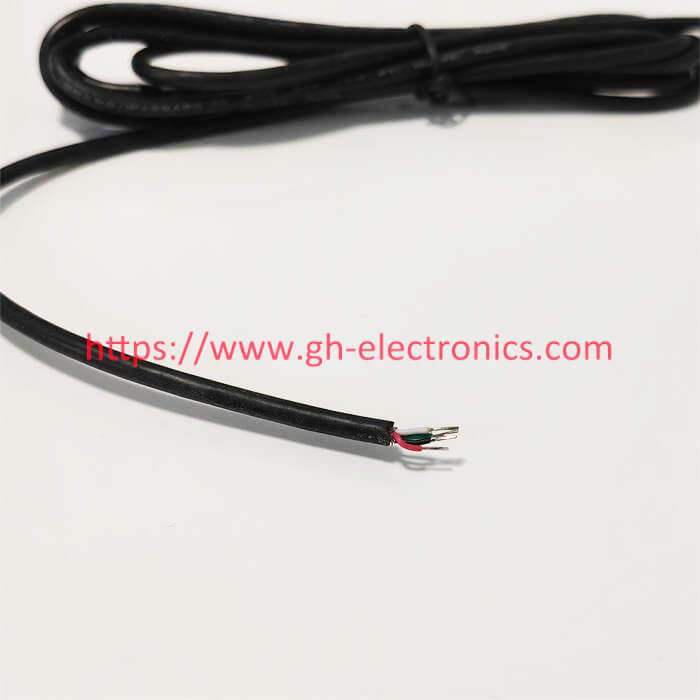

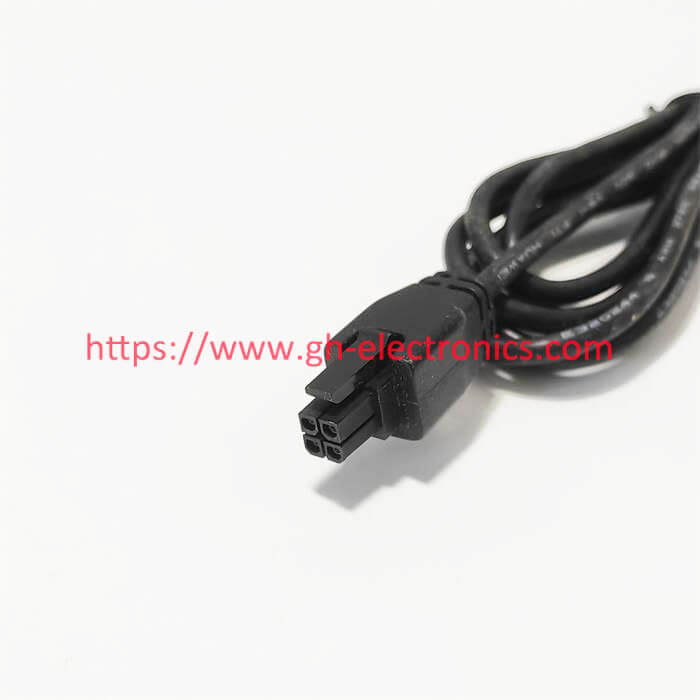

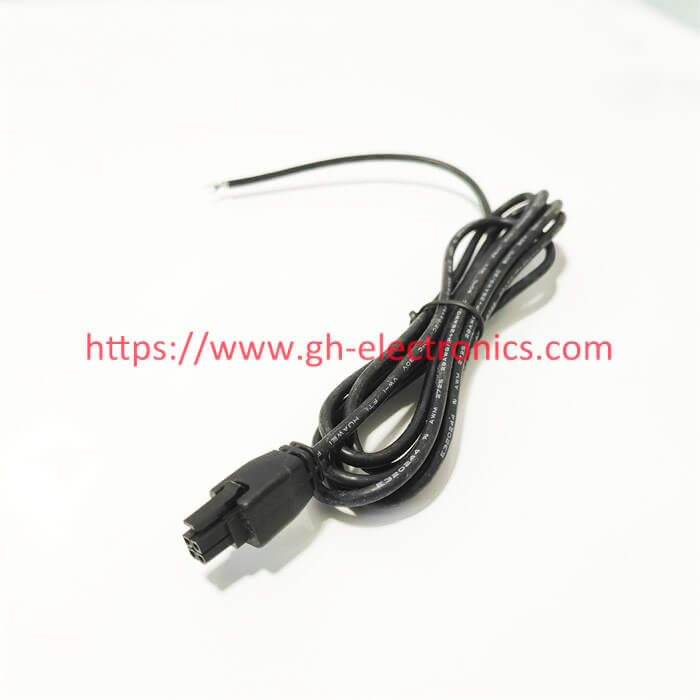

This Is A Molex Micro-Fit Molex 430250400 Connector Male To Open Overmolded Cable Assembly, Cable Spec Is UL2725 28AWG*4C+AL+B OD:3.2MM BLACK PV Cable, Cable Specification and Length Is Optional.

This micro-fit overmolded cable assembly can carry 8.5A of current, making them ideal for many signal and power applications. They are set in fully polarized housings to prohibit accidental mismating and feature positive latching on the housings to prevent accidental disconnects. Molex Micro-Fit Overmolded Cable Assemblies also feature a locking tang on the terminals to secure them in the housings.

Dongguan Guanghui Electronic Technology Co., Ltd. is a high-tech enterprise specializing in wire harnesses and cable assemblies, with more than 18 years of R&D experience. We can provide custom cables soluations for you.
