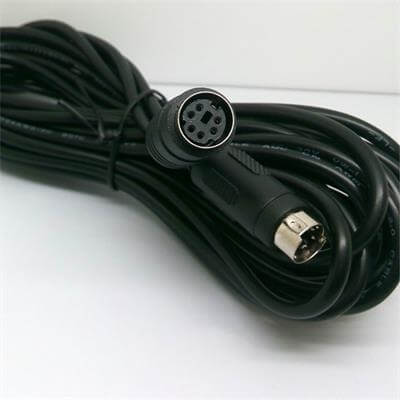

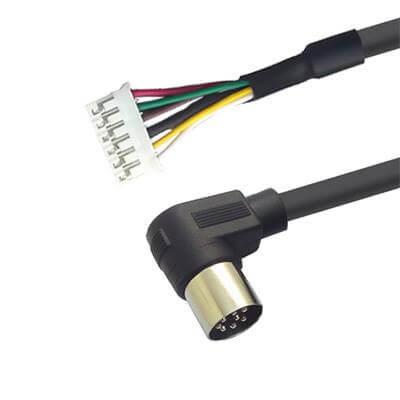

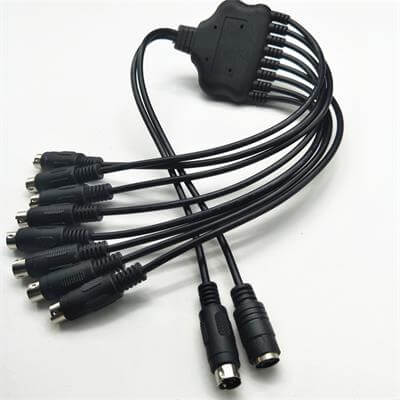

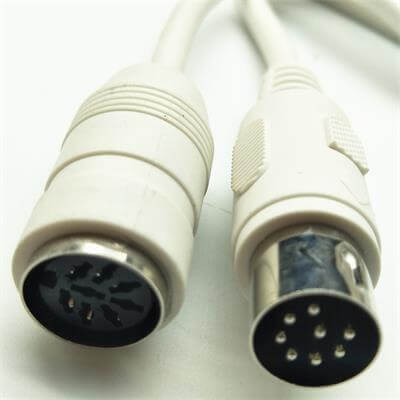

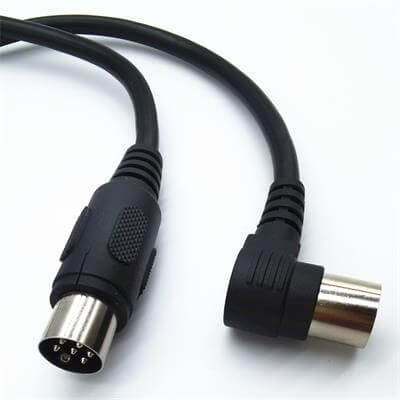

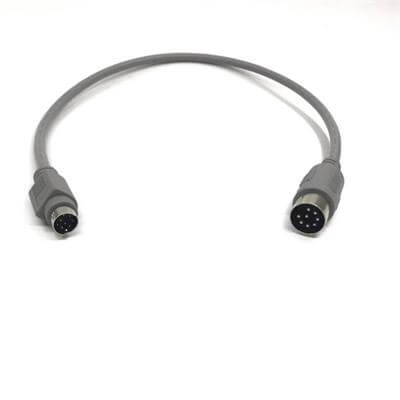

Mini Din Cables
DIN cables are designed to meet the requirements for robust and reliable electrical connections in various applications. They are named after the German standard that governs their design, dimensions, materials, and performance. DIN cables are widely used in audio, video, data, power, and signal transmission applications.
Types and Configurations
DIN cables come in various types and configurations, including:
1. Full-Size DIN Connectors: These connectors typically have a circular shape and contain 3 to 14 pins, each with a diameter of 13.2 millimeters. They are used in a wide range of applications, including audio, video, data, and power transmission.
2. Mini-DIN Connectors: Mini-DIN connectors are smaller than full-size DIN connectors and have pins arranged in a horizontal row rather than a circular pattern. They are commonly used in S-video connections, PS/2 mice and keyboards, and other applications.
3. Circular DIN Connectors: These connectors have a circular shape and are often used in high-pressure or harsh environment applications where reliability and durability are critical.
Applications
1. Audio and Video Equipment: DIN cables are commonly used to connect audio and video equipment, such as amplifiers, speakers, and televisions.
2. Computers and Peripherals: They are also used to connect computers and peripherals, such as keyboards, mice, and printers.
3. Industrial and Commercial Settings: DIN cables are often found in industrial and commercial settings, where they are used to connect sensors, actuators, and other devices within automation systems.
Guanghui Electronics has over 19 years of experience in customizing DIN cable assembly, welcome to inquire!
